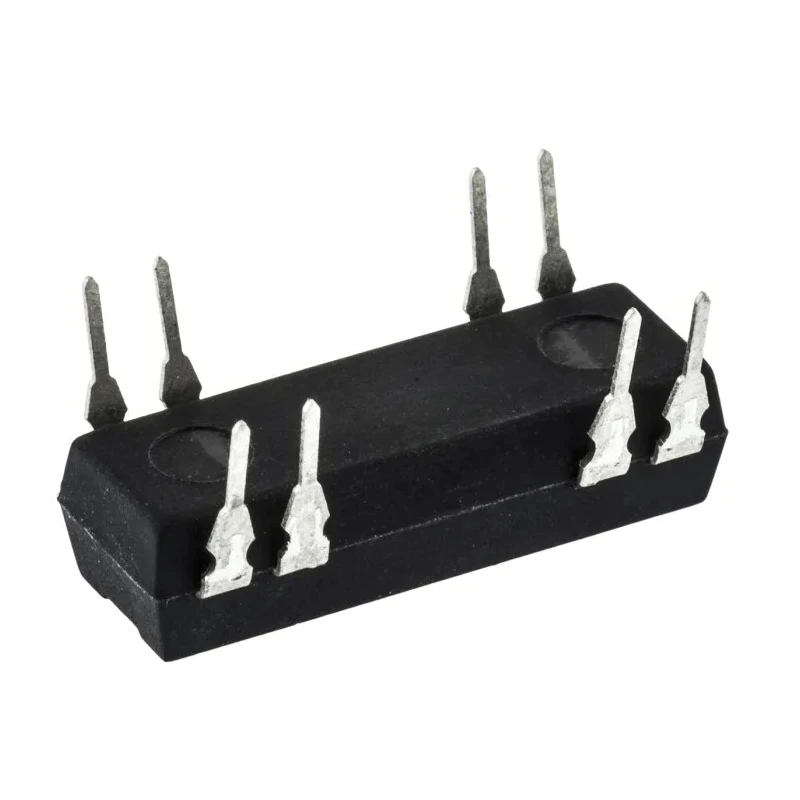

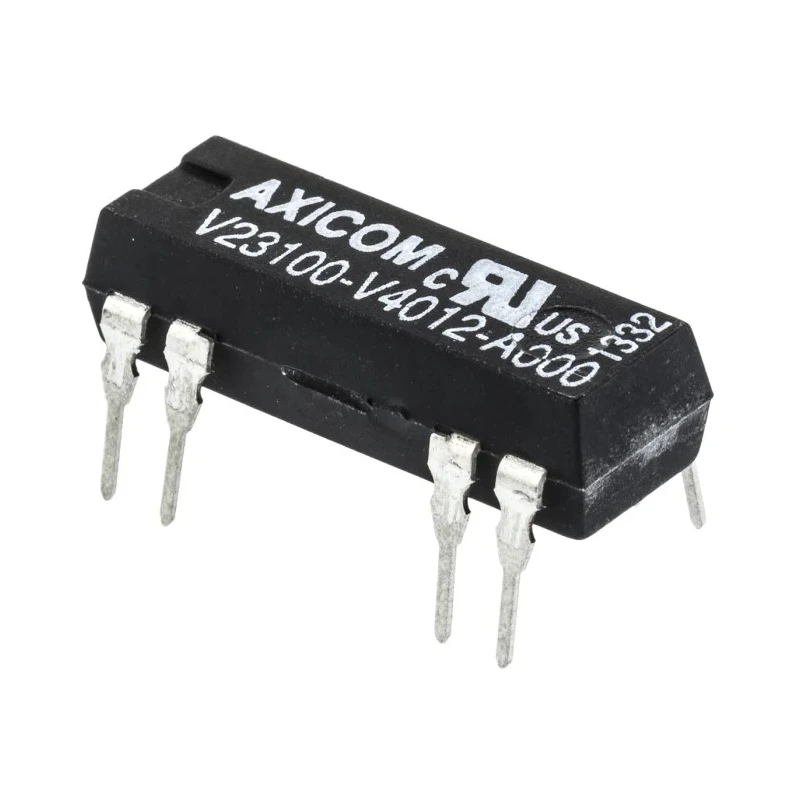

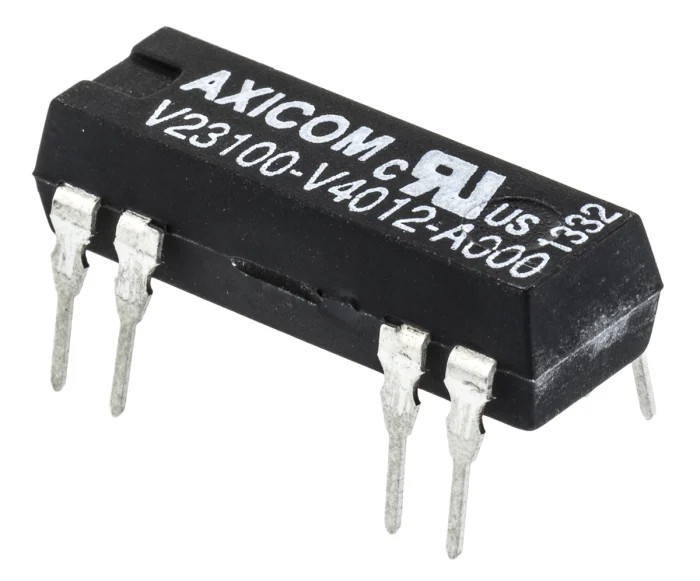

TE Connectivity PCB Reed Relay, 12V DC Coil, SPST Contact Configuration, 200V DC Max, 1A Max, 1000 Ω Coil V23100V4012A000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.7mm |
| Length | 19.3mm |
| Model | V23100V4012A000 |
| Operating Time | 0.75ms |
| Mount Type | PCB |
| Series | V23100V4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 150mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 1000Ω |
| Coil Power | 144mW |
| Isolation Coil To Contact | 1.5kVrms |
Key Features
- This SPST configuration relay supports a maximum contact voltage of 200V DC and a current rating up to 1A.
- The coil resistance is precisely 1000 Ω, with a coil power consumption of 144 mW.

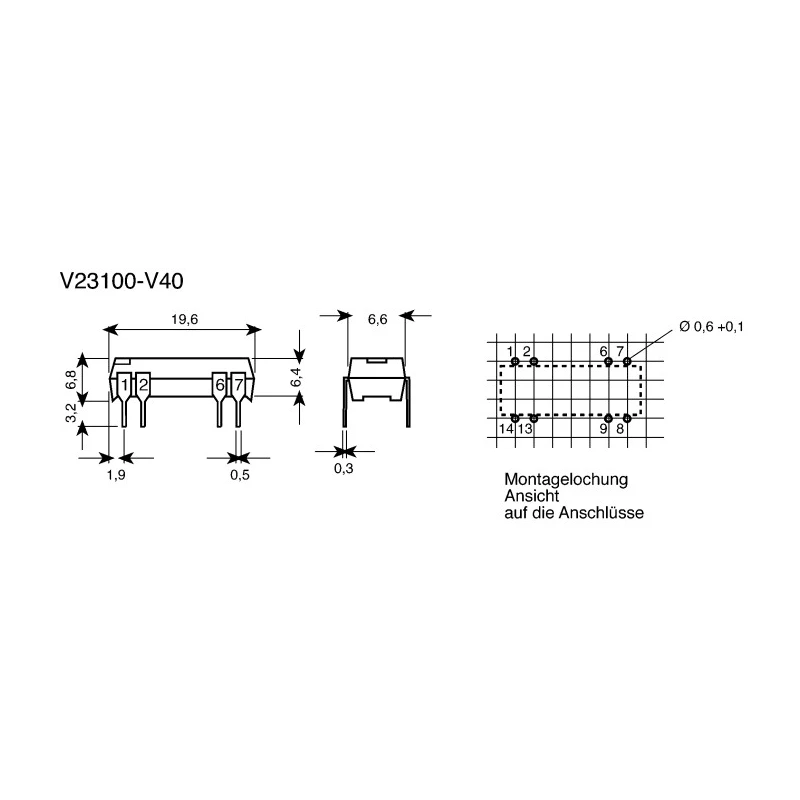

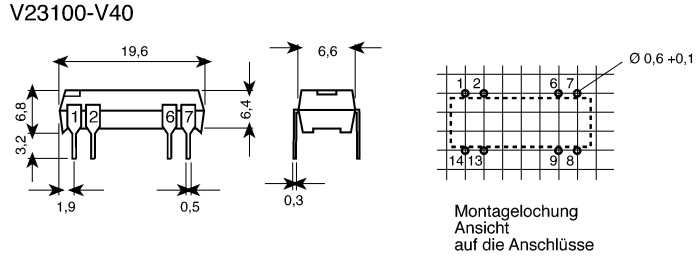

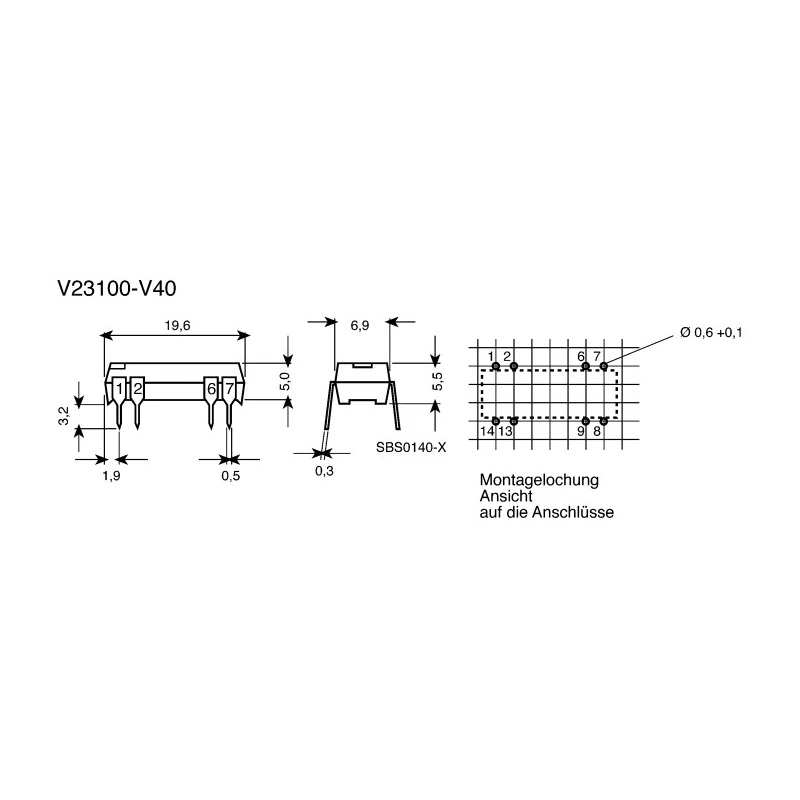

- It features a compact size with length 19.3 mm and height 5.7 mm, ideal for PCB mounting.
- Operating temperature ranges from -40°C to 85°C, suitable for demanding environments.
- Contact resistance is low at 150 mΩ, ensuring efficient signal conduction.
- The relay offers fast operation with a 0.75 ms switching time.
- High isolation between coil and contacts at 1.5 kVrms provides excellent electrical safety.
- This new, washproof monostable reed relay is designed for low contact noise and thermal voltage.
Product Description
TE Connectivity V23100V4012A000 PCB Reed Relay is a reliable, high-performance switching device featuring a 12V DC coil and SPST contact configuration. It is designed for precise signal switching and robust operation in electronics and industrial controls.
This relay supports a maximum DC contact voltage of 200V and a maximum current of 1A, making it suitable for low power signal applications. With a coil resistance of 1000 Ω and coil power of 144 mW, it offers efficient power consumption.
The compact dimensions of 19.3 mm length and 5.7 mm height enable easy PCB mounting in tight spaces. The operating temperature range from -40°C to 85°C ensures dependable performance even in harsh environmental conditions.
It provides low contact resistance of 150 mΩ and fast switching time of 0.75 ms, facilitating quick signal transitions. The coil-to-contact isolation voltage of 1.5 kVrms offers enhanced electrical safety.
This monostable washproof reed relay reduces contact noise and thermo voltage, improving signal integrity. It is suitable for applications such as telecommunications, instrumentation, industrial automation, and control systems where precise and reliable switching is essential.
SPST contact configuration for single-pole single-throw switching. 12V DC coil voltage with 1000 Ω coil resistance and 144 mW coil power. Maximum contact rating of 200V DC and 1A current. Compact PCB mount form factor with 19.3 mm length and 5.7 mm height.
Operating temperature range from -40°C to 85°C. Low contact resistance at 150 mΩ and fast operating time of 0.75 ms. 1.5 kVrms isolation between coil and contacts. Washproof reed relay design for reliability and reduced noise.
UL certified for quality and safety standards compliance.
This TE Connectivity Reed Relay is an excellent choice for industrial, commercial, electronics manufacturing, and automation applications requiring compact, reliable, and fast-switching relays. Browse more relays and contactors at EnvMart for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact voltage for this relay is 200V DC.
The coil resistance of this model is 1000 Ω.
This relay operates within a temperature range of -40°C to 85°C.
The switching time for this model is 0.75 ms.
The contact configuration of this relay is SPST (Single-Pole Single-Throw).
This relay has a height of 5.7 mm and a length of 19.3 mm.
The maximum current rating for this model is 1A.
This relay is designed for PCB mounting.
The contact resistance of this relay is 150 mΩ.
The isolation voltage between the coil and contacts is 1.5 kVrms.
The coil power consumption for this relay is 144 mW.
This relay is UL certified for quality and safety standards compliance.
