Cynergy3 PCB Reed Relay 24V dc Coil SPST Contact Configuration 1000V dc Max 3A Max 780Ω Coil Resistance

Cynergy3 DAR72405U PCB Reed Relay is engineered for applications demanding high isolation voltages and exceptional reliability, operating from a 24V dc coil voltage. Its SPST (Single Pole Single Throw) contact configuration ensures precise switching up to 1000V dc and current up to 3A. The relay's coil power consumption is 50W with a coil resistance of 780Ω, optimized for PCB mounting with PCB terminal connections.

This reed relay features a very low contact resistance of 50mΩ, contributing to minimal signal loss and high efficiency. It delivers a maximum switching power of 50W and a coil-to-contact isolation voltage rated at 17kV, highlighting its suitability for high-voltage and sensitive signal-control applications such as cardiac defibrillators, test equipment, and power supplies.

With an operation time of only 3ms and a robust temperature range from -20°C to 70°C, this relay performs reliably under demanding conditions. Its physical dimensions of 60mm length by 18.5mm height allow easy integration into PCB-based designs. The device does not feature latching capability, focusing instead on fast response and repeatability.

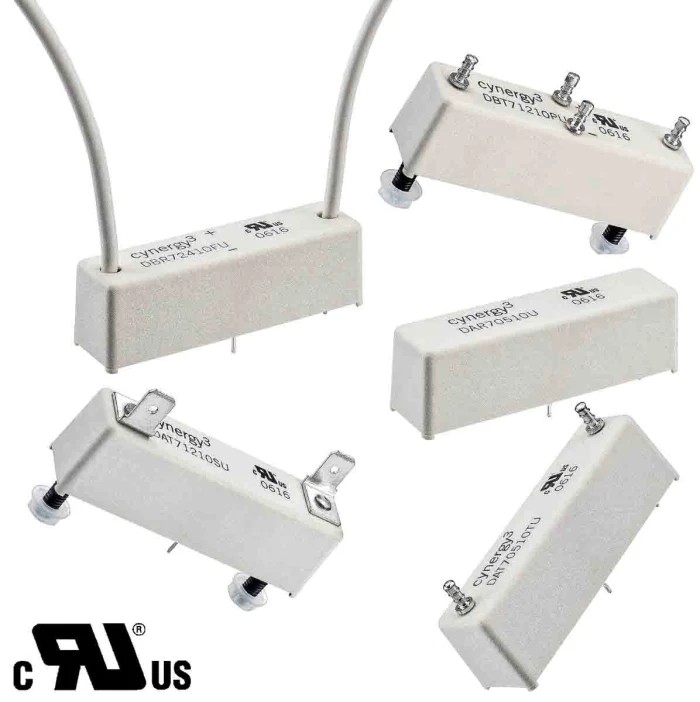

The relay complies with UL standards, providing assurance of safety and quality. Its design incorporates high vacuum reed switches with Rhodium or Tungsten contacts to achieve very high isolation voltages and durability. Mounting flexibility is provided by PCB terminals and optional nylon stud panel mounts. The relay’s connection options include flying leads and spade terminals, further enhancing installation versatility.

This Cynergy3 reed relay is ideal for industrial, laboratory, medical, and high-voltage power control applications requiring compact, reliable relay components. The product originates from China.

The relay provides high coil-to-contact isolation voltage up to 17kV. Low contact resistance ensures efficient signal switching. Fast operating time of 3 milliseconds supports quick switching. Wide operating temperature range from -20°C to 70°C.

PCB mount type with PCB terminals enables easy integration. Complies with UL safety standards for industrial use. Latching functionality is not included, focusing on rapid repeat operations.
