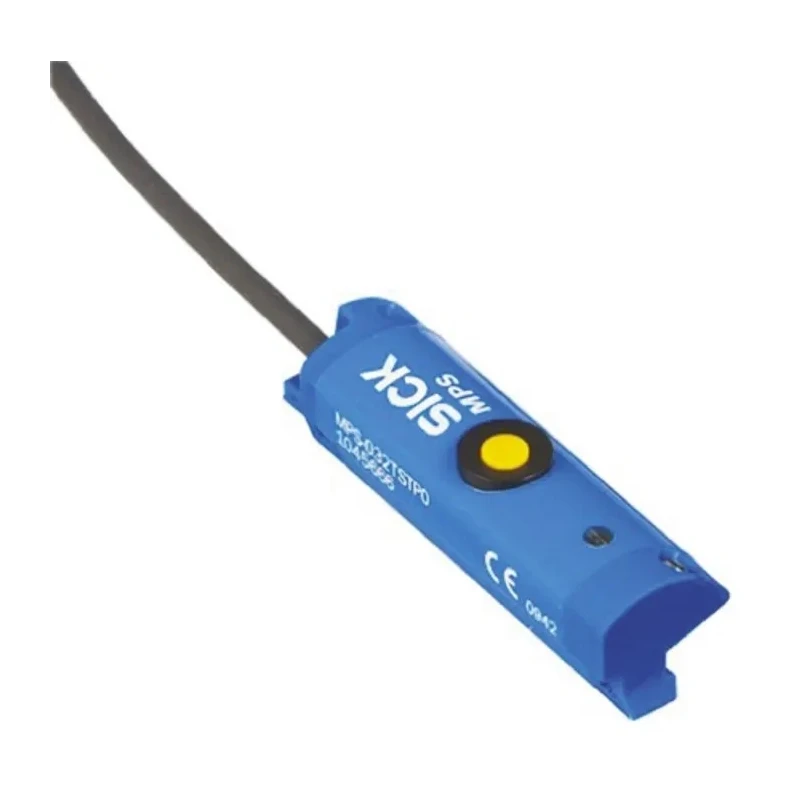

SICK MPS Series Magnetic Position Sensor 30V dc PNP Signal MPS-224TSTP0 / 1050686

The SICK MPS-224TSTP0 / 1050686 Magnetic Position Sensor offers precise and reliable position sensing solutions suited for industrial automation applications. Operating at 30V dc with a PNP output signal, this sensor is designed for drop-in mounting on pneumatic and hydraulic cylinders with a T slot, facilitating easy installation and high functional integration.

Utilizing magnetic encoder technology, the sensor provides accurate position feedback with a resolution of 0.05 mm, repeatability of 0.1 mm, and linearity of 0.3 mm. The analogue output options include 4-20 mA current and 0-10 V voltage signals, supporting versatile control system integration.

Its robust IP67 rating ensures durability against dust and water immersion, making it suitable for demanding industrial environments. The device operates reliably over a broad temperature range from -20°C to 70°C, maintaining performance stability under varied conditions.

The compact form factor with dimensions of 237 mm height, 13.6 mm width, and 14.2 mm depth allows it to fit seamlessly into existing machine designs. Installation is simplified through drop-in mounting from the top, accelerating deployment times.

Applications include position monitoring in assembly lines, testing and sorting, clamping and gripping via cylinder grippers for pick-and-place operations, and packaging machine feedback control for material tension management. The sensor enhances operational efficiency in Automation, Manufacturing, and Industrial Equipment sectors.

Magnetic encoder technology delivers precise position sensing. PNP output signal with 4-pin M8 connector for reliable electrical connection. IP67 protection rating ensures resistance to dust and water. Wide temperature operation from -20°C to 70°C suits harsh industrial environments.

Compact dimensions with easy drop-in mounting simplify integration. Analogue output options of 4-20 mA current and 0-10 V voltage support diverse control systems. High sampling rate of 1 ms enables fast and accurate position feedback.

Certified to CE and cULus standards for compliance and safety.

The SICK MPS series position sensors are a trusted solution for motion control in pneumatic and hydraulic cylinders, offering precise feedback and durable design to enhance automated system performance. Explore more Position Sensors and industrial automation components in the EnvMart catalog to optimize your production line.
