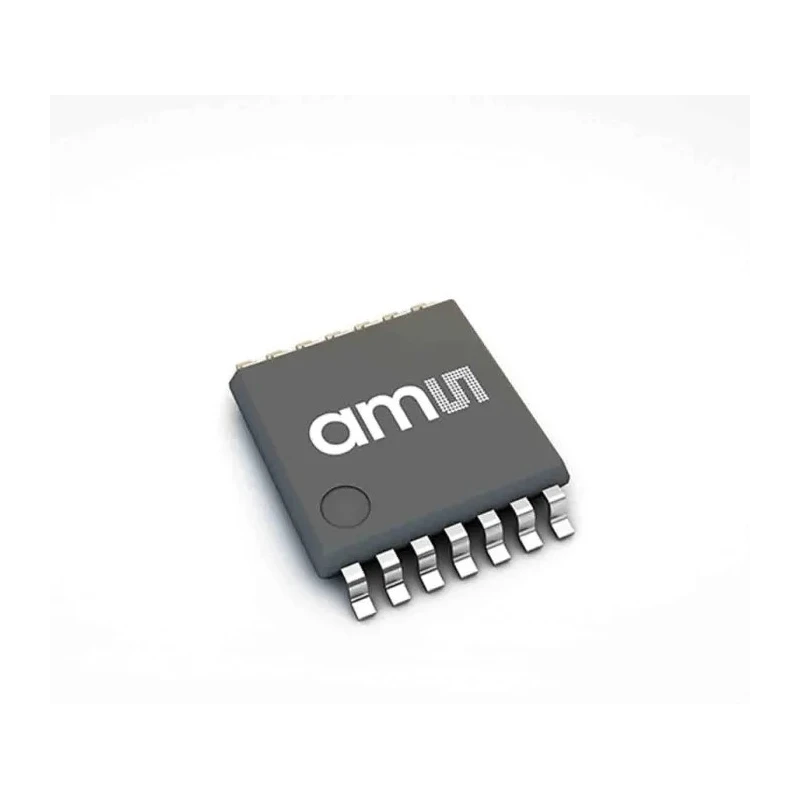

ams OSRAM 1 Axis Surface Mount Hall Position Sensor SPI Interface -0.3V to 7V Supply AS5147-HTSM

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 1 Axis Surface Mount Hall Position Sensor SPI Interface -0.3V to 7V Supply AS5147-HTSM

Name: ams OSRAM 1 Axis Surface Mount Hall Position Sensor SPI Interface -0.3V to 7V Supply AS5147-HTSM
Brand: ams OSRAM
SKU: 410609
Price: 20.22 USD
Availability: InStock



Category Position Sensor Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Response time	90μs
Height	1.2mm
Length	5mm
Model	AS5147-HTSM
Technology	Analogue
Sensor Type	Position Sensor
Width	6mm
Mount Type	Surface
Series	AS5147
Maximum Operating Temperature	150°C
Package Type	90 μs
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	SPI
Automotive Standard	AEC-Q100
Maximum Supply Voltage	7V
Minimum Supply Voltage	-0.3V
Supply Current	15mA
Magnetic Type	Hall

Key Features

Provides 14-bit high-resolution absolute angle measurement over 360 degrees.
Features 11-bit binary incremental pulse count for precise positioning.
Includes programmable zero position and self diagnostics for safety-critical applications.
Supports BLDC motor commutation for automotive and industrial use.
Operates over a temperature range of -40°C to 150°C with supply current of 15mA.
Compact surface mount package with dimensions 5 mm (L) x 6 mm (W) x 1.2 mm (H).
Meets automotive standard AEC-Q100 for quality and reliability.
Fast response time of 90 microseconds to enable real-time control.

Product Description

ams OSRAM AS5147-HTSM is a high-performance 1 axis surface mount Position Sensor that uses Hall effect technology to measure absolute rotary positions with 14-bit resolution. It communicates through an SPI digital interface, enabling precise angle determination over a full 360-degree rotation.

Designed for demanding industrial, automotive, and manufacturing applications, this sensor offers programmable zero position and self-diagnostic features, facilitating safety-oriented implementations such as BLDC motor commutation control.

The sensor supports a wide supply voltage range from -0.3 V to 7 V and operates effectively within an industrial-grade temperature range between -40°C and 150°C. Its compact 5 mm by 6 mm package with a height of 1.2 mm suits tight integration on printed circuit boards, reducing system size and cost.

With a response time of 90 microseconds and low supply current of 15 mA, the AS5147-HTSM is ideal for fast and reliable position feedback in embedded systems. It meets the automotive industry standard AEC-Q100, ensuring robustness required for vehicular applications.

14-bit absolute angle resolution with 11-bit incremental pulse count. Hall effect technology for precise magnetic position sensing. SPI digital interface for efficient data communication. Wide operating temperature range (-40°C to 150°C) and supply voltage (-0.3 V to 7 V).

Compact surface mount form factor: 5 mm x 6 mm x 1.2 mm. Meets automotive quality standard AEC-Q100. Fast 90 μs response time and 15 mA supply current.

This sensor is well suited for embedded motion control, automotive steering systems, industrial automation, robotics, and any application requiring accurate rotary position sensing. Its integrated diagnostics enhance reliability in safety-critical environments.
