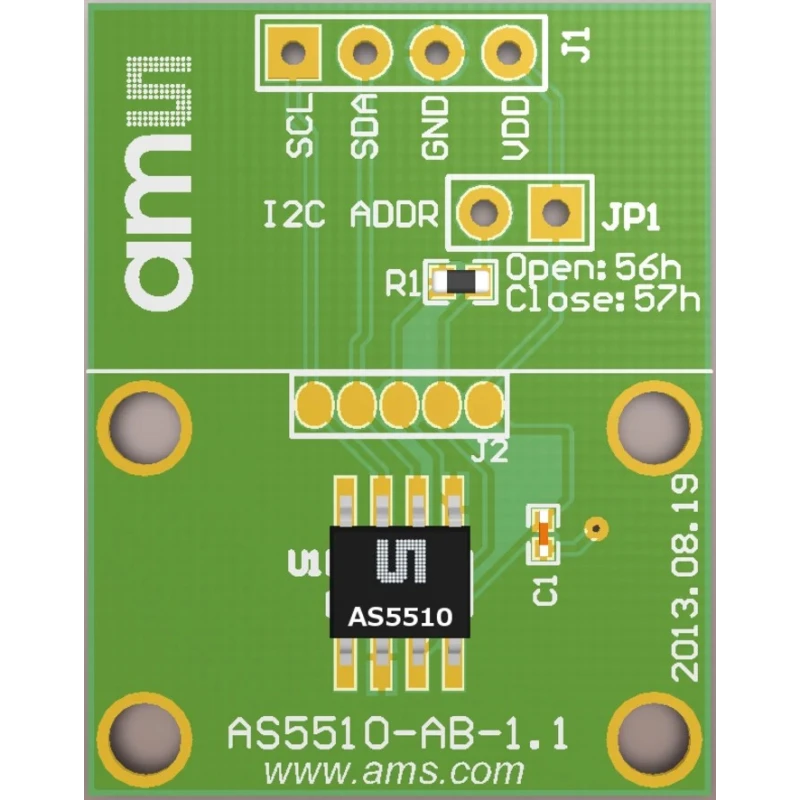

ams OSRAM Position Sensor Adapter Board for AS5510 Linear Encoder AS5510-SO_EK_AB

ams OSRAM AS5510-SO_EK_AB Position Sensor Adapter Board is a dedicated development tool designed to facilitate the quick testing and evaluation of the AS5510 linear encoder sensor. This adapter board eliminates the need for building custom test fixtures or PCBs, enabling developers to directly evaluate sensor performance in laboratory, industrial, automation, and embedded system projects.

The AS5510 sensor is a linear hall sensor delivering 10-bit resolution with an I²C digital interface for easy integration with microcontrollers. It accurately measures the absolute position of lateral movement across a simple 2-pole magnet.

This adapter board is supplied with an operating voltage range from 2.5 V to 3.6 V and must be connected to a microcontroller via the I²C bus to read position data. The 2-pole magnet is to be placed on top of the encoder for proper measurement functionality.

The compact and efficient design makes the AS5510-SO_EK_AB board ideal for use in sensor development, embedded testing, and rapid prototyping environments requiring precise position sensing.

Enables quick testing without custom PCB or fixture. Supports AS5510 linear hall sensor with 10-bit resolution. I²C interface for microcontroller connection. Operates at 2.5 to 3.6 volts supply voltage. Measures position using a 2-pole magnet.

RoHS compliant and manufactured in Austria. Intended for industrial, laboratory, and embedded system use cases.

This sensor adapter board is a key accessory for development engineers working in automation, robotics, industrial controls, and IoT sensor integration. Explore the extensive Sensor Development Tools category for compatible modules and accessories.
