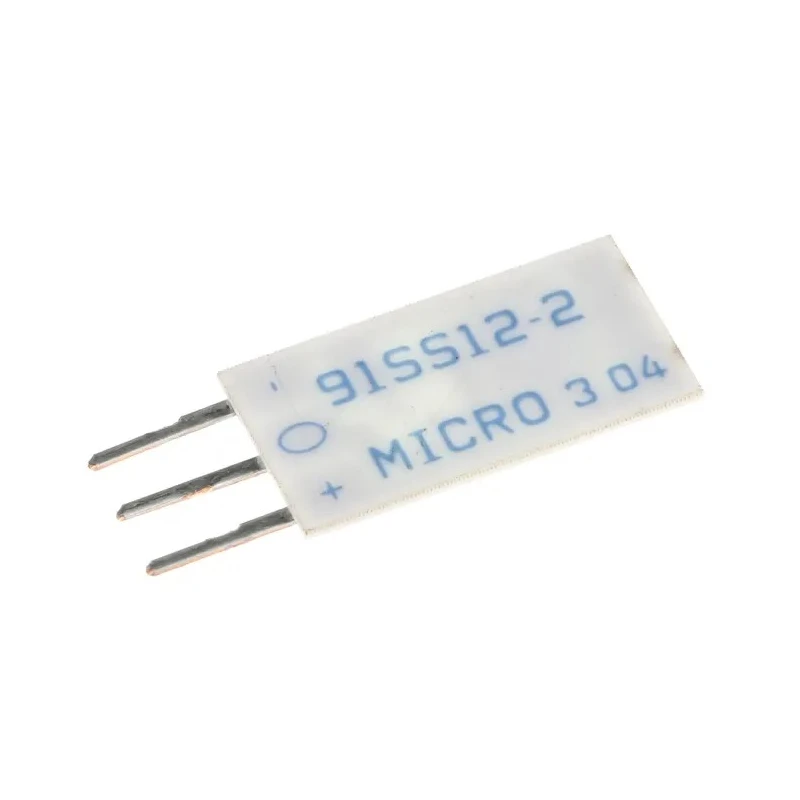

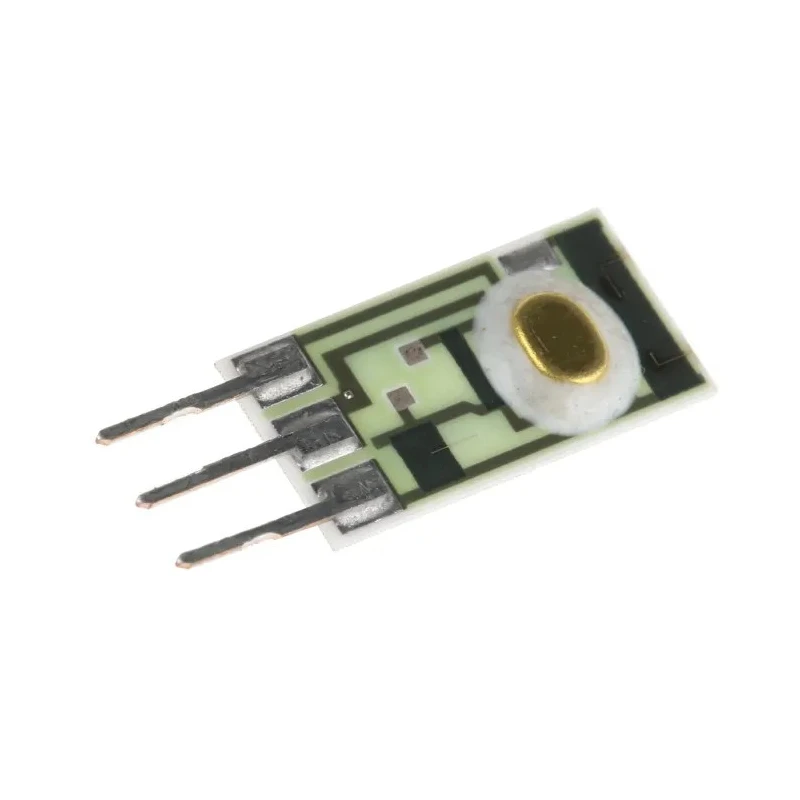

Honeywell Technologies Through Hole Linear Position Sensor -0.5 V to 18V, SIP Package, 3-Pin, Analogue Hall Effect 91SS12-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Honeywell Technologies |
| Response time | 3s |
| Height | 1.87mm |
| Length | 15.2mm |
| Model | 91SS12-2 |
| SENSITIVITY | 3.75mV/g |
| Technology | Analogue |
| Sensor Type | Hall Effect Sensors |
| Width | 0.6in |
| Mount Type | Through Hole |
| Series | 91SS |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -0.5V |
| Supply Current | 19mA |
| Magnetic Type | Linear |
Key Features
- The sensor operates from -0.5 V to 18 V supply voltage for flexible integration.
- It provides 3.75mV/g sensitivity for accurate linear magnetic response.
- The 3-pin SIP package enables straightforward through-hole PCB mounting.
- Operating temperature range extends from -40°C to 150°C for extreme environments.
- Supply current is 19mA for efficient power management in designs.
- This sensor suits motor commutation feedback and factory automation position sensing.
- It is RoHS compliant, supporting environmental safety standards.
- Applications include magnetic proximity detection, safety interlocks, and vibration-related monitoring.
Product Description
Honeywell Technologies 91SS12-2 is a through hole linear Position Sensor featuring analogue Hall Effect technology in a compact SIP 3-pin package. Designed to detect inline magnetic fields, this sensor operates reliably from a low supply voltage range of -0.5 V up to 18 V while consuming a predictable 19mA current.
With 3.75mV/g sensitivity, it converts magnetic signals linearly to voltage output, allowing precise position or motion sensing in various industrial, automation, and instrumentation systems. The sensor maintains accurate performance across an operating temperature range of -40°C to 150°C, making it suited for harsh environments.
The device is mounted via through-hole configuration on printed circuit boards, facilitating secure electrical connections and mechanical stability. Typical use cases include motor commutation feedback for industrial drives, factory automation position sensing equipment, magnetic proximity detection in safety interlocks, and magnetic vibration monitoring systems. It integrates seamlessly into analogue signal processing chains.
RoHS compliance ensures environmental compatibility. The sensor is manufactured in the United States following high quality standards. 3.75mV/g sensitivity enables precise magnetic-to-voltage conversion. Wide supply voltage range allows flexible power options.
Robust temperature tolerance from -40°C to 150°C. SIP 3-pin through hole package for easy PCB assembly. Low 19mA supply current supports efficient power design. Applicable for industrial motor control, automation, and safety interlock systems.
Supports magnetic proximity and vibration monitoring applications.
The Honeywell Technologies 91SS12-2 sensor is ideal for electronic and electromechanical systems requiring reliable magnetic position detection. Explore more sensors and electronic components in the Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of -0.5 V to 18 V, allowing for flexible integration into various systems.
The sensor provides a sensitivity of 3.75mV/g, enabling accurate linear magnetic response and precise position sensing.
It functions effectively across an operating temperature range of -40°C to 150°C, making it suitable for extreme environments.
The 91SS12-2 features a through-hole mounting type, which allows for secure electrical connections on printed circuit boards.
This sensor requires a supply current of 19mA, supporting efficient power management in design applications.
The response time for this sensor is 3 seconds, providing timely detection of magnetic changes.
The sensor is packaged in a SIP (Single In-line Package) format, which is compact and facilitates easy mounting.
Yes, this sensor is RoHS compliant, ensuring it meets environmental safety standards.
This model is suitable for applications including motor commutation feedback, factory automation position sensing, and magnetic proximity detection.
The sensor measures 15.2mm in length, 0.6 inches in width, and 1.87mm in height, making it compact for various installations.
The 91SS12-2 utilizes analogue Hall Effect technology for detecting inline magnetic fields and converting them to voltage output.
This sensor is manufactured in the United States, adhering to high quality standards.
