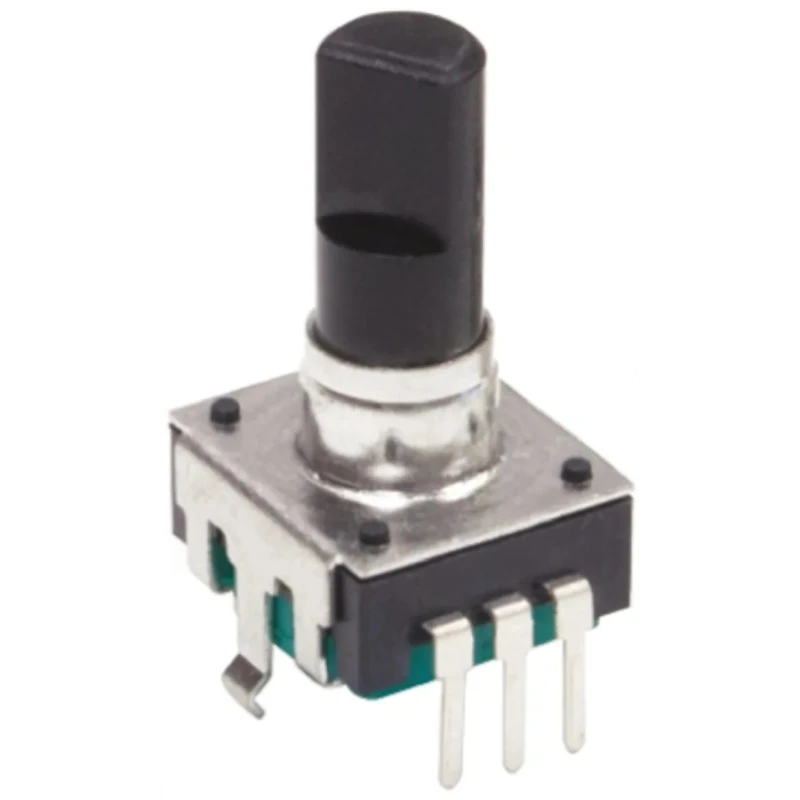

Bourns 12 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through Hole Mount PEC12R-4020F-S0012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Model | PEC12R-4020F-S0012 |
| Mount Type | Through Hole |
| Current Rating | 10mA |
| Series | PEC12R |
| Shaft Diameter | 6mm |
| Shaft Length | 20mm |
| Pulses per Revolution | 12ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Shaft Style | Flat |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Index Output | Not Indexed |
| Maximum Operating Speed | 100rpm |
Key Features
- Provides 12 pulses per revolution for accurate position feedback.
- Features a flat shaft style with a diameter of 6 mm and a shaft length of 20 mm.
- Mounted through hole for secure installation in various applications.
- Generates digital square wave encoder signals incrementally for precise measurement.
- Maximum operating speed is 100 rpm suitable for low-speed rotational sensing.
- Termination style is surface mount for easy PCB integration.
- Compliant with RoHS standards ensuring environmental safety.
- Current rating is 10 mA, suitable for low power electronic circuits.
Product Description
Bourns PEC12R-4020F-S0012 is a high precision mechanical rotary encoder designed for industrial and electronic applications requiring 12 pulses per revolution. This incremental encoder features a 6 mm flat shaft with a shaft length of 20 mm, providing robust and stable shaft coupling via through hole mounting. It generates digital square wave signals incrementally for accurate angular position measurements.
The device operates up to a maximum speed of 100 rpm, making it ideal for low-speed control and feedback systems in audio-visual equipment, consumer electronics, musical instruments, and communications hardware. It is a surface mount type for easy PCB integration and mounting.
Compliance with RoHS ensures the product meets environmental safety standards. The encoder has a current rating of 10 mA to suit low power circuits, and its compact design allows it to be used in equipment requiring reliable position sensing. The product is manufactured in China.
This rotary encoder is commonly applied in level control, tuning, and timer settings within various industrial and consumer devices. Its incremental digital output enables precise control in automated and manual systems.
Provides 12 pulses per revolution for accurate position feedback. Features a flat shaft style with a diameter of 6 mm and a shaft length of 20 mm. Mounted through hole for secure installation in various applications. Generates digital square wave encoder signals incrementally for precise measurement.
Maximum operating speed is 100 rpm suitable for low-speed rotational sensing. Termination style is surface mount for easy PCB integration. Compliant with RoHS standards ensuring environmental safety. Current rating is 10 mA, suitable for low power electronic circuits.
Made in China and designed for durability and reliability. Not indexed, meaning no specific reference index output included.
Ideal for industrial, laboratory, audio-visual, communication, and consumer electronics applications requiring precise incremental rotary position sensing. Explore more products in our Electronics & Electricals Sensors Rotary Encoders category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this model is 100 rpm, making it suitable for low-speed rotational sensing applications.
This encoder features a flat shaft with a diameter of 6 mm.
It provides 12 pulses per revolution for accurate position feedback.
The encoder is designed for through hole mounting, which ensures secure installation in various applications.
The current rating is 10 mA, suitable for low power electronic circuits.
It generates digital square wave signals incrementally, allowing for precise measurement of angular position.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The shaft length of this encoder is 20 mm.
The termination style is surface mount, facilitating easy integration onto printed circuit boards (PCBs).
It is commonly applied in level control, tuning, and timer settings within various industrial and consumer devices.
No, this model is not indexed, meaning it does not include a specific reference index output.
This encoder is manufactured in China.
