Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature with 6 mm Slotted Shaft E33-ST652-M01T

Free Delivery in India | Lowest Global Shipping Charges

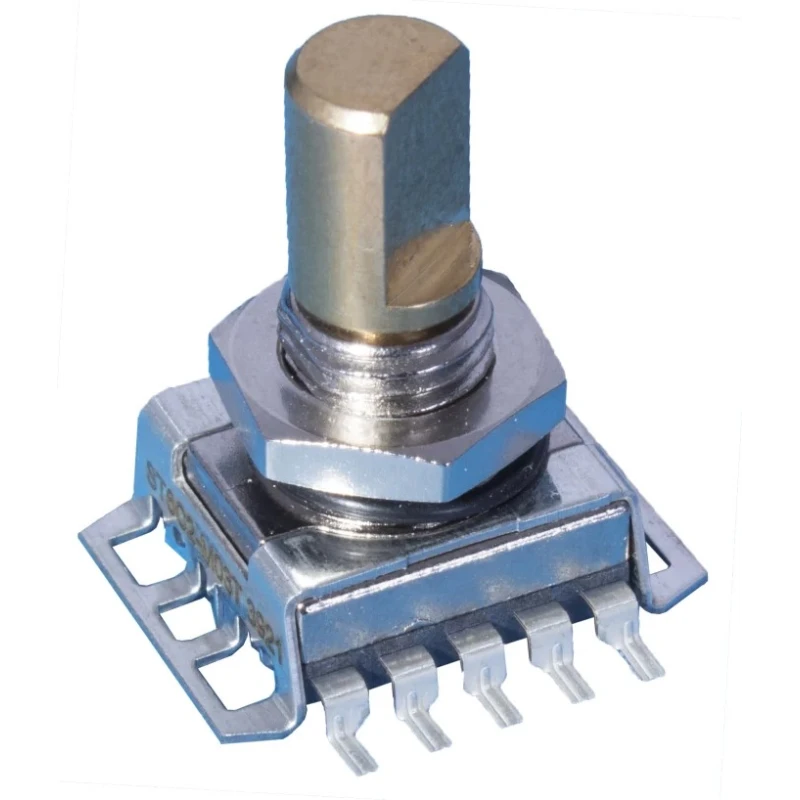

Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature with 6 mm Slotted Shaft E33-ST652-M01T

Name: Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature with 6 mm Slotted Shaft E33-ST652-M01T
Brand: Elma
SKU: 115025
Price: 48.52 USD
Availability: InStock



Category Rotary Encoders Brand Elma Condition New

Specifications

Country of Origin	India
Brand	Elma
Model	E33-ST652-M01T
Current Rating	10mA
Series	E33
Shaft Diameter	6mm
Shaft Length	16mm
Pulses per Revolution	16ppr
Standards/Approvals	RoHS
Termination Style	Pin
Shaft Style	Slotted
Encoder Reading	2 Bit Quadrature
Encoder Signal	Digital Square Wave
Maximum Operating Speed	60rpm

Key Features

Features a robust metal housing and shaft designed for industrial durability.
Supports a maximum operating speed of 60 rpm suitable for low-speed rotational sensing.
Includes a pushbutton function activated with a 6N push force for user input.
Encoder signal outputs digital square waves ideal for quadrature counting systems.
Environmentally sealed to IP68 rating, ensuring protection from dust and water ingress.
Gold plated contacts ensure long-term reliable electrical performance.
Operating temperature range from -40 to +85 degrees Celsius suits harsh environments.
Termination style is pin type connector for easy integration in electronic systems.

Product Description

Elma E33-ST652-M01T Mechanical Rotary Encoder offers precise positional feedback with 16 pulses per revolution and a 2 Bit Quadrature digital output. Featuring a 6 mm slotted shaft with a length of 16 mm, this encoder is engineered for accuracy and reliability in industrial applications.

Constructed with a robust metal housing and metal shaft, the encoder withstands mechanical stresses while providing a rotational life of up to 1,000,000 revolutions. The unit includes a pushbutton function requiring a 6N push force, enhancing user control options.

Designed for horizontal mounting, this encoder comes with an IP68 environmental sealing on both the shaft and front panel, protecting against dust and water ingress to ensure operational reliability in demanding environments.

The encoder signal provides a digital square wave output with a 2 Bit Quadrature reading, ideal for integration into motion control and measurement systems. Gold plated contacts increase electrical contact quality and longevity, while the device supports a maximum speed of 60 rpm under a current rating of 10 mA.

The operating temperature range from -40 to +85°C allows use in a wide variety of industrial, laboratory, manufacturing, and HVAC control systems where precise rotary feedback is needed.

Robust metal housing and shaft for industrial durability. 16 pulses per revolution with 2 Bit Quadrature digital output. Pushbutton feature with 6N actuation force included. IP68 sealing for superior environmental protection.

Gold plated contacts for enhanced electrical reliability. Maximum operating speed of 60 rpm. Pin termination style for secure electrical connection. Operating temperature range from -40 to +85 degrees Celsius. Supports up to 1,000,000 rotational cycles.

Current rating of 10 mA for low power consumption.

This Elma Mechanical Rotary Encoder model E33-ST652-M01T is ideal for industrial automation, laboratory instrumentation, manufacturing process control, and HVAC applications requiring reliable and accurate rotary position sensing.

Explore further similar Rotary Encoders and mechanical sensor solutions at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating speed of this model is 60 rpm, making it suitable for low-speed rotational sensing applications.

This encoder provides 16 pulses per revolution with a 2 Bit Quadrature digital output, ideal for quadrature counting systems.

The shaft diameter is 6 mm and the shaft length is 16 mm, designed for compatibility with various mounting applications.

It has an IP68 environmental sealing, ensuring protection against dust and water ingress, suitable for demanding environments.

The operating temperature range is from -40 to +85 degrees Celsius, allowing for use in harsh industrial environments.

This model utilizes a pin termination style for secure and easy integration into electronic systems.

The current rating for this encoder is 10 mA, which supports low power consumption during operation.

The encoder features a robust metal housing and metal shaft, designed to withstand mechanical stresses in industrial applications.

Yes, it includes a pushbutton function that requires a 6N push force for user input, enhancing control options.

It provides a digital square wave output, suitable for integration into motion control and measurement systems.

This encoder complies with RoHS standards, ensuring it meets environmental and safety regulations.

It is suitable for applications in industrial automation, laboratory instrumentation, manufacturing process control, and HVAC systems requiring accurate rotary feedback.
