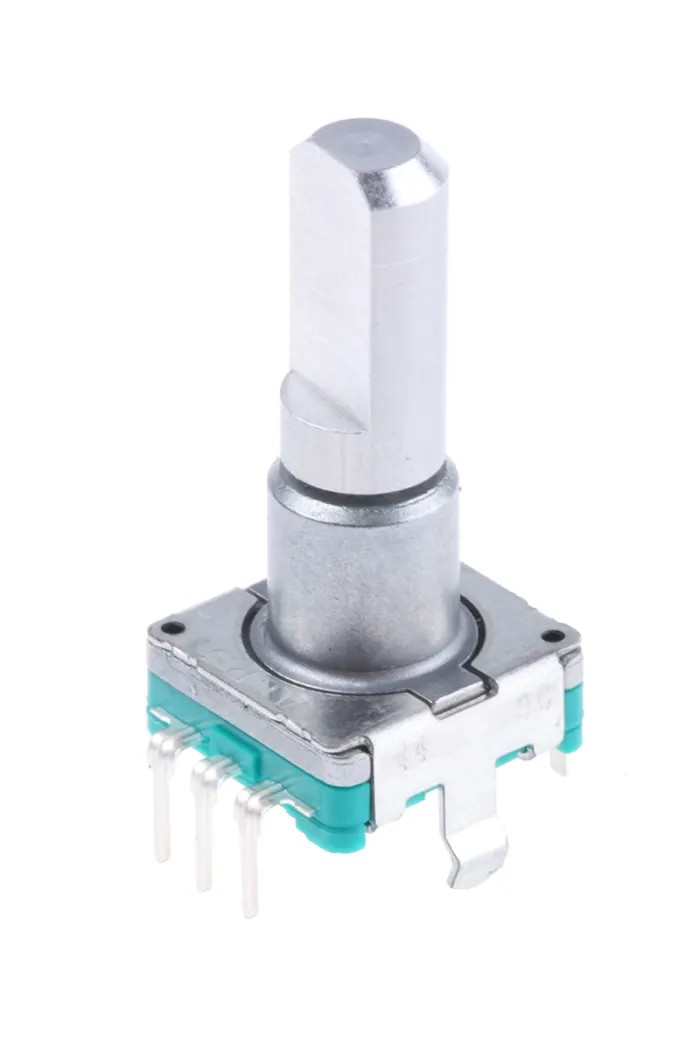

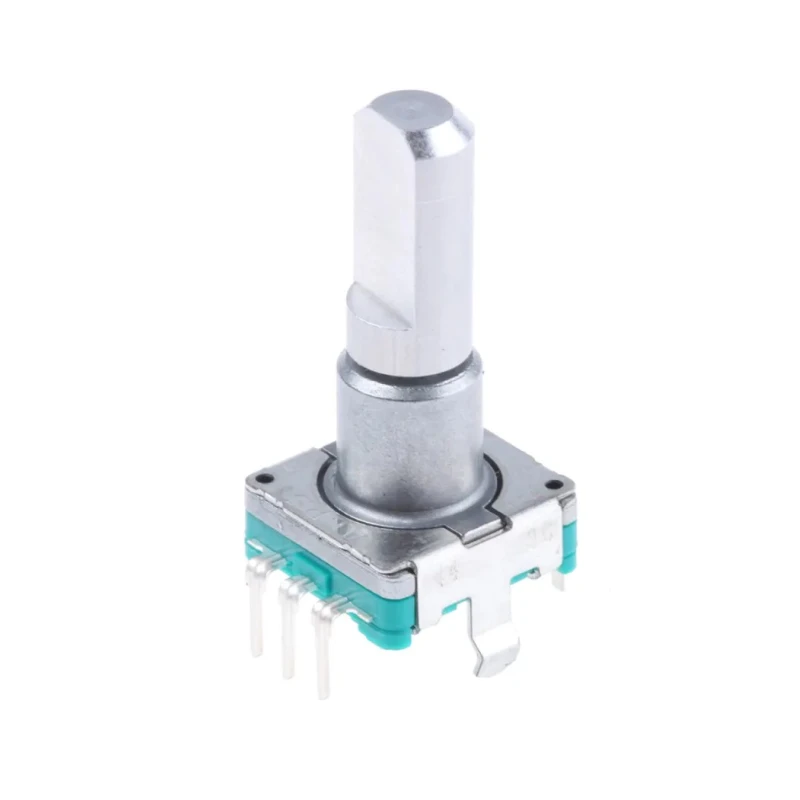

Alps Alpine Mechanical Rotary Encoder 15 ppr Pulse Incremental with 6 mm Flat Shaft, Through Hole Mount EC11E15244G1

Alps Alpine EC11E15244G1 mechanical rotary encoder is a compact and precision component designed for applications requiring incremental pulse signals. This model features 15 pulses per revolution, delivering accurate rotational positioning information suitable for electronic and industrial applications.

The encoder uses a 6 mm flat metal shaft with a length of 20 mm, providing robust mechanical interfacing. Its incremental reading type outputs digital square wave signals, which are widely compatible with control and measurement systems.

Mounting is achieved via a through hole design with a 2.6 mm mounting hole diameter, ensuring a secure fit in various assemblies. The shaft is not indexed, catering to continuous rotation applications without a reference position pulse.

Termination uses surface mount style connections, simplifying PCB assembly processes. Operable at a typical rating of 5V DC with a low current draw of 10 mA, it supports efficient power usage in embedded systems.

Compliant with RoHS directives, this product meets environmental and safety standards, suitable for a broad range of electronic components assembly.

Originating from Japan, Alps Alpine’s EC11 series encoders are known for durable metal shafts and reliable performance, with operating life spans ranging depending on the series variant.

Provides 15 pulses per revolution for precise incremental measurements. Equipped with a 6 mm flat shaft, 20 mm length suitable for mechanical interfaces. Incremental encoder delivering digital square wave signals for reliable data output.

Designed with through hole mounting for secure installation. Non-indexed shaft to suit applications without position indexing. Surface mount termination style supports ease of assembly. Compliant with RoHS standards ensuring environmental safety.

Current rating of 10mA at 5V DC operating voltage. Compact EC11 series encoder from Alps Alpine with metal shaft construction. Manufactured in Japan ensuring high quality and reliability.

This mechanical rotary encoder is widely used in industrial sensors, electronic instrumentation, automation equipment, and embedded control systems to provide accurate rotary position feedback.
