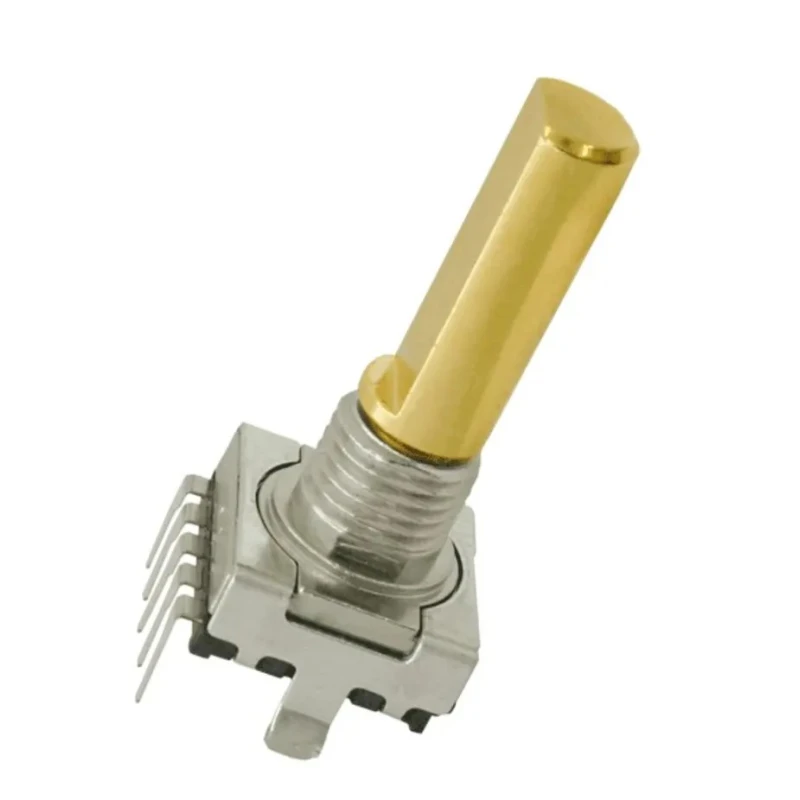

Elma 16 ppr Pulse 2 Bit Quadrature Mechanical Rotary Encoder with 6 mm Slotted Shaft E33-VT652-M01T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elma |
| Model | E33-VT652-M01T |
| Current Rating | 10mA |
| Series | E33 |
| Shaft Diameter | 6mm |
| Shaft Length | 16mm |
| Pulses per Revolution | 16ppr |
| Standards/Approvals | RoHS |
| Termination Style | Pin |
| Shaft Style | Slotted |
| Encoder Reading | 2 Bit Quadrature |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- The encoder provides a 2 Bit Quadrature reading suitable for digital square wave signals.
- It operates with a maximum speed of 60 rpm ensuring effective monitoring and control.
- The shaft length measures 16 mm with a slotted style and diameter of 6 mm.
- The device employs a pin termination style and has a current rating of 10 mA.
- It complies with RoHS standards ensuring environmental safety.
- The encoder series is E33, offering robust performance and durability.
- The mechanical rotary encoder includes a pushbutton function activated with 6N force.
- This model is horizontally mountable and environmentally sealed to IP68 on shaft and front panel.
Product Description
Elma E33-VT652-M01T Mechanical Rotary Encoder delivers 16 pulses per revolution with a 2 Bit Quadrature digital square wave output signal. Equipped with a 6 mm slotted shaft and 16 mm shaft length, this encoder operates reliably at speeds up to 60 rpm and supports a current rating of 10 mA. It features a pin termination style and meets RoHS environmental standards.
This encoder includes an integrated pushbutton switch activated by a 6N push force, adding versatility to applications in industrial automation, measurement, control, and monitoring systems. Its compact and robust metal housing with a metal shaft ensures mechanical durability and resistance to harsh environments.
The horizontal mounting configuration and environmental sealing at IP68 level on both the shaft and front panel provide excellent protection against dust and moisture ingress, making this encoder suitable for demanding industrial and laboratory environments.
The rotary encoder offers a long-life expectancy of up to 1,000,000 revolutions, with stable switching torque free of detents up to 4.5 Ncm. Gold plated contacts ensure superior electrical connectivity and signal integrity throughout its lifetime.
The encoder provides precise 16 detent position resolution enabling accurate rotational measurement. Pushbutton function adds user input capability in compact form factor. IP68 sealing ensures suitability for harsh industrial and manufacturing environments.
Robust metal construction guarantees mechanical resilience for continuous use. Ideal for applications requiring reliable low-speed rotary position sensing and digital pulse generation.
This Elma mechanical rotary encoder is a high-quality component applicable in industrial automation, manufacturing, instrumentation, and control system sectors. Its precise digital output and durable design make it a dependable choice for professional electronic and power connector systems.
Explore more advanced Rotary Encoders and related sensor solutions in the Electronics & Electricals category at EnvMart to meet your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Elma E33-VT652-M01T mechanical rotary encoder operates at a maximum speed of 60 rpm.
This encoder provides a 2 Bit Quadrature output signal suitable for digital square wave signals.
The encoder features a shaft diameter of 6 mm and a shaft length of 16 mm.
It has a current rating of 10 mA.
This model is designed for horizontal mounting.
The encoder is environmentally sealed to IP68, providing protection against dust and moisture ingress.
The Elma E33-VT652-M01T provides 16 pulses per revolution (16 ppr).
Yes, it includes an integrated pushbutton function that is activated with a force of 6N.
The encoder employs a pin termination style.
It complies with RoHS standards, ensuring environmental safety.
The encoder has a long-life expectancy of up to 1,000,000 revolutions.
It is applicable in industrial automation, measurement, control, and monitoring systems.
