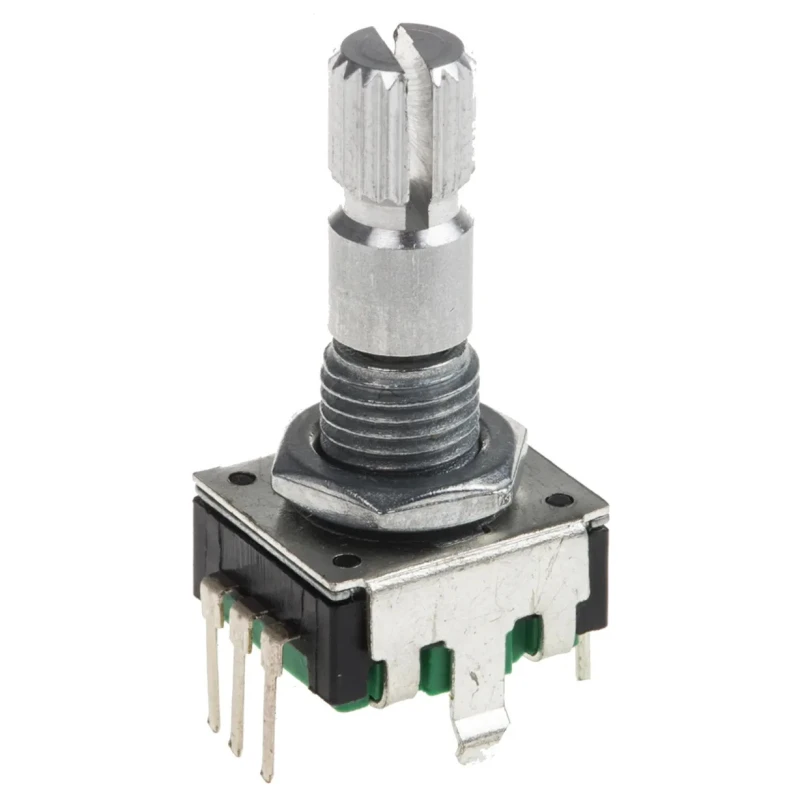

Bourns 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Knurl Shaft, Through Hole PEC11R-4220K-S0024
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Model | PEC11R-4220K-S0024 |
| Mount Type | Through Hole |
| Current Rating | 10mA |
| Series | PEC11R |
| Shaft Diameter | 6mm |
| Shaft Length | 20mm |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Mounting Hole Diameter | 1 mm |
| Shaft Style | Knurl |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- Provides 24 pulses per revolution for precise incremental position feedback.
- 6 mm diameter knurl shaft with a length of 20 mm for robust mechanical coupling.
- Incremental digital square wave encoder signal for compatibility with various control systems.
- Maximum operating speed of 60 rpm suitable for low-speed applications.
- Through hole mount type with a 1 mm mounting hole diameter for secure installation.
- Surface mount termination style for reliable electrical connection.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Current rating of 10 mA for low power consumption designs.
Product Description
Bourns PEC11R-4220K-S0024 incremental mechanical rotary encoder is engineered for precise position sensing and control applications requiring 24 pulses per revolution. This compact encoder features a 6 mm knurl shaft and through hole mounting allowing easy mechanical integration.
The encoder output is an incremental digital square wave signal compatible with a wide range of electronic control units. Its maximum operating speed of 60 rpm makes it ideal for applications where low-speed accurate feedback is critical. The shaft length of 20 mm provides sufficient length for coupling to mechanical drive systems.
With a surface mount termination style, the device ensures high reliability in electrical connectivity. Its compliance with RoHS standards guarantees environmentally safe usage.
This rotary encoder is widely used in electronics, automation, instrumentation, prototyping, and industrial equipment sectors. It is well suited for industrial machinery, automation equipment, and laboratory instrumentation where accurate rotational position encoding is required.
Provides 24 pulses per revolution for precise incremental position feedback. 6 mm diameter knurl shaft with a length of 20 mm for robust mechanical coupling. Incremental digital square wave encoder signal for compatibility with various control systems.
Maximum operating speed of 60 rpm suitable for low-speed applications. Through hole mounting with a 1 mm hole diameter for secure installation. Surface mount termination style for reliable electrical connection. Meets RoHS standards ensuring compliance with environmental regulations.
Current rating of 10 mA for low power consumption designs. Compact size with a reliable metal bushing and shaft construction. Manufactured in China with quality control for industrial use.
Explore the broad selection of Rotary Encoders at EnvMart designed for diverse industrial and electronics applications. Bourns products offer ruggedness, reliability, and technical precision for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides 24 pulses per revolution, allowing for precise incremental position feedback.
The maximum operating speed of this encoder is 60 rpm, making it suitable for low-speed applications.
It outputs an incremental digital square wave signal, compatible with various control systems.
The shaft diameter is 6 mm and the shaft length is 20 mm, designed for robust mechanical coupling.
This encoder features a through hole mounting type with a mounting hole diameter of 1 mm for secure installation.
The current rating of this model is 10 mA, suitable for low power consumption designs.
It uses a surface mount termination style, ensuring reliable electrical connectivity.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
This rotary encoder is widely used in electronics, automation, instrumentation, prototyping, and industrial equipment sectors.
This model belongs to the PEC11R series of rotary encoders.
This encoder is manufactured in China, with quality control for industrial use.
The shaft style is knurl, designed for effective mechanical coupling.
