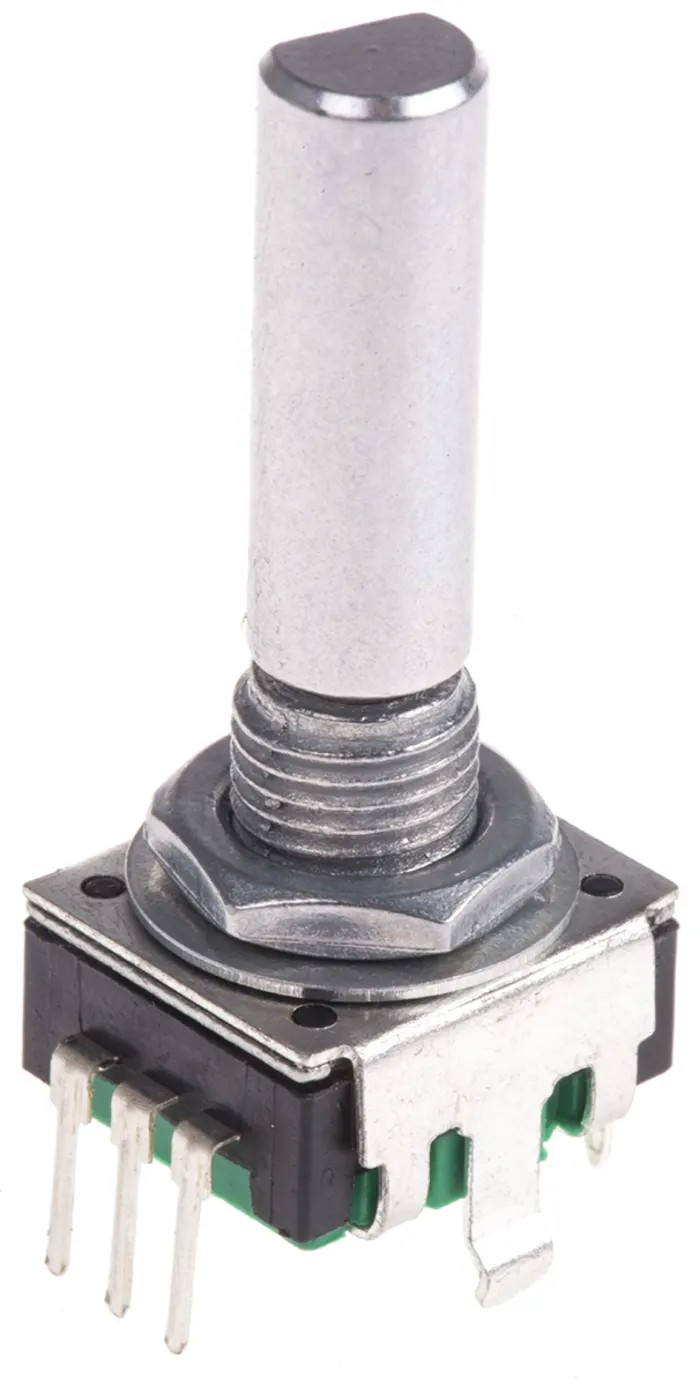

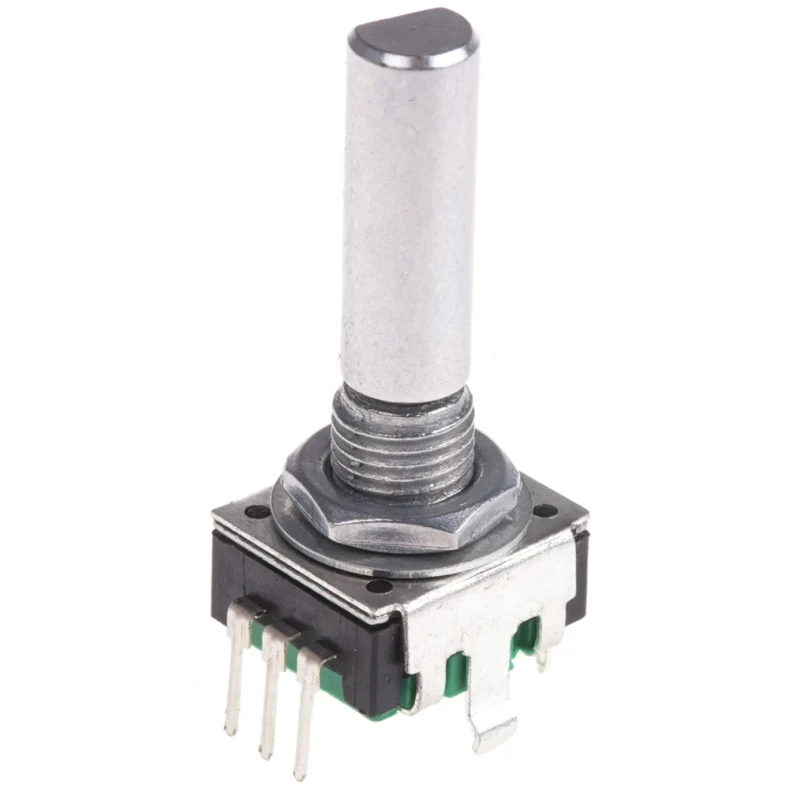

Bourns 24 Pulses Per Revolution Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through PEC11R-4225F-S0024

Bourns PEC11R-4225F-S0024 Pulse Incremental Mechanical Rotary Encoder is designed for precise angular position sensing in industrial and electronic applications. With 24 pulses per revolution (ppr), this incremental encoder provides reliable digital square wave output signals for accurate and repeatable position feedback.

The encoder features a 6 mm diameter flat shaft and a shaft length of 25 mm, optimally suited for mechanical coupling in machinery and instrumentation. It integrates a metal bushing and shaft, enhancing mechanical robustness for long service life. The through hole mount design with a 7 mm mounting hole diameter enables secure installation in various equipment housings.

It supports a maximum operating speed of 60 rpm, making it suitable for low-speed motion control, automation systems, and robotics. The incremental reading type delivers pulses without an index output, simplifying signal processing for many industrial controls. Surface mount termination style facilitates straightforward PCB assembly and electrical connection.

Compliant with RoHS environmental standards, ensuring it meets modern regulatory and sustainability requirements. Its current rating is 10 mA, compatible with standard electronic encoder inputs.

Bourns PEC11R-4225F-S0024 is widely used in electronic components, power and connectors, and passive component assemblies, especially where reliable rotary position feedback is essential. Its compact, rugged form factor and standard mounting interfaces make it ideal for industrial machinery, instrumentation, and control panels.

Environmentally compliant and built to last, this rotary encoder helps improve production efficiency and system reliability. Choose Bourns for dependable incremental position sensing in your mechanical and electronic designs.

Provides 24 pulses per revolution for accurate position sensing. Features a flat shaft style with a diameter of 6 mm for reliable mechanical coupling. Incremental encoder reading with digital square wave signals for standard applications.

Maximum operating speed is 60 rpm, suitable for low-speed rotary detection. Through hole mounting type with a 7 mm mounting hole diameter for stable installation. Surface mount termination style ensures easy PCB integration.

Index output is not indexed, simplifying pulse output processing. Compact and rugged design with metal bushing and shaft for durability. RoHS compliant for environmental safety. Rated for 10 mA current suitable for encoder circuits.
