Digital Process ORP Probe Gold Sensor PTFE 50m PVDF RS485 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

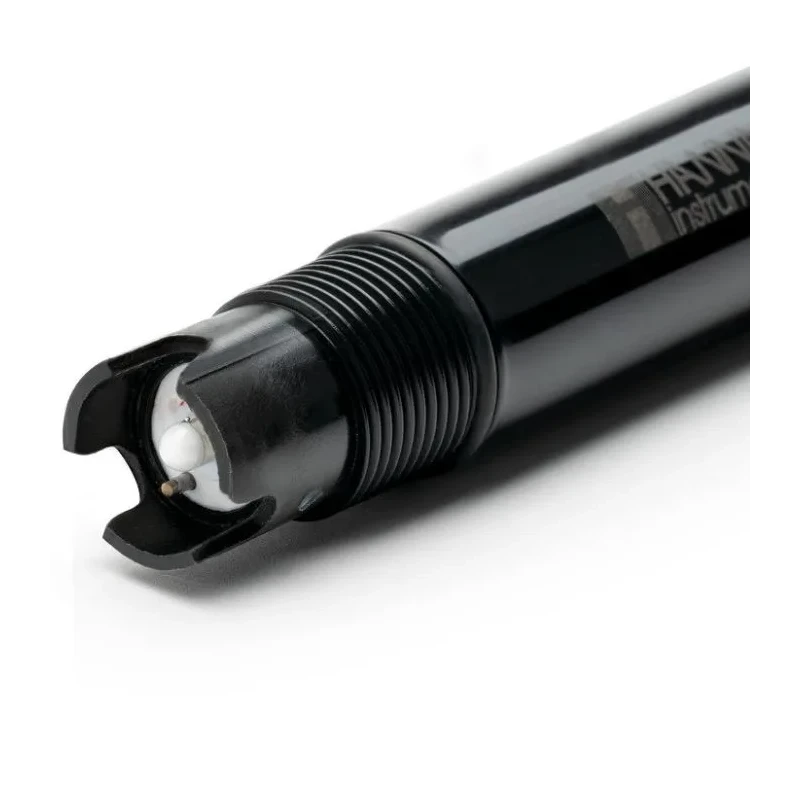

Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-50m (164.0')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-50m (164.0')
Brand: Hanna
SKU: 72344
Price: 1282.41 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF (Polyvinylidene Fluoride)
Operating Temperature	-5 to 100 °C 23 to 212 °F
Product Type	Digital Process ORP Probe
Environment	Industrial Process, Water Treatment, Laboratory
Outer Diameter	22.5 mm
Cable Length	50 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection
Type of Electrolyte	polymer
Max Pressure	6 bar 87 psi
Junction Type	PTFE, Double Junction
Product Condition	New
Reference Junction	PTFE
Body/Overall Length	140 mm
Probe Mounting	¾” NPT threaded connection
Sensor Electrode	Gold

Key Features

Digital process ORP probe with gold sensor, PTFE junction, 50m cable, and PVDF body for industrial monitoring applications.

Equipped with a gold sensor and PTFE reference junction for chemical compatibility.
Features a built-in PT100 temperature sensor for high accuracy.
Rugged PVDF body with ¾” NPT threads for easy insertion mounting or submersion use with probe holder.
Supports digital RS485 output for seamless process communication and automatic probe detection.
Measurement range ±2000 mV with double junction design for stable ORP readings.
Max operating temperature range of -5 to 100 °C and max pressure of 6 bar (87 psi).
Direct wire connection and polymer electrolyte ensure durability in aggressive process conditions.
Outer diameter 22.5 mm, body/overall length 140 mm, suitable for in-line industrial installations.
Chemically resistant PVDF construction for long service life in tough environments.
Compatible with HI510 Universal Process Controller for integrated system applications.

Product Description

This digital process ORP probe features a gold sensor and chemically resistant PTFE junction, designed for demanding industrial monitoring and control applications. Its 50-meter direct wire connection cable and robust PVDF body with ¾” NPT threads enable reliable insertion mounting or submersion with a probe holder. The built-in PT100 temperature sensor ensures precise temperature compensation for ORP measurements across a broad range from -5 to 100 °C.

The probe’s double junction and polymer electrolyte design increase measurement stability and minimize risk of contamination from harsh process chemicals. With a measurement range of ±2000 mV, it is suitable for a wide array of industrial water treatment, chemical process, and environmental monitoring scenarios. Digital communication via RS485 facilitates fast integration with controllers such as the HI510 Universal Process Controller and automatic probe detection.

Premium gold sensor and PTFE junction for exceptional chemical resistance.
Polyvinylidene fluoride (PVDF) body for durability in aggressive environments.
Built-in PT100 temperature element for automatic compensation.
Digital RS485 output and direct wire connection reduce installation complexity.
140 mm body length, 22.5 mm outer diameter, and ¾” NPT threaded connection for versatile mounting.
Withstands up to 6 bar (87 psi) pressure for compatibility with most process lines.
Designed for in-line and submersion mounting in water treatment plants, chemical process industries, and environmental monitoring facilities.
Chemically-resistant materials extend service life and ensure reliable operation.
Comprehensive compatibility with industry-standard controllers.

This probe is ideal for continuous ORP monitoring in industrial, laboratory, manufacturing, and water treatment settings. Browse more high-precision ORP probes and process sensors in EnvMart's Sensors category.
