Digital Process ORP Probe Gold Sensor PTFE Junction PVDF Body RS485 Output 5m | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-5m (16.4')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-5m (16.4')
Brand: Hanna
SKU: 72355
Price: 539.96 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF
Operating Temperature Range	-5 to 100 °C
Environment	Industrial; water/chemical process
Outer Diameter	22.5 mm
Cable Length	5 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection
Type of Electrolyte	polymer

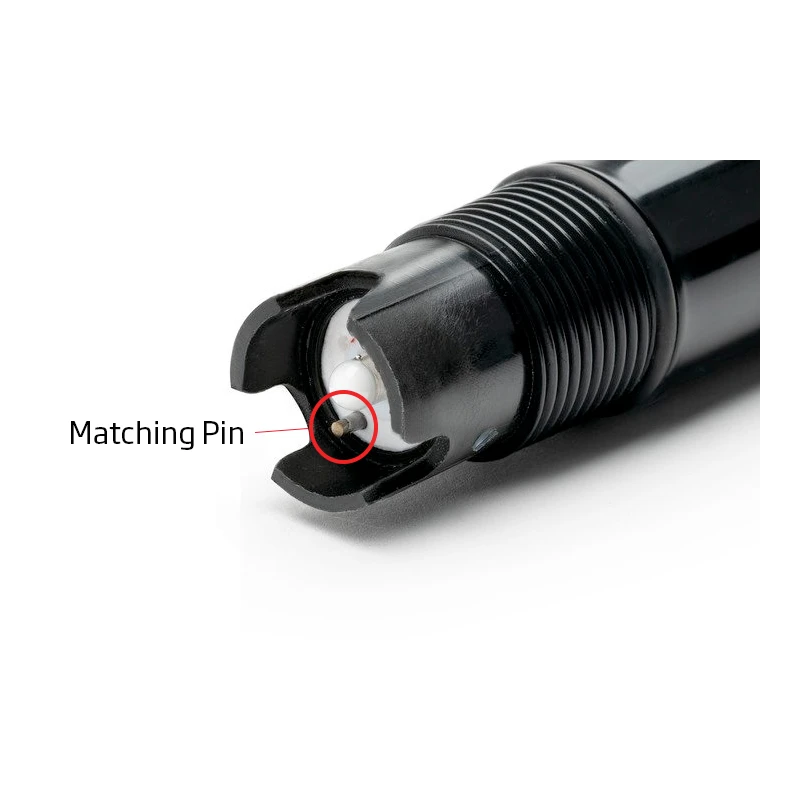

Matching Pin	yes
Max Pressure	6 bar 87 psi
Body Length	140 mm
Sensor Material	Gold
Product Condition	New
Reference Junction	Double; PTFE
Flow Rate (Junction Type)	Double junction

Key Features

Digital process ORP probe with gold sensor, PTFE junction, and chemically resistant PVDF body for industrial monitoring and control.

Features a gold ORP sensor and polymer electrolyte for high chemical resistance.
PTFE double junction ensures reliable operation in harsh environments.
Integrated PT100 temperature sensor for accurate temperature compensation.
RS485 digital output enables direct connection to process controllers.
5-meter cable length allows flexible installation options.
Insertion mounting with 3/4-inch NPT threaded connection.
Operates from -5°C to 100°C and up to 6 bar (87 psi) pressure.

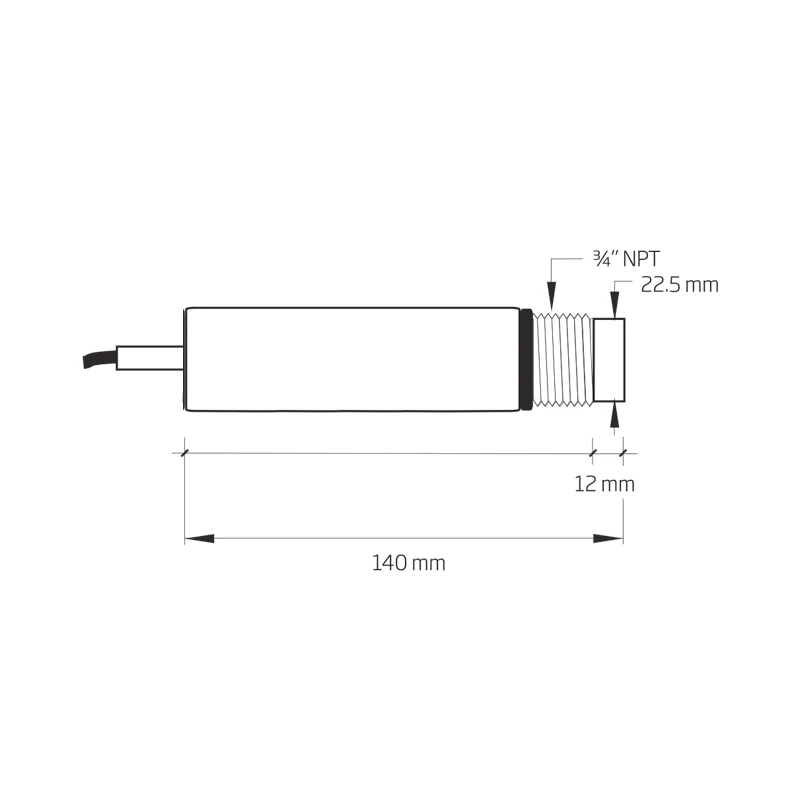

Chemically resistant PVDF body, outer diameter 22.5 mm, total length 140 mm.
±2000 mV measurement range for a wide spectrum of oxidation/reduction potentials.

Product Description

This digital process ORP probe is engineered for demanding industrial applications requiring robust oxidation-reduction potential (ORP) measurement. It features a chemically resistant PVDF body, a gold sensor for superior chemical compatibility, and a PTFE double reference junction suited for harsh environments. The integrated PT100 temperature sensor ensures precise temperature compensation, enhancing measurement accuracy across a range of process conditions.

The probe supports RS485 digital output, enabling seamless data transmission and integration with modern process controllers such as the HI510 Universal Process Controller. Its 5-meter direct-wire connection allows flexible installation, while the 3/4-inch NPT threaded design supports both inline and submersion mounting using compatible probe holders.

Gold sensor and chemically resistant PTFE junction for aggressive media.
Polymer electrolyte for reduced maintenance and extended probe life.
Body length of 140 mm and outer diameter of 22.5 mm for easy integration.
Operating temperature range: -5 to 100°C (23 to 212°F).
Maximum pressure rating: 6 bar (87 psi).
Digital RS485 output for reliable, interference-free signal transmission.

Typical use cases include water and wastewater treatment, chemical processing, laboratory process systems, and industrial automation lines where high-precision ORP measurement and robust sensor construction are essential.

Browse the full range of industrial ORP electrodes and professional process sensors at EnvMart to find the most suitable option for your application.
