Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-5m (16.4')

This digital process ORP probe from the HI2000 Series is an advanced industrial sensor ideal for continuous monitoring and control applications. Designed for robust industrial and laboratory settings, the probe offers a platinum sensor for exceptional redox measurement accuracy, protected by a chemically resistant PTFE junction and PVDF body. A built-in PT100 temperature sensor allows for real-time temperature-compensated readings, critical for water treatment, chemical processing, industrial automation, and environmental monitoring.

The probe supports a direct RS485 digital connection, transmitting measurement data reliably over long distances and integrating seamlessly into process control systems, including the HI510 Universal Process Controller. Installation is made easy with a ¾” NPT threaded connection for both in-line and submersion mounting. The 5 m (16.4’) cable provides flexible deployment in tanks, pipelines, and reactors. Double junction construction reduces contamination, making it well-suited for aggressive media and frequent cycling.

• Platinum sensor for ±2000 mV measurement range with high linearity.
• PTFE reference junction enhances chemical and fouling resistance, increasing probe longevity.
• PVDF body offers outstanding resistance to a wide range of chemicals and process fluids.
• Integrated PT100 temperature sensor for accurate and reliable compensation.
• Digital RS485 output ensures robust integration with industrial data networks.
• Operational from -5 to 100 ºC (23 to 212 ºF), suitable for harsh industrial environments.
• Maximum process pressure: 6 bar (87 psi) for versatile mounting options.

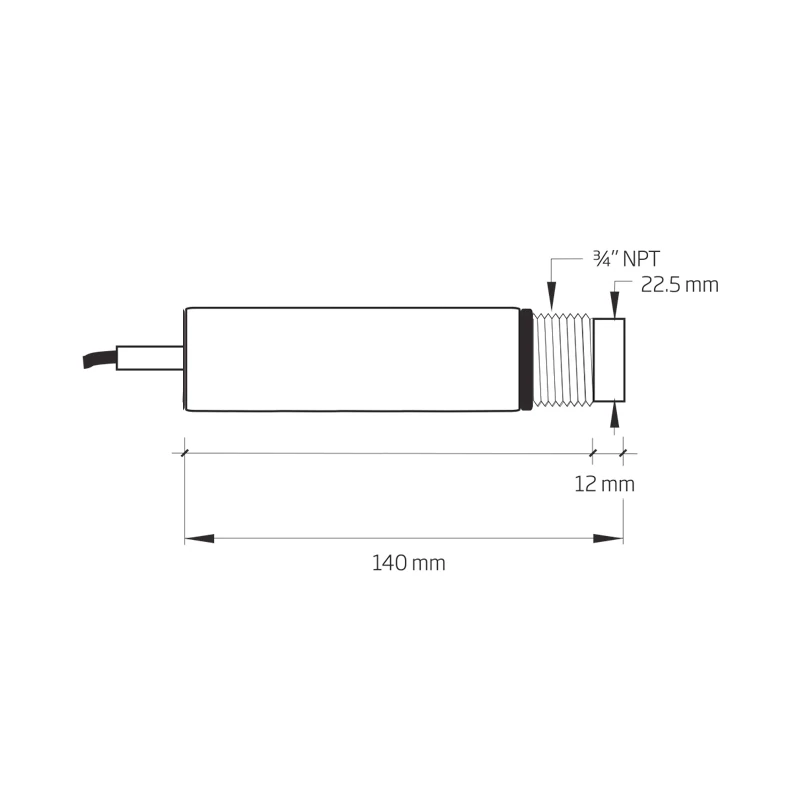

• Overall body length: 140 mm, outer diameter: 22.5 mm for compatibility with standard probe mounts.
• Direct wire connection for secure field deployment.
• Double junction and polymer electrolyte design extend service intervals in demanding use cases.

Industrial applications include water and wastewater treatment, industrial process control, food and beverage production, chemical manufacturing, environmental laboratories, and more. Ensure consistent process quality and regulatory compliance with this high-performance ORP probe.

Browse the full range of industrial process sensors and digital ORP electrodes on EnvMart for seamless integration and optimal process reliability.
