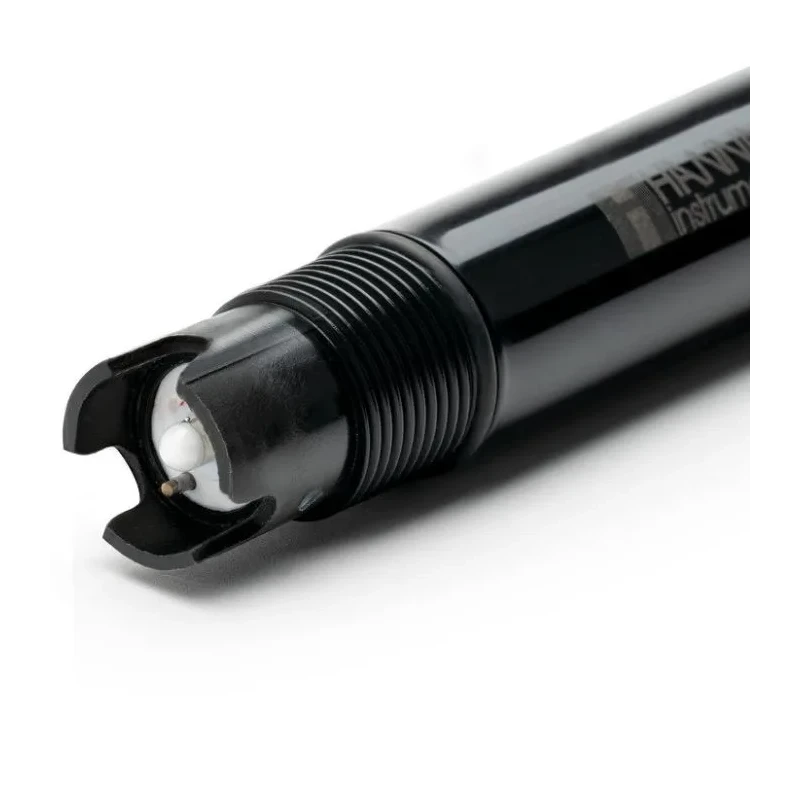

Digital Process ORP Probe HI2014-2815, Gold Sensor, Ceramic Junction, 15m, PVDF | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-15m (49.2')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-Ceramic-15m (49.2')
Brand: Hanna
SKU: 72338
Price: 742.46 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Package Contents	1 Digital Process ORP Probe, Gold Sensor, 15m cable
Measurement Range	±2000 mV
Body Material	PVDF
Operating Temperature	-5 to 100 °C
Environment	Industrial, Water/Wastewater, Chemical
Model	HI2014-2815
Cable Length	15 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection

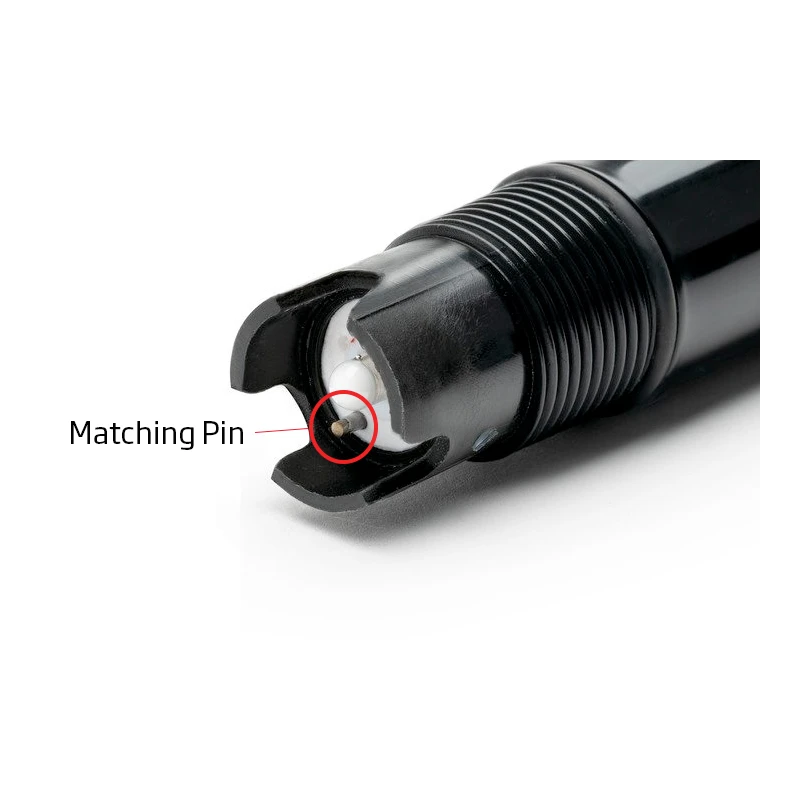

Matching Pin	yes
Max Pressure	6 bar
Sensor Material	Gold
Product Condition	New
MPN	HI2014-2815
Electrolyte Type	Polymer
Max Pressure (psi)	87 psi
Reference Junction Type	Ceramic Double Junction
Product Series	HI2000

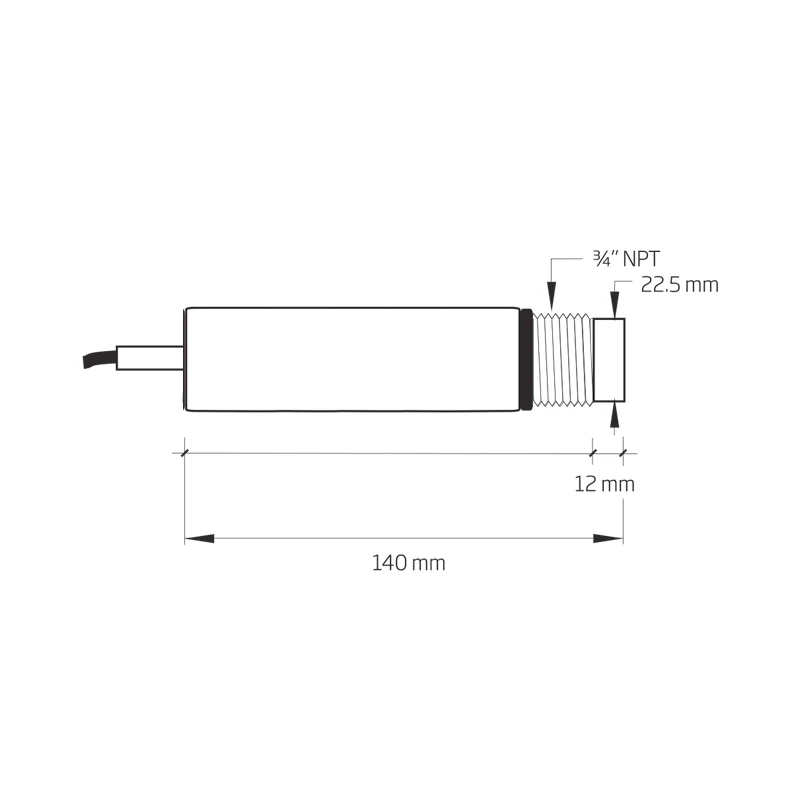

Probe Length (Overall/Body)	140 mm
Probe Outer Diameter	22.5 mm

Key Features

Digital ORP Probe HI2014-2815 delivers reliable oxidation-reduction potential (ORP) measurements for process control and monitoring. Gold sensor and ceramic double junction ensure superior chemical resistance and accuracy.

Equipped with a gold sensor and ceramic double junction for industrial applications.
Features an integrated pt100 temperature sensor for precise temperature compensation.
PVDF body offers chemical resistance and robust durability in harsh conditions.
Supports direct wire connection and digital RS485 output for seamless integration.
Designed for in-line or submersion mounting with 3/4" NPT threaded connection.
Operates effectively in environments from -5 to 100°C and up to max 6 bar pressure.
Probe outer diameter is 22.5 mm, with 15 meter cable for varied installation options.
Measurement range of ±2000 mV for versatile process monitoring needs.
Polymer electrolyte and double junction prevent contamination and extend probe life.
Compatible with HI510 Universal Process Controllers and other RS485 devices.

Product Description

The HI2000 Series Digital Process ORP Probe with model HI2014-2815 is optimized for industrial process monitoring and control of oxidation-reduction potential (ORP). This probe features a gold sensor with a robust ceramic double junction, delivering stable, accurate ORP measurements even in challenging chemical environments. The PVDF body ensures excellent resistance to corrosive chemicals, while the integrated pt100 temperature sensor enables precise temperature compensation for critical process monitoring.

High-purity gold sensor material for oxidation-reduction measurements over a ±2000 mV range.
Ceramic double reference junction and polymer electrolyte for enhanced chemical resistance and long probe life.
Built-in pt100 temperature sensor for reliable, temperature-compensated digital readings.
PVDF body construction delivers durability and resistance to aggressive cleaning and process chemicals.
3/4" NPT threaded connection for secure in-line mounting or use with submersion probe holder.
Direct wire connection and RS485 digital output provide seamless integration with industrial systems.
Probe operates in temperatures from -5°C to 100°C and pressures up to 6 bar (87 psi).
Outer diameter of 22.5 mm and 15 meter cable facilitate flexible installation.
Compatible with HI510 Universal Process Controller and applicable for water treatment, chemical processing, and manufacturing sectors.

Industrial use cases include process automation, water/wastewater treatment, chemical manufacturing, and other scenarios requiring accurate redox potential monitoring.
The set includes one HI2000 series digital ORP probe, gold sensor, built-in pt100, and 15m direct wire connection.
