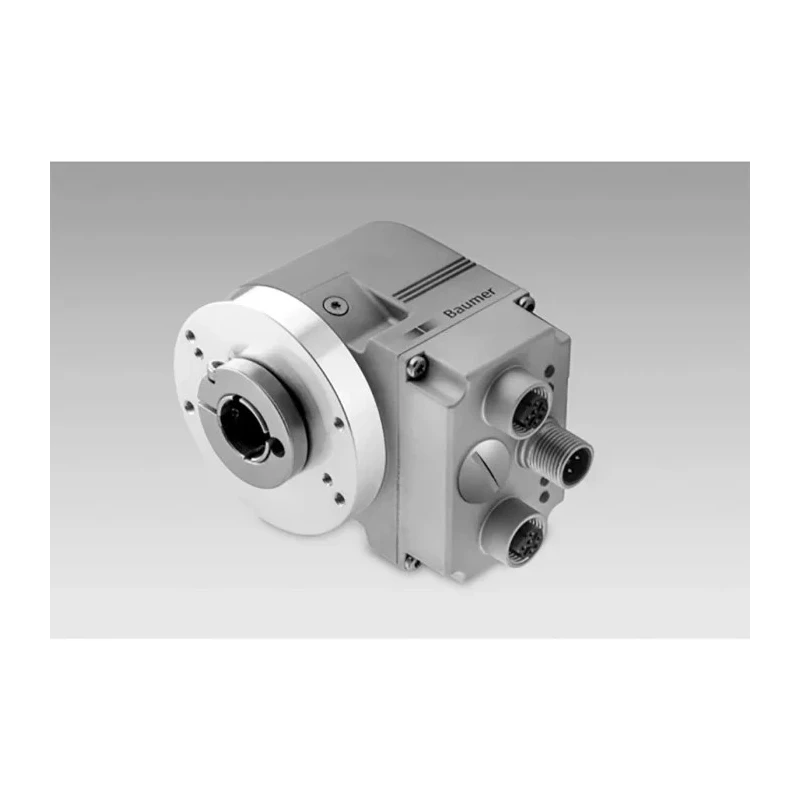

Baumer Optical Absolute Encoder 30V dc Analogue Signal Hollow Type 12 mm Shaft EAL580

Baumer EAL580 is an advanced optical absolute encoder designed for precise multi-turn position sensing in industrial automation and motion control applications. It features a robust hollow shaft design with a 12 mm diameter allowing versatile mechanical coupling options. Operated at 30V dc, this encoder provides an analogue output signal via a PROFINET interface using an M12 flange connector, facilitating seamless integration into industrial control systems.

With an IP65 ingress protection rating, it is well suited for harsh industrial environments, providing dust and splash water resistance. The device operates reliably over a broad temperature range from -40°C to 85°C, accommodating extreme operating conditions without performance degradation.

The encoder supports a high maximum rotational speed of 6000 rpm and delivers exceptional resolution with 18 bit for single turn accuracy and 16 bit for multi turn, ensuring precise position feedback. Its flange mount type offers secure and stable installation, enhancing reliability in dynamic industrial applications.

Additional features include maximum resistance against magnetic fields, which protects the sensor from electromagnetic interference, and an LED status display that provides real-time operational feedback for easier maintenance and troubleshooting.

Manufactured in Germany, the Baumer EAL580 encoder complies with UL standards, guaranteeing high quality and safety standards. This product is ideal for use in industrial automation, manufacturing equipment, robotics, and process control systems where precise position sensing and durability are critical.

Utilizes optical encoder technology for precise absolute positioning. Operates at a supply voltage of 30V dc with analogue output signal. Features a hollow shaft design with 12 mm diameter for flexible mounting. Supports PROFINET interface and M12 flange connector terminal.

IP65-rated for protection against dust and water spray. Wide operating temperature range from -40°C to 85°C for harsh environments. High maximum speed of up to 6000 rpm suitable for dynamic applications. Flange mount type ensuring stable installation.

Provides maximum resolution of 18 bit single turn and 16 bit multi-turn. Maximum resistance against magnetic fields enhances reliability. Equipped with LED status display for operational monitoring. Explore more quality sensors and motion control components in the Sensors category at EnvMart, where precision and reliability meet industrial demands.
