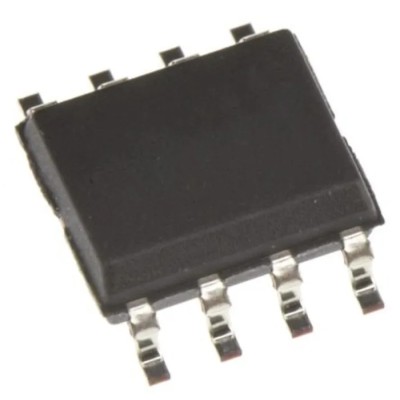

Melexis 3 Axis Surface Position Sensor 4.5 V to 5.5 V SPI Interface SOIC 8-Pin MLX90316KDC-BDG-100-RE
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Melexis |
| Response time | 400μs |
| Height | 1.52mm |
| Length | 4.8mm |
| Model | MLX90316KDC-BDG-100-RE |
| Technology | Hall Effect |
| Sensor Type | Position Sensor |
| Width | 3.81mm |
| Mount Type | Surface |
| Series | MLX90316 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 13.5mA |
| Magnetic Type | Monolithic |
Key Features
- Provides absolute angular position sensing of a small dipole magnet in a contactless manner.
- Monolithic magnetic sensor technology ensures robust angular accuracy over mechanical tolerances.
- Programmable angular range up to 360 degrees and linear transfer characteristics.
- Offers selectable analog (ratio metric), PWM, and serial protocol outputs.
- High thermal accuracy of 10-bit angular resolution and integrated 40-bit ID for device identification.
- Compact SOIC-8 form factor with height 1.52 mm, length 4.8 mm, width 3.81 mm.
- Wide operating temperature range from -40°C to 125°C.
- Supply current approximately 13.5 mA, with a response time of 400 microseconds.
Product Description
Melexis MLX90316KDC-BDG-100-RE is a high-precision, Hall Effect 3-axis surface position sensor designed for absolute angular position measurement of small dipole magnets above its surface. Featuring a monolithic magnetic sensor, this device provides contactless sensing which greatly enhances reliability and durability in demanding industrial and electronic applications.
This sensor supports a programmable angular range of up to 360 degrees and offers programmable linear transfer characteristics, allowing tailored calibration to specific requirements through the Melexis programming unit PTC-04. The sensor outputs are versatile with selectable analog ratio metric, PWM, or SPI serial protocols to suit a range of interface demands.
Housed in a compact SOIC-8 package with dimensions 4.8 mm length, 3.81 mm width, and 1.52 mm height, the sensor operates reliably over a wide temperature range from -40°C to 125°C. Its supply voltage ranges from 4.5 V to 5.5 V with a supply current of 13.5 mA and a fast response time of 400 microseconds.
The device includes a unique 40-bit ID for secure identification and is RoHS compliant, manufactured in Malaysia. Its robust magnetic design tolerates mechanical variations such as air gap and off-axis deviations, making it ideal for automotive, industrial automation, robotics, and advanced electronics.
Absolute rotary position measurement with contactless Hall Effect sensing. Monolithic sensor technology for robustness against mechanical tolerances. Programmable angular range and linear transfer function. Selectable outputs: analog, PWM, and SPI serial interface.
Compact SOIC-8 package. Wide operating temperature from -40°C to 125°C. Fast response time of 400 microseconds. RoHS compliant and manufactured in Malaysia. Ideal for industrial, automotive, and electronics applications.
This Melexis Position Sensor offers precise, programmable rotary sensing capabilities with robust operation, suitable for a multitude of electronic and industrial environments. Explore more sensors and position sensing components in our comprehensive Electronics & Electricals Sensors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a programmable angular range of up to 360 degrees, allowing for tailored calibration to specific requirements.
It supports an SPI interface, along with selectable analog ratio metric and PWM outputs, making it versatile for various applications.
The sensor operates within a supply voltage range of 4.5 V to 5.5 V.
The response time of this unit is 400 microseconds, ensuring quick detection of position changes.
The dimensions of the package are 4.8 mm in length, 3.81 mm in width, and 1.52 mm in height.
It operates reliably over a wide temperature range from -40°C to 125°C, suitable for various environments.
The supply current for this sensor is approximately 13.5 mA.
This sensor employs Hall Effect technology for contactless angular position sensing.
The maximum operating temperature is 125°C, allowing it to function in high-temperature environments.
Yes, the device is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It includes a unique 40-bit ID for secure device identification, enhancing its application in secure environments.
This position sensor is ideal for automotive, industrial automation, robotics, and advanced electronics applications due to its robust design.
