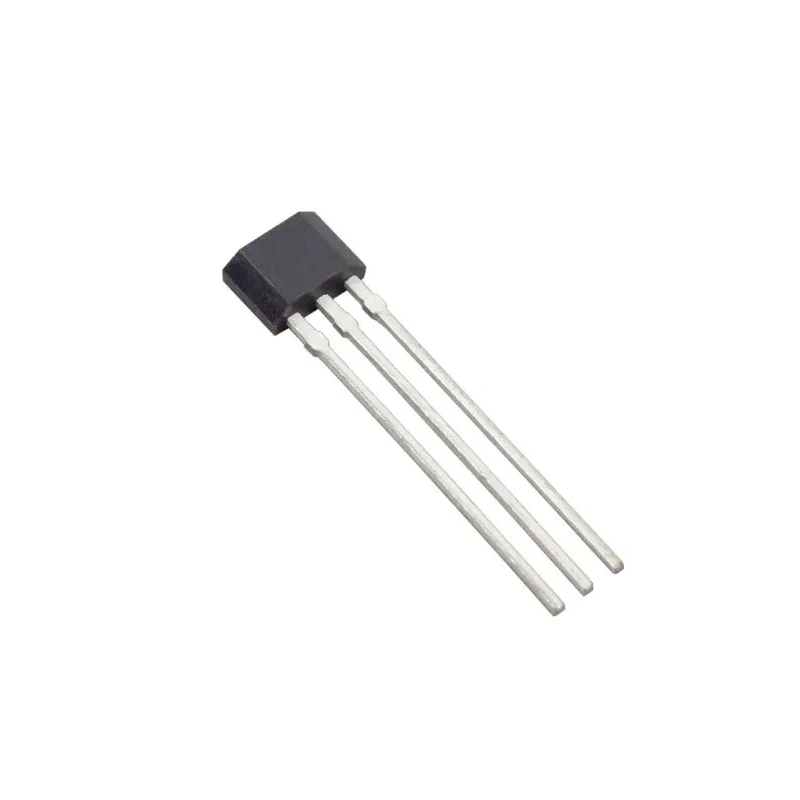

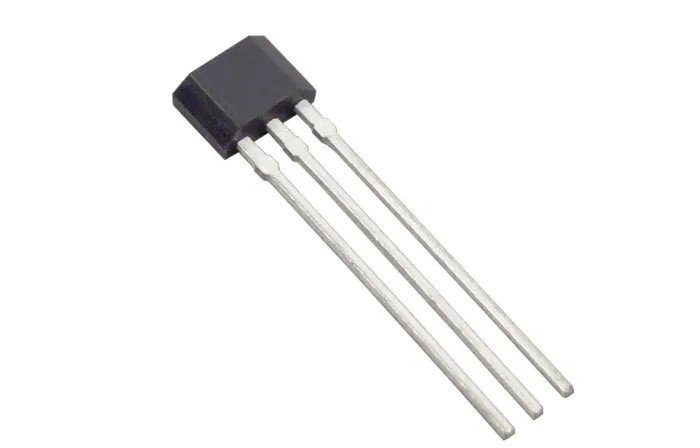

Melexis 1 Axis Through Hole Hall Effect Sensor 3.5 V to 24 V Supply, 3-Pin MLX90217LUA-CAA-000-BU

Melexis MLX90217LUA-CAA-000-BU is a 1 axis through hole Hall Effect sensor designed for precise magnetic sensing applications requiring a supply voltage range from 3.5 V to 24 V and featuring a 3-pin through-hole mount. This sensor is ideal for detecting rotary positions such as camshaft sensing in automotive systems and other speed sensing applications.

With a wide operating temperature range of -40°C to 150°C, it ensures reliable performance in harsh environments. The device features a unipolar magnetic sensing type and self-adjusting range capability, allowing for accurate detection without sensitivity to orientation.

It provides a digital output with an open collector that includes short-circuit protection, ensuring robustness in industrial applications. The sensor is equipped with an on-chip 10-bit analog-to-digital converter for enhanced resolution and fast response with no chopper delay, enabling high-speed operation.

Key functionalities include zero speed detection and compatibility with bias magnets oriented with the south pole facing the back side of the IC. This product is RoHS and EN 60749-20 compliant, meeting important environmental and quality standards.

The compact device has a width of 4.3 mm and comes in a UA package type. Operates within a supply voltage range of 3.5 V to 24 V. Wide operating temperature from -40°C to 150°C for harsh environments. 3-pin through hole mount for easy PCB integration.

Unipolar magnetic technology for precise position sensing. Digital output with open collector and short circuit protection. Includes on-chip 10-bit A/D converter for accurate measurement. Supports zero speed detection and orientation insensitivity.

High speed operation with no chopper delay. Compliant with RoHS and EN 60749-20 standards. Manufactured in Taiwan, Province Of China.

This Hall Effect Sensor IC is suitable for automotive camshaft sensing, industrial speed monitoring, position sensing in automation, and other motion sensing applications in electrical and electronic systems. Explore additional sensor ICs and motion sensors at EnvMart to find complementary components for your projects.
