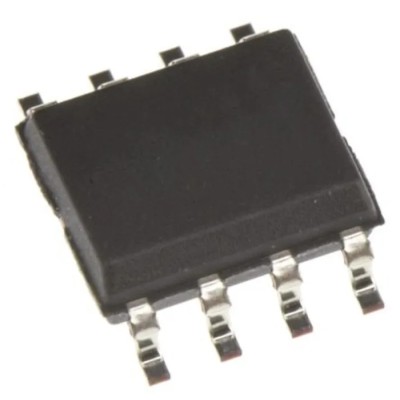

Melexis 3 Axis Surface Position Sensor 4.5 V 5.5 V SPI SOIC 8-Pin MLX90316KDC-BDG-100-RE
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Melexis |
| Response time | 400μs |
| Height | 1.52mm |
| Length | 4.8mm |
| Model | MLX90316KDC-BDG-100-RE |
| Technology | Hall Effect |
| Sensor Type | Position Sensor |
| Width | 3.81mm |
| Mount Type | Surface |
| Series | MLX90316 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 13.5mA |
| Magnetic Type | Monolithic |
Key Features
- The sensor uses contactless Hall effect technology for robust and accurate detection.
- It features a programmable angular range up to 360 degrees with linear transfer characteristics.
- Compact SOIC package enhances integration in electronic circuits.
- Operates reliably across a temperature range from -40°C to 125°C.
- Low supply current of 13.5 mA ensures energy efficient operation.
- Supports 3-axis magnetic field sensing for comprehensive position detection.
- Provides 10-bit angular thermal accuracy for precision applications.
- Equipped with a 40-bit ID number for secure identification and calibration.
Product Description
Melexis MLX90316KDC-BDG-100-RE is a 3-axis surface position sensor designed for precise absolute angular position measurement of a small dipole magnet rotating above its surface. Utilizing advanced Hall effect technology, this sensor detects the horizontal magnetic flux density component in a contactless and highly reliable manner.
Its monolithic design provides exceptional robustness against mechanical variations such as air gap and off-axis tolerances, making it suitable for demanding industrial and automotive applications requiring high precision. The output characteristics are fully programmable, supporting calibration with the Melexis PTC-04 programming unit exclusively via connector terminals.
Housed in a compact SOIC-8 package, the sensor operates within a supply voltage range of 4.5 V to 5.5 V and across an extended temperature range from -40°C to 125°C. It consumes a low supply current of 13.5 mA, enabling energy-efficient system designs. The device provides multiple output options including analog, PWM, and serial protocols through an SPI interface.
This Position Sensor achieves 10-bit thermal angular accuracy and embeds a 40-bit ID number for secure device identification and traceability. Its rapid 400 μs response time suits dynamic environmental sensing requirements.
The MLX90316KDC-BDG-100-RE is RoHS compliant and is manufactured in Malaysia, meeting environmental and regulatory standards. Typical applications include industrial automation, robotics, motor control systems, and other precision rotary position sensing needs in commercial and automotive sectors.
Contactless absolute angular position measurement using Hall effect technology. Monolithic sensor design for robustness against mechanical tolerances. Programmable angular range with linear transfer output. Compact SOIC-8 package suitable for PCB mounting.
Wide operating temperature range of -40°C to 125°C. Low power consumption with 13.5 mA supply current. SPI interface supporting analog, PWM, and serial data outputs. Rapid response time of 400 microseconds. Includes 40-bit device identification number.
Compliant with RoHS environmental standards. Explore a broad selection of electronic sensors and components at EnvMart to support your industrial, laboratory, and commercial projects with quality and reliability.
