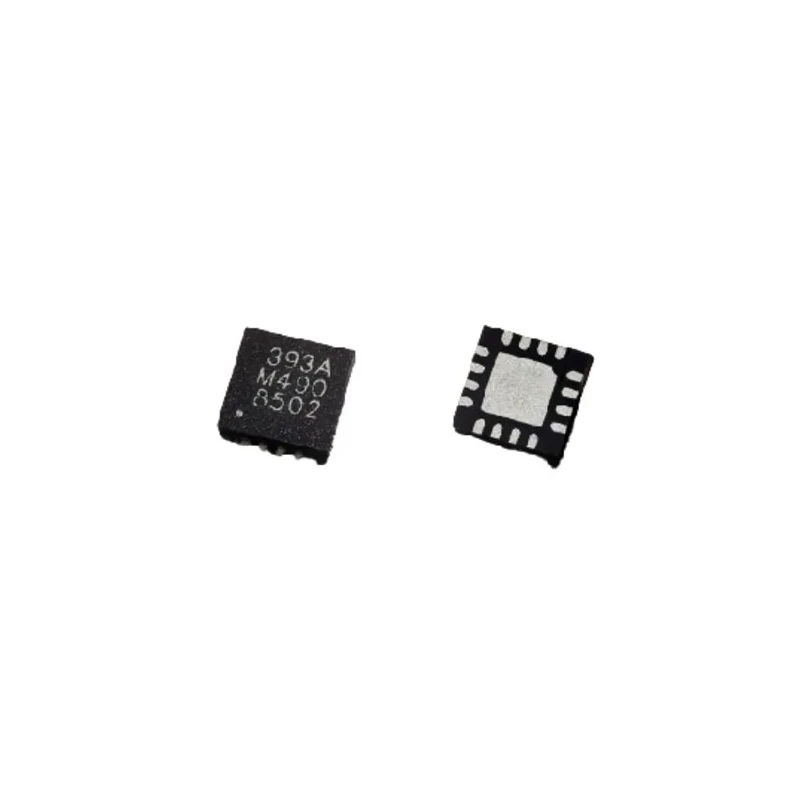

Melexis 3 Axis Surface Hall Effect Sensor 2.2 V to 3.6 V I2C/SPI Interface QFN 16-Pin MLX90393SLW-ABA-011-RE
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Melexis |
| Height | 800μm |
| Length | 2.9mm |
| Model | MLX90393SLW-ABA-011-RE |
| Technology | Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | MLX90393 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -20°C |
| Number of axis | 3 |
| Interface Type | I2C/SPI |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
Key Features
- The sensor operates on a supply voltage from 2.2 V to 3.6 V for flexible system integration.
- It features a compact QFN package with 16 pins, sized at 2.9 mm x 2.9 mm x 0.8 mm.
- The device supports programmable duty cycles from 0.1% to 100% for optimized power consumption.
- The onboard temperature sensor enhances measurement accuracy under varying conditions.
- Designed compliant with automotive standard AEC-Q100 and RoHS directives.
- Suitable for micro-power applications requiring a wide dynamic range and selectable SPI or I2C bus protocols.
- Operates in ambient temperatures from -20°C to 85°C, enabling robust performance in diverse environments.
- Applications include industrial, automotive, and precise magnetic sensing requirements.
Product Description
Melexis MLX90393SLW-ABA-011-RE is an advanced 3 Axis Surface Hall Effect Sensor designed for precision magnetic field detection with a wide supply voltage range between 2.2 V and 3.6 V. It utilizes both I2C and SPI digital interfaces allowing flexible communication options for embedded system designs. Housed in a compact 16-pin QFN package with dimensions of 2.9 mm length, 2.9 mm width, and 0.8 mm height, this sensor is ideal for tiny assemblies and space-constrained applications.
The sensor incorporates programmable duty cycles ranging from 0.1% to 100%, optimizing power consumption especially for micro power applications. Its robust magnetic design offers a wide dynamic range with on-the-fly programmable gain and onboard filtering capabilities. The device is capable of internal and external triggering acquisition modes and provides an external interrupt pin for changes in magnetic field detection, enhancing real-time responsiveness.
Operating across a temperature range of -20°C to 85°C, the MLX90393SLW-ABA-011-RE meets automotive standards including AEC-Q100 and complies with RoHS directives, assuring high-quality manufacturing and environmental compliance. An embedded temperature sensor ensures consistent measurement accuracy under varying thermal conditions.
This sensor is well-suited for industrial, automotive, laboratory instrumentation, HVAC systems, manufacturing equipment, and other commercial uses that demand precise and reliable 3-axis magnetic field sensing.
The device supports I2C and SPI interfaces for flexible integration. Small QFN package size facilitates compact system design. Automotive grade with AEC-Q100 certification. Wide operating temperature range ensures reliability in diverse environments.
Programmable power modes allow customization of power consumption. For further exploration, browse other Melexis sensors and Hall Effect Sensor products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates on a supply voltage range from 2.2 V to 3.6 V, allowing for flexible system integration.
It supports both I2C and SPI digital interfaces, providing flexible communication options for embedded systems.
The sensor is housed in a compact QFN package measuring 2.9 mm in length, 2.9 mm in width, and 0.8 mm in height.
It operates effectively in ambient temperatures ranging from -20°C to 85°C, ensuring robust performance in diverse environments.
This model measures magnetic fields across three axes, providing comprehensive magnetic sensing capabilities.
The maximum operating temperature for the MLX90393SLW-ABA-011-RE is 85°C.
Yes, it features an onboard temperature sensor that enhances measurement accuracy under varying thermal conditions.
This sensor has a pin count of 16, facilitating its connection in various applications.
It is designed to meet the automotive standard AEC-Q100, ensuring its suitability for automotive applications.
The sensor supports programmable duty cycles ranging from 0.1% to 100%, optimizing power consumption for micro-power applications.
The sensor is manufactured in Malaysia.
It is suitable for various applications including industrial, automotive, laboratory instrumentation, and HVAC systems that require precise magnetic sensing.
