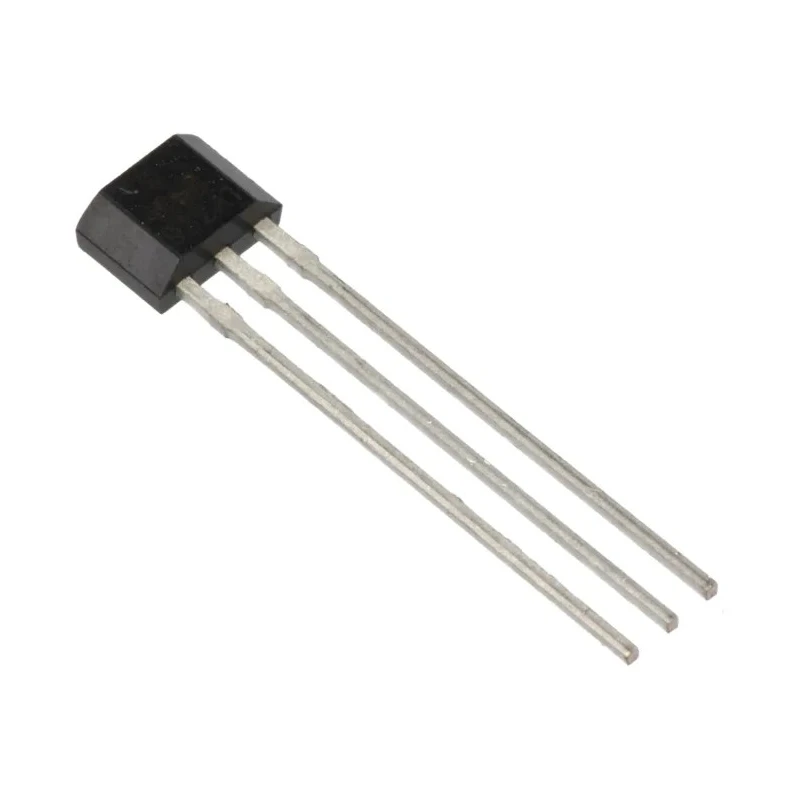

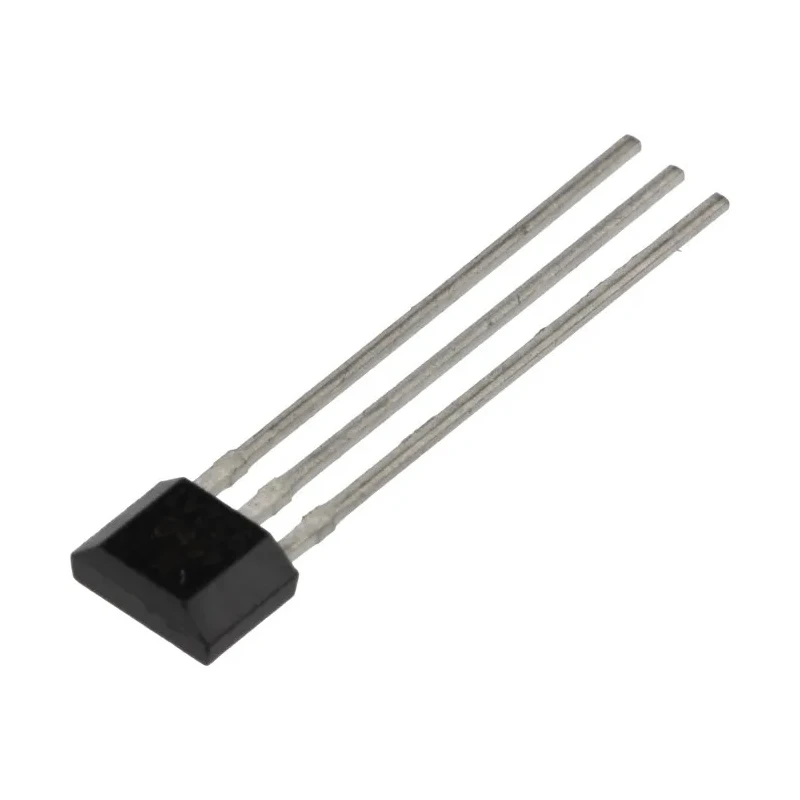

Honeywell Technologies Through Hole Hall Effect Sensor Linear Magnetic IC, TO-92, 3-Pin, 2.7V-6.5V Supply SS49E

Honeywell Technologies SS49E is a through-hole, 3-pin Hall Effect linear magnetic sensor IC housed in a compact TO-92 package, designed for precise conversion of magnetic field variations into electrical signals. It operates from a flexible supply voltage range of 2.7 V to 6.5 V, making it suitable for diverse power arrangements in electronic and automation systems.

The sensor consumes a low supply current of 6 mA, ensuring minimal power draw in continuous operation. It features a linear output response with 25% sensitivity, providing responsive detection of magnetic fields with a response time of approximately 3 seconds, ideal for steady-state measurement scenarios.

With dimensions of approximately 4.06 mm in length, 3 mm in width, and 1.7 mm in height, the small footprint facilitates placement on densely populated circuit boards. The device's through-hole mounting style is compatible with standard drilled prototype boards and supports reliable mechanical connection and soldering.

The operating temperature range of -40°C to 100°C allows this sensor to perform reliably in challenging industrial, laboratory, automotive (non-certified), HVAC, and manufacturing environments. Typical applications include position sensing in linear actuators and slides, current sensing in power-control circuits, motion detection in factory automation, and proximity detection in mechanical assemblies.

As an IC with a 3-pin interface, it requires simple electrical connections for supply voltage, ground, and output signal, enabling straightforward integration into analogue or digital signal processing designs. The SS49E sensor represents a dependable and versatile choice for magnetic field sensing needs.

Operates from 2.7 V to 6.5 V supply voltage, enabling flexible power arrangements. Low supply current of 6 mA reduces overall system power consumption. Linear output with 25% sensitivity provides accurate magnetic field measurement.

Through-hole TO-92 package allows easy mounting and soldering on drilled boards. Wide temperature range from -40°C to 100°C supports various application environments. Response time approximately 3 seconds for steady-state measurement support.

Compact size (4.06 x 3 x 1.7 mm) suitable for dense PCB layouts. Applicable for position sensing, current sensing, motion detection, and proximity sensing. Explore Honeywell Technologies sensors and related products at EnvMart for your next project or industrial application.
