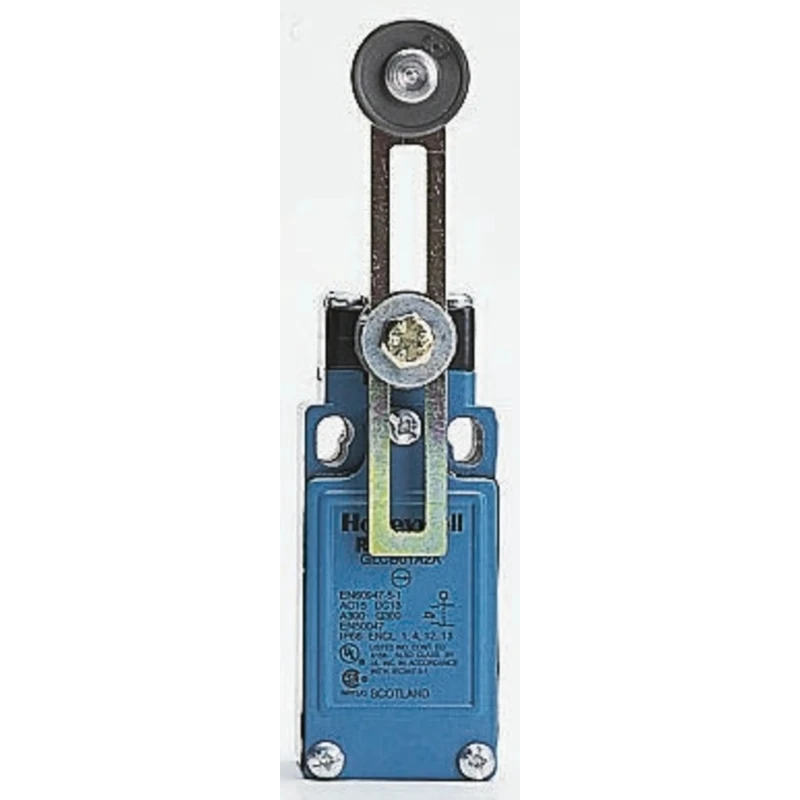

Honeywell Technologies GLD Series Roller Plunger Limit Switch, SPDT, IP66, Fibreglass Reinforced Thermoplastic GLDB07C

Honeywell Technologies GLDB07C is a GLD Series Roller Plunger Limit Switch featuring a single pole double throw (SPDT) snap action contact configuration. It incorporates a fibreglass reinforced thermoplastic housing with an IP66 rating, making it suitable for harsh and wet industrial environments.

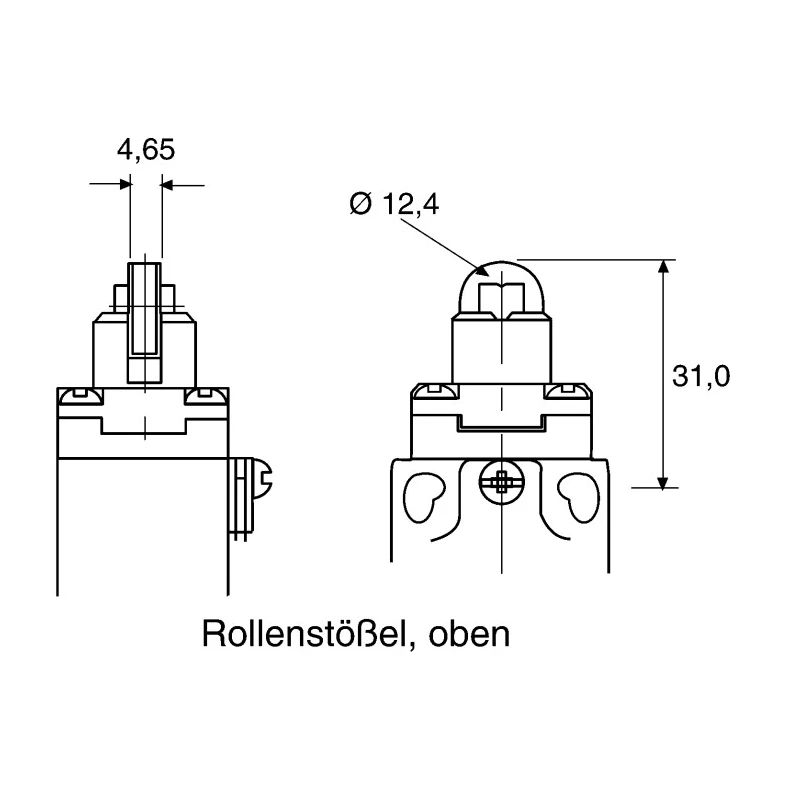

The roller plunger actuator is positioned on the top, enabling precise activation. With a rugged construction adhering to Standard EN50047 and certified to CCC, CE, CSA, and UL standards, this limit switch assures reliable operation and safety compliance.

Designed to operate over a broad temperature range from -40°C to +85°C, the GLDB07C supports a switching current of 6 amperes and can handle switching voltages up to 250 V DC and 240 V AC. The mechanical life expectancy is rated at 10 million cycles, highlighting its durability for long-term industrial use.

This model features one normally closed (NC) and one normally open (NO) contact, offering circuit flexibility for industrial automation. The device uses screw terminals and PG13.5 conduit entry suitable for secure wiring installations.

The compact dimensions (68.5 mm length, 30.5 mm width, 26.35 mm depth) allow installation in constrained spaces. The operating force is a maximum of 16 Newtons, ensuring precise actuation without excessive mechanical load.

Honeywell GLD and GLC Series limit switches are widely used in industrial automation, manufacturing control systems, elevators, escalators, scissor lifts, platform lifts, and other position sensing applications. Their modular design allows easy customization of bodies, contact blocks, and actuators for diverse operational needs.

Constructed from fibreglass reinforced thermoplastic for enhanced durability. IP66 rating ensures protection against dust and water ingress. Single pole double throw (SPDT) contact configuration for versatile circuit control.

Mechanical life of up to 10 million cycles demonstrates long-term reliability. Wide operating temperature range from -40°C to 85°C supports harsh environments. Compact dimensions allow installation in tight spaces. Suitable for industrial automation and control in elevators, lifts, and escalators.

Certified to CCC, CE, CSA, and UL standards for global compliance. Explore Honeywell Technologies products and other Limit Switches in EnvMart's Electronics & Electricals catalogue to find high-performance and reliable industrial components.
