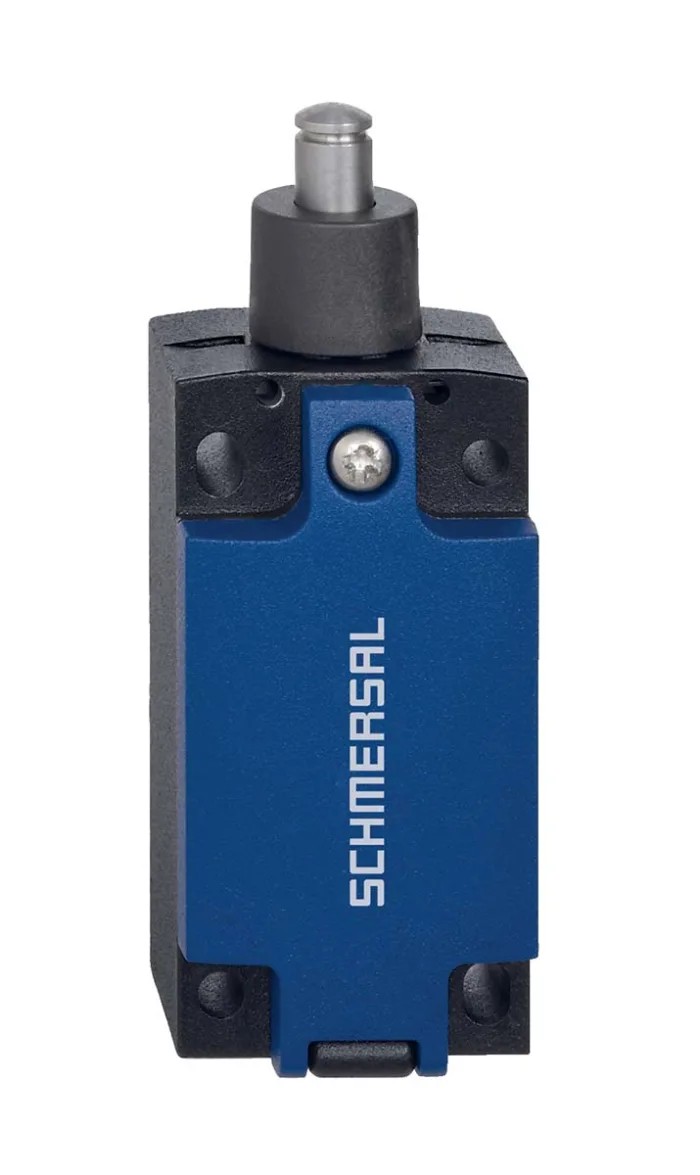

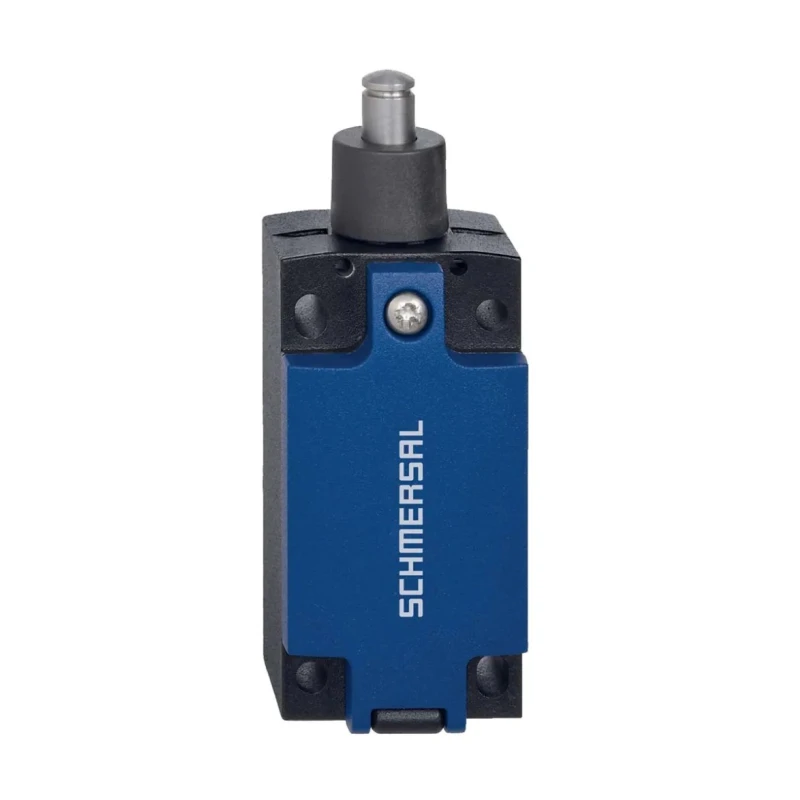

Schmersal PS315-Z12-S300 Series Plunger Limit Switch, 1 NO/2 NC, IP67/IP66 Protection, Die Cast Zinc Metal 103015098
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 37mm |
| IP Rating | IP67, IP66 |
| Width | 41mm |
| Housing Material | Die Cast Zinc, Metal |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS315-Z12-S300 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Plunger |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Screw |
| Hazardous Area Certification | ISO 13849-1 |
| Standards/Approvals | IEC 60947-5-1 |
| Operating Force | 50N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1 x M20 x 1.5 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Robust die cast zinc metal housing ensures durability and protection against mechanical impact.
- Complies with IP67 and IP66 standards for superior resistance to dust and water ingress.
- Operates on 240V AC voltage with a switching current rating of 3A for reliable switching performance.
- Silver electrical contacts provide excellent conductivity and longevity.
- Designed for industrial environments with mechanical life of 10,000,000 operations.
- Compact dimensions with length 37mm and width 41mm for flexible installation options.
- Screw-type terminal connectors offer secure and easy wiring.
- Operates within temperature range of -30°C to 80°C suitable for harsh conditions.
Product Description
Schmersal 103015098 PS315-Z12-S300 Series Plunger Limit Switch is designed for reliable mechanical position monitoring and control in industrial automation and safety applications.
The device features a robust die cast zinc metal housing that provides mechanical stability and protection against harsh environments. With an IP67 and IP66 rating, it offers excellent protection against dust ingress and water jets, making it suitable for use in manufacturing, machinery, HVAC, and process automation sectors.
This limit switch utilizes a plunger actuator mechanism combined with silver electrical contacts to deliver precise switching with a current rating of 3A at 240V AC. It includes 1 normally open (NO) and 2 normally closed (NC) contacts, allowing versatile control schemes for various industrial control panels.
The terminal connections are screw-type, facilitating secure installation and maintenance. The compact size of 37mm length by 41mm width allows it to fit into constrained spaces without compromising performance.
Engineered for longevity, the switch boasts a mechanical life expectancy of 10,000,000 operations and complies with IEC 60947-5-1 and ISO 13849-1 standards, supporting high safety and reliability requirements in industrial setups.
Its operating temperature range from -30°C to 80°C and an actuation force of 50 Newtons make it suitable for challenging factory floor conditions, ensuring consistent and dependable performance.
This plunger limit switch is ideal for industrial electrical control systems requiring high precision, durability, and safety compliance. Explore the EnvMart catalog for more Schmersal Limit Switches and automation components to enhance your industrial control applications.
Robust die cast zinc metal housing for mechanical durability. IP67 and IP66 protection for dust and water resistance. 1 NO and 2 NC contact configuration for versatile switching. Rated at 240V AC and 3A switching current.
Silver electrical contacts for reliable conductivity. Mechanical life of 10 million operations for long service. Screw terminal connections for secure wiring. Compact dimensions for flexible mounting options. Operates between -30°C and 80°C for industrial environments.
Certified to IEC 60947-5-1 and ISO 13849-1 standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 3A at 240V AC, ensuring reliable switching performance in industrial applications.
The dimensions of this unit are 37mm in length and 41mm in width, allowing for flexible installation options in constrained spaces.
It boasts a mechanical life expectancy of 10,000,000 operations, making it suitable for long-term industrial use.
This model utilizes a plunger actuator mechanism, which is designed for precise mechanical position monitoring and control.
It has an IP67 and IP66 rating, providing superior resistance to dust ingress and water jets, suitable for harsh environments.
It features silver electrical contacts, which provide excellent conductivity and longevity in operation.
The operating temperature range is from -30°C to 80°C, making it suitable for challenging factory floor conditions.
This limit switch has screw-type terminal connections, which facilitate secure and easy wiring during installation.
It complies with IEC 60947-5-1 and ISO 13849-1 standards, supporting high safety and reliability requirements in industrial setups.
It has a contact configuration of 1 normally open (NO) and 2 normally closed (NC) contacts, allowing for versatile control schemes.
The operating force required for actuation is 50 Newtons, ensuring reliable performance under various conditions.
This limit switch is manufactured in Germany, reflecting the quality and engineering standards associated with the brand.
