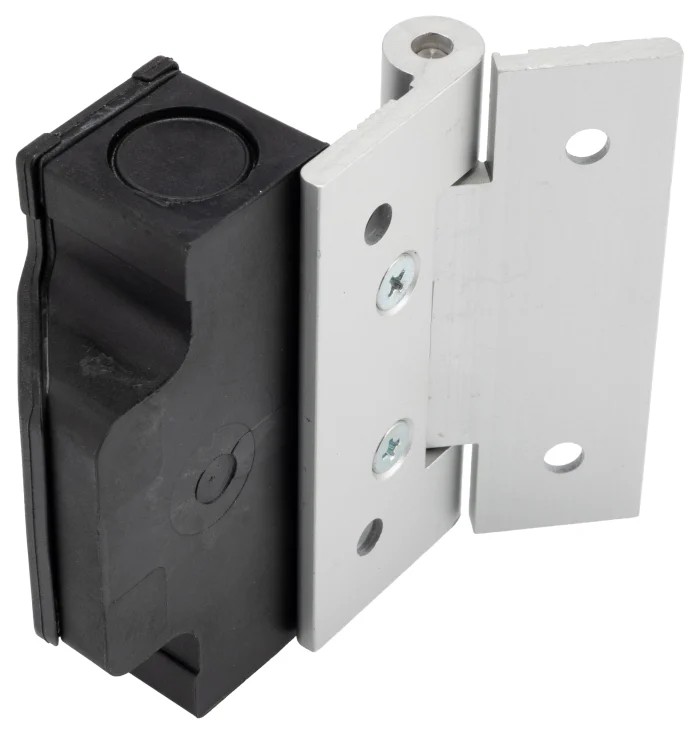

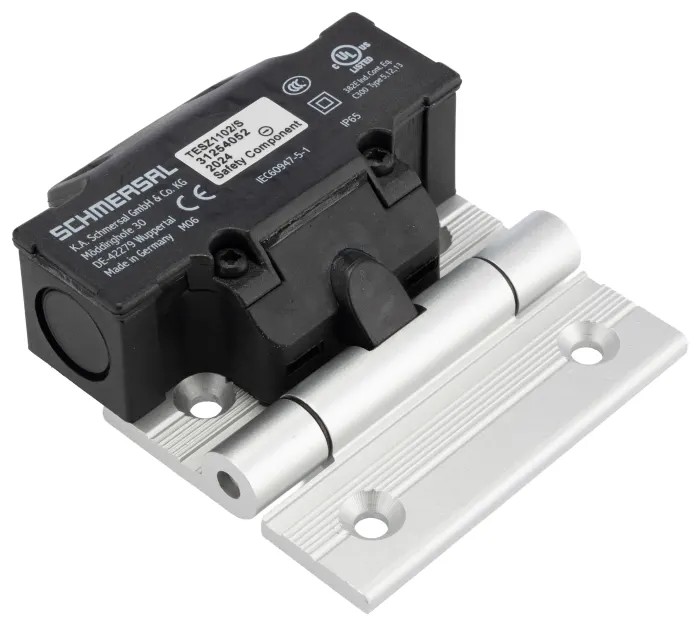

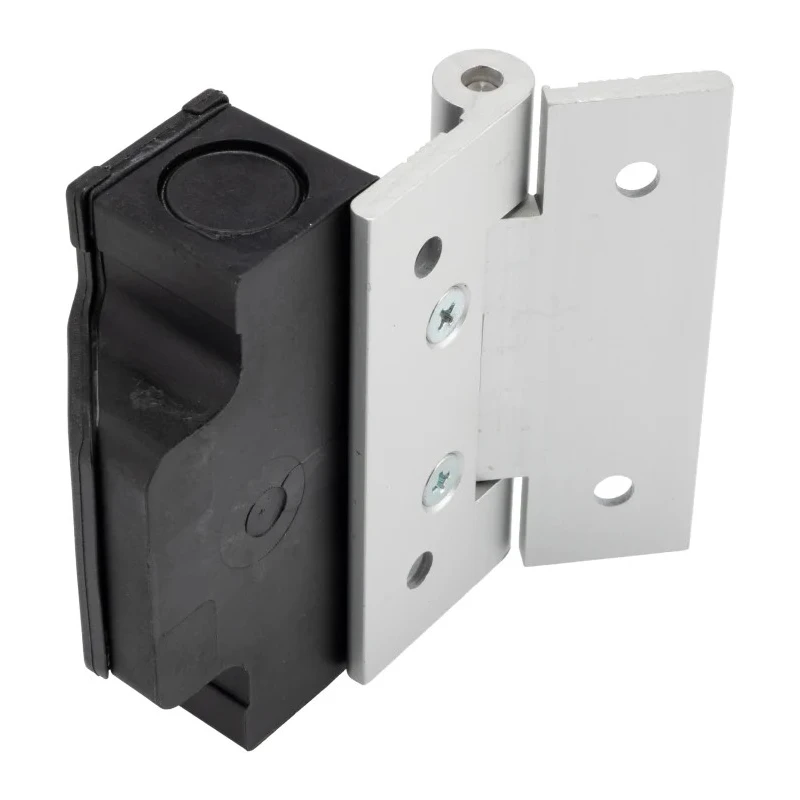

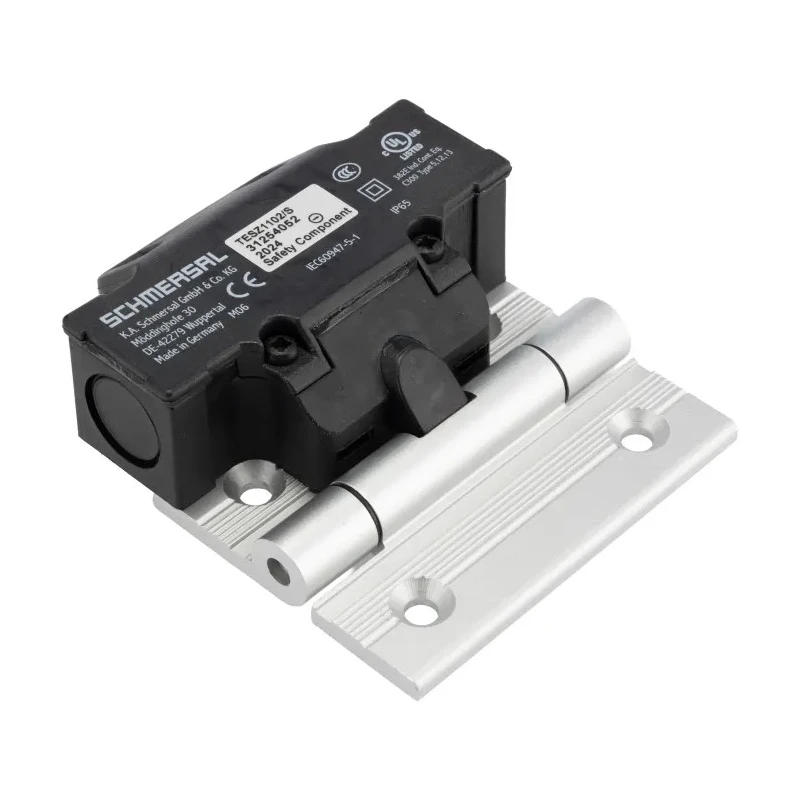

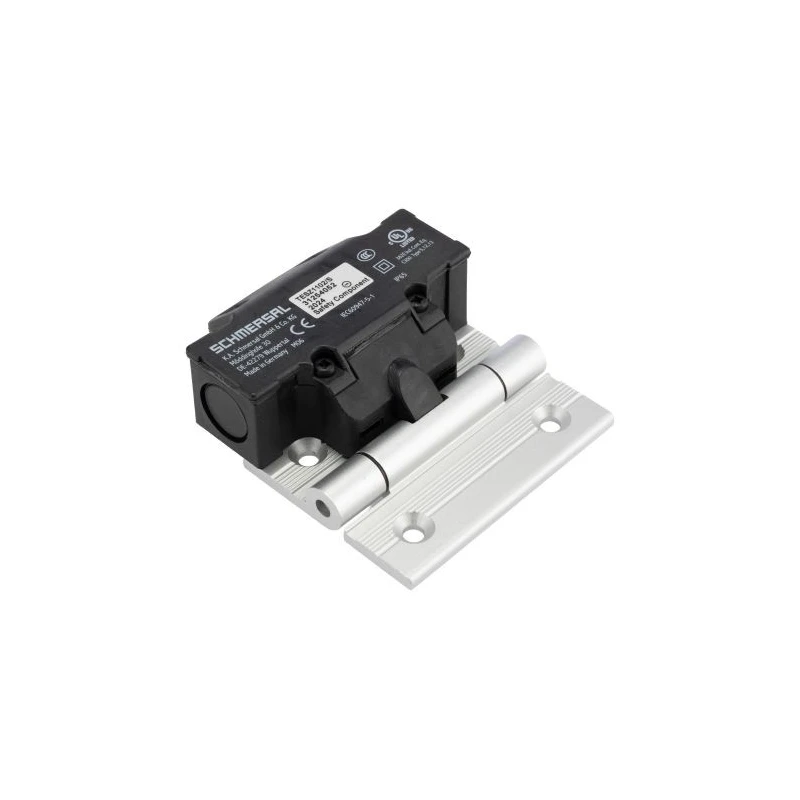

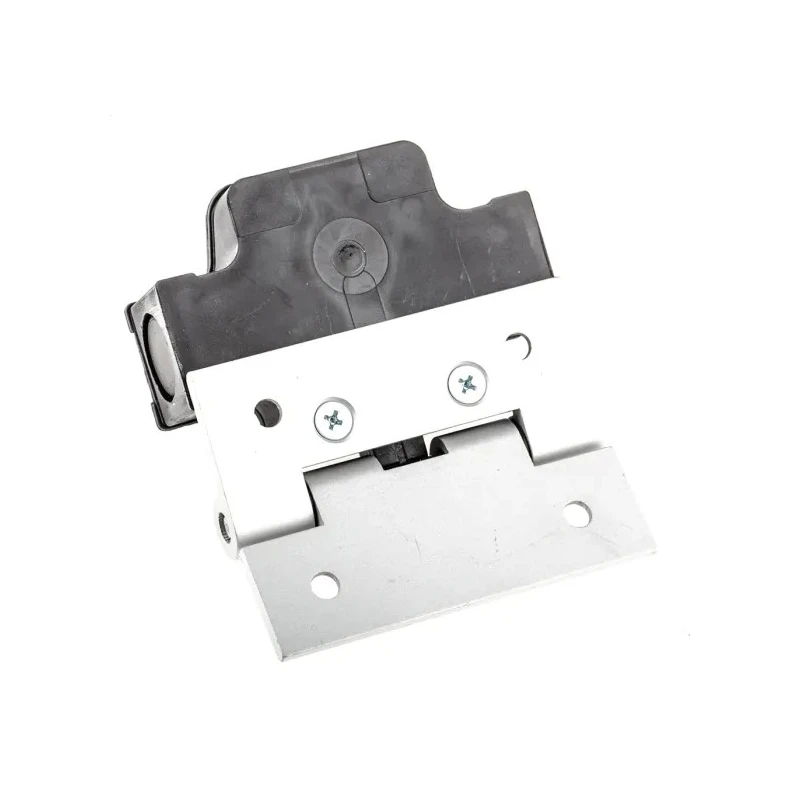

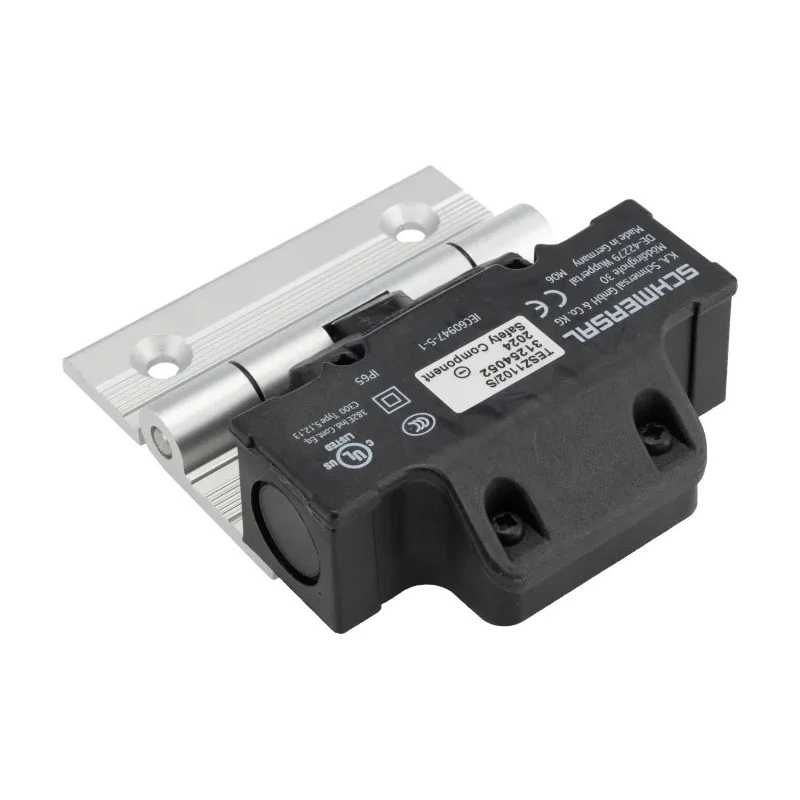

Schmersal Safety Hinge Switch 1 NO/2 NC Plastic Housing M20 x 1.5, Operating Temp -25°C to 65°C TVS 400-12/B-M20

Schmersal TVS 400-12/B-M20 safety hinge switch is a precision-engineered device designed to control access to hazardous or restricted areas by automatically breaking electrical circuits when the guard or door is opened. It features a durable plastic housing and a contact configuration of 1 Normally Open (NO) and 2 Normally Closed (NC) contacts.

With an operating temperature range from -25°C to 65°C, this switch performs reliably in demanding industrial environments including metal fabrication, printing and paper manufacturing, electrical assembly, and special machine construction. The M20 x 1.5 cable entry size and screw terminal connection ensure secure and maintenance-friendly installation. The hinge switch supports a trigger angle range of 4°, allowing precise activation.

The mechanical design guarantees a lifespan of up to 1,000,000 operations, ensuring dependable long-term performance. It complies with IEC/EN 60947-5-1 standards, ensuring safety in low voltage switchgear and control gear applications. Double insulation prevents electrical interference from nearby equipment, minimizing false signals and enhancing safety.

The robust plastic housing offers long-lasting durability and low maintenance requirements. Operating temperature range is from -25°C to 65°C to suit challenging environments. Screw terminal type and two cable entries with PG13.5 size enable secure wiring connections.

Mechanical life rated at 1,000,000 operations ensures extended service life. Suitable for use in metal industry, printing, paper industries, electrical manufacturing, and special machine construction. Features a trigger angle range of 4 degrees for precise operation.

Rated for AC voltage 230V and DC voltage 24V contact voltages. Meets IEC/EN 60947-5-1 safety standard for low voltage switchgear and control gear. Double insulation protects against electrical interference from other equipment.

Mountable on guards or doors on both left-hand and right-hand sides with universal fixings.

This safety hinge switch is essential for industrial safety interlock applications and contributes to secure automation processes. It is manufactured in Germany and designed for easy installation and minimal service requirements. Explore the range of Schmersal safety components on EnvMart to enhance workplace safety and reliability.
