IDEM Safety Interlock Switch Mechanical Bolt Metal Housing Power Lock M-BS (A102)

Free Delivery in India | Lowest Global Shipping Charges

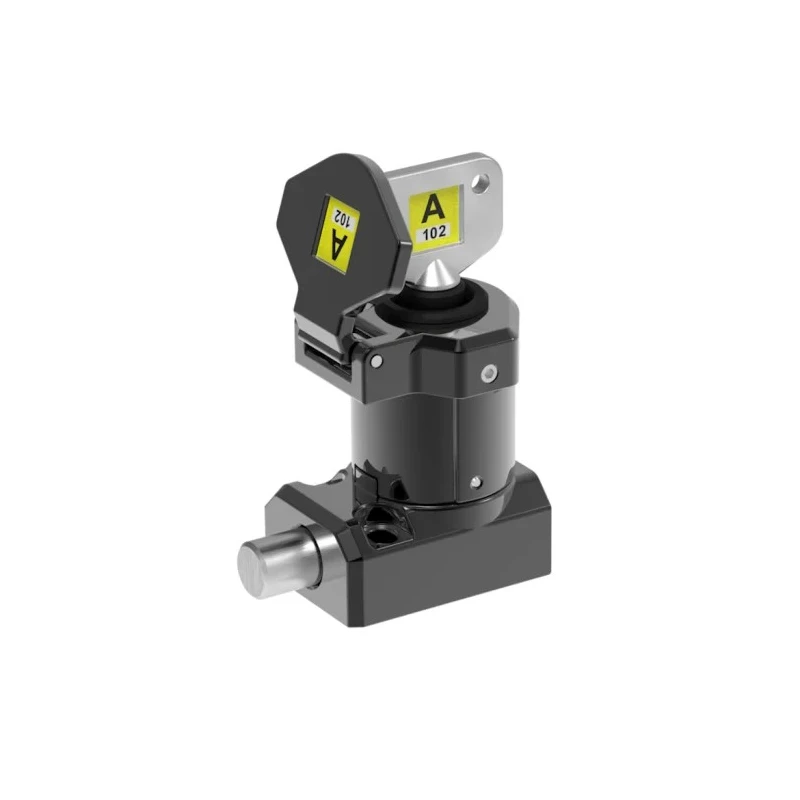

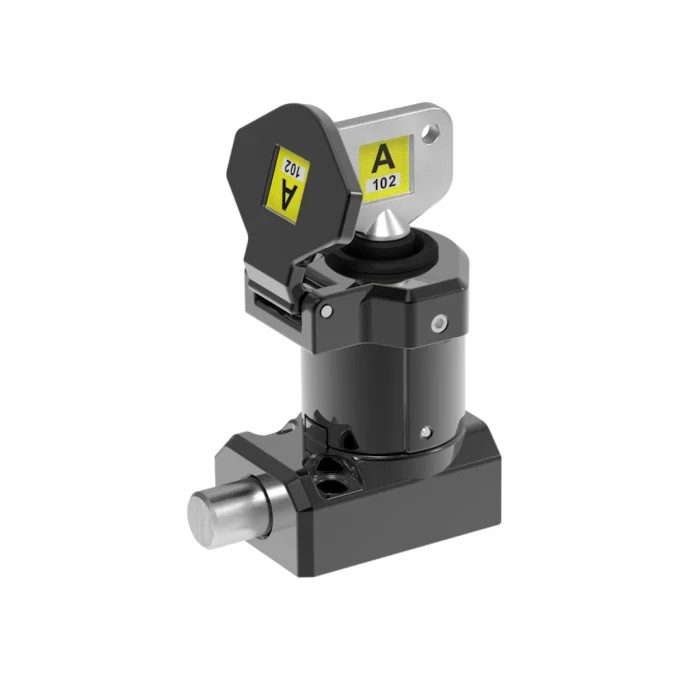

IDEM Safety Interlock Switch Mechanical Bolt Metal Housing Power Lock M-BS (A102)

Name: IDEM Safety Interlock Switch Mechanical Bolt Metal Housing Power Lock M-BS (A102)
Brand: IDEM
SKU: 421284
Price: 20.22 USD
Availability: InStock



Category Safety Interlock Switch Brand IDEM Condition New

Specifications

Country of Origin	United Kingdom
Brand	IDEM
Length	84mm
Model	M-BS (A102)
Depth	109mm
Width	26mm
Housing Material	Metal
Series	M-BS
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Lock Type	Power
Lock Style	Mechanical Bolt

Key Features

Operates on the principle of bolt locking and key release for safety interlocking.
Suitable for use with Isolator Switch or Key Exchange Systems in multi-key configurations.
Manufactured from die-cast metal with a high mirror polished finish for durability.
Designed to withstand SIP and CIP cleaning with detergents at high temperatures and pressure.
Certified to international standards including IEC 60947-5-1 and UL 508 for safety compliance.
Operates reliably within a temperature range from -25°C to 50°C.
Compact dimensions of 84mm length, 109mm depth, and 26mm width ensure easy installation.
Does not include an actuator and has a power lock type mechanism.

Product Description

The IDEM M-BS (A102) Safety Interlock Switch features a mechanical bolt lock housed in robust metal material, providing secure power interlocking solutions for guarded areas. It operates by extending the bolt when the key is free and locked in position, enabling a secure key transfer system within Isolator Switch or Key Exchange Systems as part of multi-key safety setups.

The bolt can only be retracted when the key is inserted, trapping the key to prevent unauthorized access while allowing safe power control. The device is manufactured from die-cast metal with a high mirror polished finish that endures high-pressure cleaning and temperature-resistant detergent exposure, making it suitable for demanding industrial environments.

This mechanical bolt safety interlock switch meets several international standards, including IEC 60947-5-1, EN 1088, EN62061, ISO 13849-1, EN60204-1, and UL 508, ensuring compliance and reliability in safety control applications. Operating temperatures range from -25°C to 50°C, making it suitable for a wide range of industrial and commercial environments.

Operates by mechanical bolt locking with key trapping mechanism to secure guarded areas. Compatible with Isolator and Key Exchange Systems for integrated multi-key safety management. Die-cast metal housing with high mirror polish ensures robustness and easy cleaning with detergents.

Designed for SIP and CIP cleaning withstanding high-pressure washing. Meets IEC 60947-5-1, EN 1088, EN62061, ISO 13849-1, EN60204-1, and UL 508 standards. Effective operating temperature range from -25°C to 50°C. Compact dimensions facilitate installation in tight spaces (84mm L × 109mm D × 26mm W).

Suitable for industrial, manufacturing, automation, and safety control applications.

The IDEM M-BS (A102) is a reliable, precision-engineered solution for safety interlock switching needs in industrial automation, electrical safety systems, and manufacturing plant safety equipment. Ensure compliance with safety regulations and reduce downtime with its mechanical reliability and durable construction.
