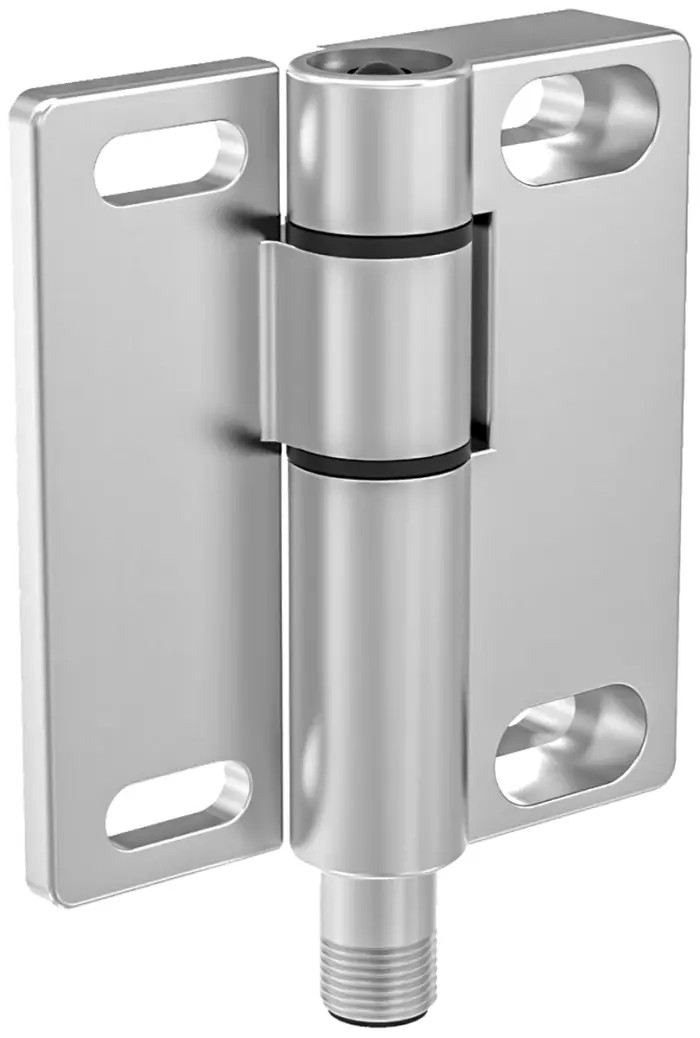

Banner SI-HG80 Safety Hinge Switch SPDT with Die Cast Zinc Housing, IP67, 3A Contact Current, 250V AC, 80mm Shaft Length HG80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Banner |
| Material | Zinc die-cast |
| Height | 19mm |
| Operating Temperature Range | -25 to +70 °C |
| Length | 97mm |
| Model | HG80 |
| IP Rating | IP67 |
| Width | 72mm |
| Housing Material | Die Cast Zinc, Gadolinium, Zinc |
| Series | SI-HG80 |
| Operating Range | 0° to 180° |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Contact Rating | 3.0A at 250 Vac, 0.5A at 60 Vdc |
| Cable Entry Size | M12 x 1 mm |
| Minimum Operating Temperature | -25°C |
| Shaft Length | 80mm |
| Terminal type | 4-Pin |
| Hinge Material | Die Cast Zinc |
| Contact DC Voltage | 60V dc |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 250V ac |
| Contact Current | 3A |
| Number of Cable Entries | 1 |
| Trigger Angle Range | 0-180° |
| Banner SI-HG63A Hinge for SI-HG63A SwitchBrand | Banner |
Key Features
- The switch features die cast zinc housing with gadolinium and zinc materials for durability.
- It supports SPDT contact configuration with a contact current rating of 3A at 250V AC.
- The operating temperature range spans from -25°C to 70°C for versatile industrial use.
- The hinge operates within a full 180° range with an adjustable switching point.
- IP67 rated for water and dust resistance, suitable for harsh environments.
- Equipped with a 4-pin terminal type and M12 x 1 mm cable entry size.
- Mechanical life rated at 1,000,000 cycles ensures long-term operational reliability.
- Ideal for hinged covers, doors, guards, safety fencing, and modular aluminium framing applications.
Product Description
Banner HG80 Safety Hinge Switch SPDT (Model HG80) is engineered with a robust die cast zinc and gadolinium housing to endure mechanical impacts and provide a high degree of operator safety in industrial environments.
This safety interlock switch integrates into a load-bearing hinge body, suitable for use in hinged covers, doors, and machine guards. It offers excellent protection against intentional tampering, mechanical wear, and reduces maintenance costs.
The switch operates within a 0° to 180° trigger angle range, with an adjustable switching point to accommodate various installation requirements. Rated IP67, it provides protection against dust and water ingress, making it suitable for harsh and demanding conditions.
Key operational specifications include a 3A contact current rating at 250V AC and 0.5A at 60V DC, with a 4-pin terminal type and M12 x 1 mm cable entry size. The mechanical life is rated to 1,000,000 cycles indicating excellent durability.
Applications include hinged doors and gates in safety fencing systems, modular aluminium framing, and protection of machine enclosures. For large doors, mounting in pairs or with blank hinges is recommended to reduce radial stresses.
The switch features die cast zinc construction for durability and longevity. Operating temperature range from -25°C to +70°C assures performance in diverse environments. Full 180° hinge operation with adjustable switching point enhances installation flexibility.
Contact rating of 3A at 250 VAC and 0.5A at 60 VDC ensures reliable electrical performance. IP67 rated for superior protection against dust and water ingress. Mechanical life of 1,000,000 cycles for sustained industrial use.
Designed specifically for safety interlock switch applications, ensuring compliance with safety requirements.
Explore the full range of Banner safety switches and industrial electrical components at EnvMart for reliable and certified products suitable for various industrial safety applications.
Explore more products in our Safety Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 3A at 250V AC and 0.5A at 60V DC.
It operates within a temperature range of -25°C to +70°C.
The housing is made of die cast zinc and gadolinium materials for durability.
The switch has an IP67 rating, providing protection against dust and water ingress.
The mechanical life is rated at 1,000,000 cycles, ensuring long-term operational reliability.
The hinge operates within a full 0° to 180° trigger angle range.
It is equipped with a 4-pin terminal type.
The cable entry size is M12 x 1 mm.
It is suitable for hinged covers, doors, guards, safety fencing, and modular aluminium framing applications.
The dimensions are 97mm in length, 72mm in width, and 19mm in height.
The contact configuration is SPDT (Single Pole Double Throw).
The maximum operating temperature is 70°C, while the minimum is -25°C.
