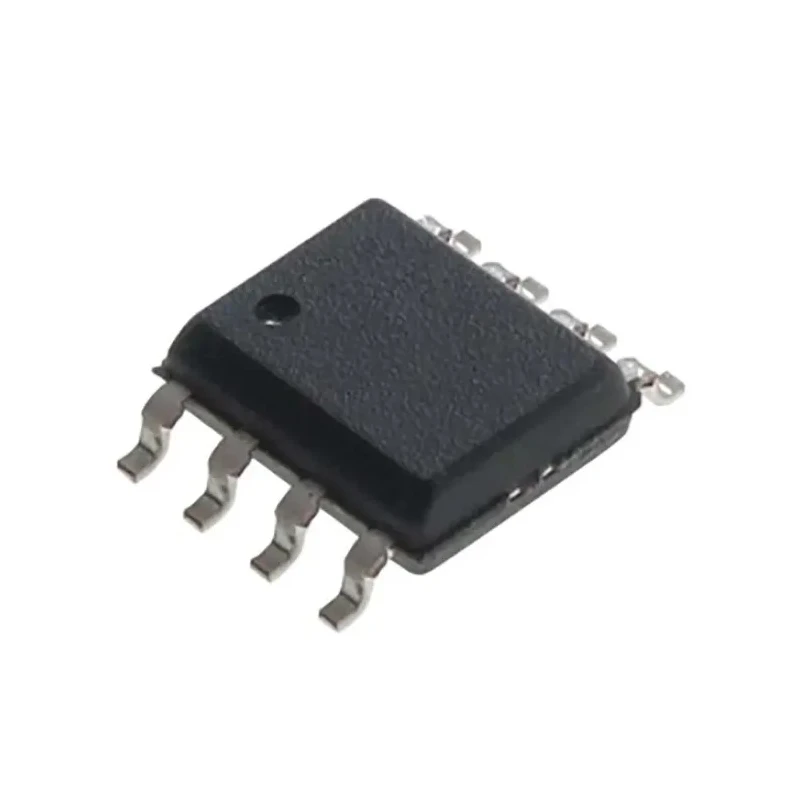

ams OSRAM Magnetic Hall Effect Sensor with 5.5V Maximum Supply, 4096 ppr Pulses Per Revolution, Analogue Output AS5600-ASOM
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Model | AS5600-ASOM |
| Mount Type | Surface Mount |
| Series | AS5600-ASOM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 920Hz |
| Pulses per Revolution | 4096ppr |
| Standards/Approvals | JESD78, MIL 883 E Method 3015.7, ICP/JEDEC J-STD-020, ICP/JEDEC J-STD-033 |
| Maximum Supply Voltage | 5.5V |
| Encoder Technology | Magnetic |
| Output Signal Type | Analogue |
Key Features
- Features contactless angle measurement from 18° to 360° programmable range.
- Robust design eliminates interference from homogeneous external stray magnetic fields.
- Outputs ratiometric analog voltage or PWM-encoded digital signal.
- Suitable for contactless potentiometer applications with surface mount technology.
- Operates in temperatures ranging from -40°C to 125°C.
- Supports switching frequency up to 920Hz.
- Meets standards including JESD78, MIL 883 E Method 3015.7, ICP/JEDEC J-STD-020, ICP/JEDEC J-STD-033.
Product Description
ams OSRAM AS5600-ASOM Magnetic Hall Effect Sensor is designed as an easy-to-program magnetic rotary position sensor offering high-resolution 12-bit analog or PWM output signals. It measures the absolute angle of a diametric magnet placed on an axis, using magnetic encoder technology to provide accurate, contactless position sensing.
This sensor operates with a maximum supply voltage of 5.5V and delivers a high pulse count of 4096 pulses per revolution, ideal for precision applications. It features surface mount technology allowing integration on various industrial and automation platforms.
The robust construction minimizes the influence of homogeneous external stray magnetic fields, ensuring reliable performance in harsh industrial environments. The programmable angle range spans from 18° up to 360°, making it versatile for different encoder applications.
It offers analog output ratiometric to supply voltage or PWM-encoded output, supporting flexible interfacing for diverse control systems. This sensor supports operating temperatures from -40°C to 125°C and switching frequency up to 920Hz, making it suitable for demanding industrial and automation environments.
Certified to standards such as JESD78, MIL 883 E Method 3015.7, ICP/JEDEC J-STD-020, and ICP/JEDEC J-STD-033, the AS5600-ASOM provides assured reliability and quality. Features contactless angle measurement from 18° to 360° programmable range.
Robust design eliminates interference from homogeneous external stray magnetic fields. Outputs ratiometric analog voltage or PWM-encoded digital signal. Suitable for contactless potentiometer applications with surface mount technology.
Operates in temperatures ranging from -40°C to 125°C. Supports switching frequency up to 920Hz. Meets standards including JESD78, MIL 883 E Method 3015.7, ICP/JEDEC J-STD-020, ICP/JEDEC J-STD-033.
This magnetic Hall Effect Sensor is ideal for industrial automation, robotics, motion control, and electronic measurement equipment, providing precise angular position sensing without mechanical wear. Explore our comprehensive Electronics & Electricals category for similar high-quality sensors and industrial components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this sensor is 5.5V.
It offers a programmable angle measurement range from 18° to 360°.
This model produces 4096 pulses per revolution.
It provides ratiometric analog voltage or PWM-encoded digital signals.
The sensor operates within a temperature range of -40°C to 125°C.
It supports a switching frequency of up to 920Hz.
This model uses surface mount technology for installation.
It meets standards including JESD78, MIL 883 E Method 3015.7, ICP/JEDEC J-STD-020, and ICP/JEDEC J-STD-033.
It utilizes magnetic encoder technology for accurate position sensing.
This sensor is suitable for applications in industrial automation, robotics, motion control, and electronic measurement equipment.
Its robust design minimizes interference from homogeneous external stray magnetic fields, ensuring reliable performance.
The encoder technology used in this model is magnetic.
