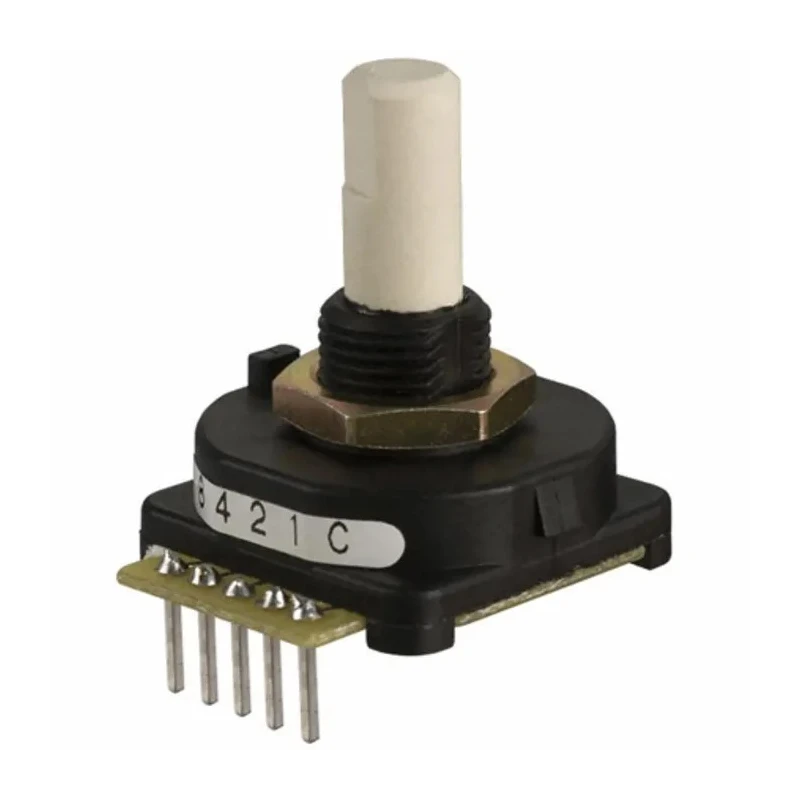

Grayhill 28V dc Mechanical Rotary Encoder with 6.35 mm Flatted Shaft, Panel Mount 25LB22-H

Free Delivery in India | Lowest Global Shipping Charges

Grayhill 28V dc Mechanical Rotary Encoder with 6.35 mm Flatted Shaft, Panel Mount 25LB22-H

Name: Grayhill 28V dc Mechanical Rotary Encoder with 6.35 mm Flatted Shaft, Panel Mount 25LB22-H
Brand: GRAYHILL
SKU: 384285
Price: 1904.04 INR
Availability: InStock



Category Mechanical Rotary Encoder Brand GRAYHILL Condition New

Specifications

Country of Origin	United States
Brand	Grayhill
Operating Temperature Range	-40 to +85 °C
Model	25LB22-H
Mount Type	Panel Mount
Series	25L
Shaft Diameter	6.35mm
Encoder Type	Mechanical
Shaft Length	19.05mm
Supply Voltage	28V dc
Standards/Approvals	ISO 9001
Mounting Hole Diameter	0.375 in
Shaft Style	Flatted
Encoder Signal	Hex Code
Encoder, Black, 22.5 degrees, Hexadecimal, 16 PositionsBrand	Grayhill

Key Features

Provides Hex Code encoder signal for precise rotary position detection.
Features a shaft diameter of 6.35 mm with a shaft length of 19.05 mm.
Panel mount type with mounting hole diameter of 0.375 inches for secure installation.
Constructed to ISO 9001 standards ensuring reliability and quality.
Has an operating temperature range from -40 to +85 °C suitable for varied environments.
Offers continuous rotation with multiple code and indexing options.
Equipped with gold plate over nickel copper contacts to enhance durability.
Designed for industrial and electronic control applications requiring long life expectancy up to 100,000 cycles.

Product Description

Grayhill 25LB22-H is a Mechanical Rotary Encoder engineered for panel mounting, providing reliable rotary position sensing with a 28V dc power supply and a 6.35 mm flatted shaft. This encoder is ideal for precise control in industrial, automation, and electronic applications.

The encoder uses Hex Code signaling and supports multiple code and indexing choices, enabling flexible integration in various control systems. The shaft diameter of 6.35 mm and length of 19.05 mm with a mounting hole diameter of 0.375 inch ensures compatibility with standard panel mounts.

Manufactured to ISO 9001 standards, the 25L series encoders boast a life expectancy of 100,000 cycles, making them cost effective and durable for long-term use. The contacts are gold-plated over nickel copper for excellent conductivity and resistance to wear.

Operating across a wide temperature range from -40 to +85 °C, these encoders perform reliably in diverse environmental conditions. The continuous rotation functionality provides flexibility for numerous applications in industrial machinery, instrumentation, and control panels.

For mounting accessories, compatible brackets such as Grayhill part number 25J5155 and control knobs like 11K5013-KMNB are recommended, enhancing ease of installation and user interface options.

Provides Hex Code encoder signal for precise rotary position detection. Features a shaft diameter of 6.35 mm with a shaft length of 19.05 mm. Panel mount type with mounting hole diameter of 0.375 inches for secure installation.

Constructed to ISO 9001 standards ensuring reliability and quality. Has an operating temperature range from -40 to +85 °C suitable for varied environments. Offers continuous rotation with multiple code and indexing options.

Equipped with gold plate over nickel copper contacts to enhance durability. Designed for industrial and electronic control applications requiring long life expectancy up to 100,000 cycles. Explore more products in the Sensors category at EnvMart to find compatible and complementary devices.
