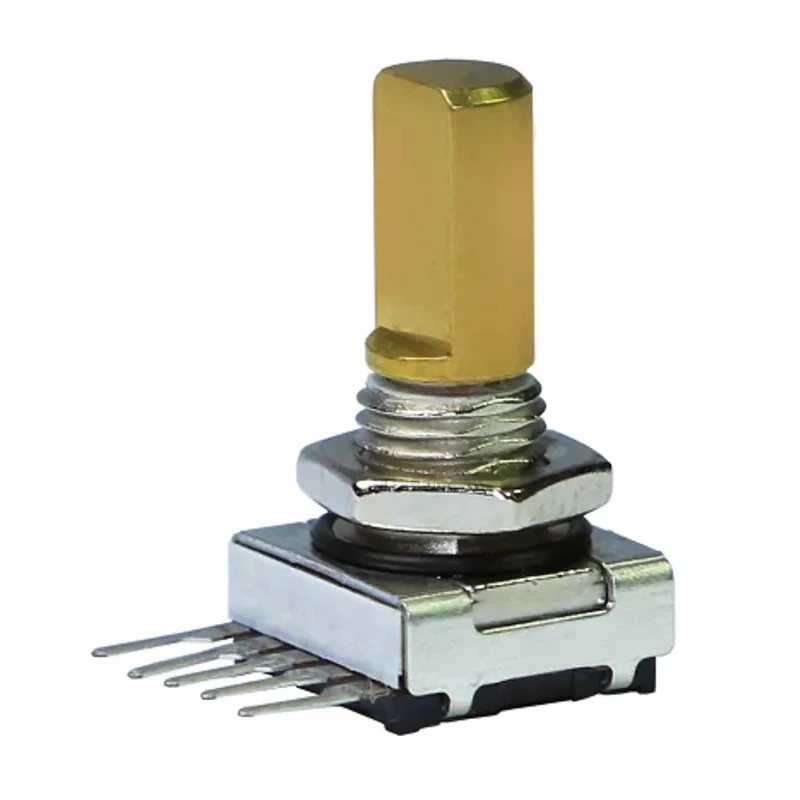

Elma Mechanical Rotary Encoder 8 ppr Pulse 2 Bit Quadrature, 6 mm Slotted Shaft E33-CT622-M01T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elma |
| Model | E33-CT622-M01T |
| Current Rating | 10mA |
| Series | E33 |
| Shaft Diameter | 6mm |
| Shaft Length | 16mm |
| Pulses per Revolution | 8ppr |
| Standards/Approvals | RoHS |
| Termination Style | Pin |
| Shaft Style | Slotted |
| Encoder Reading | 2 Bit Quadrature |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- Features a 6 mm diameter slotted shaft for secure mechanical coupling.
- Generates digital square wave output signals suitable for various electronic control applications.
- Supports maximum operating speed of 60 RPM ensuring reliable low-speed operation.
- RoHS compliant with gold-plated contacts for enhanced durability and corrosion resistance.
- Includes a metal housing and shaft for robust mechanical construction and longevity.
- Pushbutton function activated with 6N force and environmentally sealed to IP68 standard.
- Operating temperature range from -40°C to +85°C suitable for harsh industrial environments.
- Termination style consists of pin connections ensuring secure electrical contacts.
Product Description
Elma E33-CT622-M01T Mechanical Rotary Encoder is an industrial-grade encoder designed for accurate shaft position detection and control in electronics and automation systems. This encoder features an 8 pulses per revolution (ppr) output with 2 bit quadrature reading, providing precise digital signals.
The encoder includes a 6 mm slotted shaft with 16 mm length, enabling easy mechanical integration. Its robust metal housing protects internal components and provides mechanical strength, making it suitable for demanding applications.
This model operates up to 60 RPM, producing digital square wave outputs for compatible control and monitoring equipment. The device includes a pushbutton function activated by 6N force and is environmentally sealed to IP68 at both the shaft and front panel, protecting against dust and water ingress.
Constructed with gold-plated contacts to enhance longevity and reliability, the encoder meets RoHS compliance requirements, ensuring environmentally safe materials. Operating temperature ranges from -40°C to +85°C allow usage in extreme industrial environments.
Termination is by pin connections, providing reliable electrical interfacing. The E33 series is designed to offer operational life of up to 1,000,000 revolutions, ensuring durability.
This mechanical rotary encoder is ideal for industrial, laboratory, automation, manufacturing, and electronic component applications where precision shaft encoding is required. Features a 6 mm diameter slotted shaft. Provides digital square wave output with 2 bit quadrature encoding.
Supports maximum speed of 60 RPM. IP68 sealing for protection against harsh environments. Gold-plated contacts enhance durability and signal integrity. Robust metal housing for extended mechanical life. Pushbutton function with a 6N activation force.
Wide operating temperature range from -40°C to +85°C. RoHS compliant for environmental safety. Termination by pins ensuring stable connections. Explore more Mechanical Rotary Encoders and related sensor products at EnvMart for all your industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this model is 60 RPM, allowing for reliable low-speed operation.
It generates digital square wave output signals, suitable for various electronic control applications.
The encoder features a shaft diameter of 6 mm and a shaft length of 16 mm, facilitating easy mechanical integration.
This encoder uses a 2 bit quadrature reading, providing precise digital signals for position detection.
It is environmentally sealed to IP68 standard, providing protection against dust and water ingress.
The encoder features a robust metal housing and gold-plated contacts, enhancing durability and corrosion resistance.
The operating temperature range is from -40°C to +85°C, making it suitable for harsh industrial environments.
Termination is by pin connections, ensuring secure electrical contacts for reliable interfacing.
This model has an output of 8 pulses per revolution (ppr), which aids in accurate position detection.
The pushbutton function is activated with a force of 6N, allowing for user interaction.
Yes, the encoder is RoHS compliant, ensuring that it meets environmental safety standards.
This encoder is ideal for industrial, laboratory, automation, manufacturing, and electronic component applications requiring precision shaft encoding.
