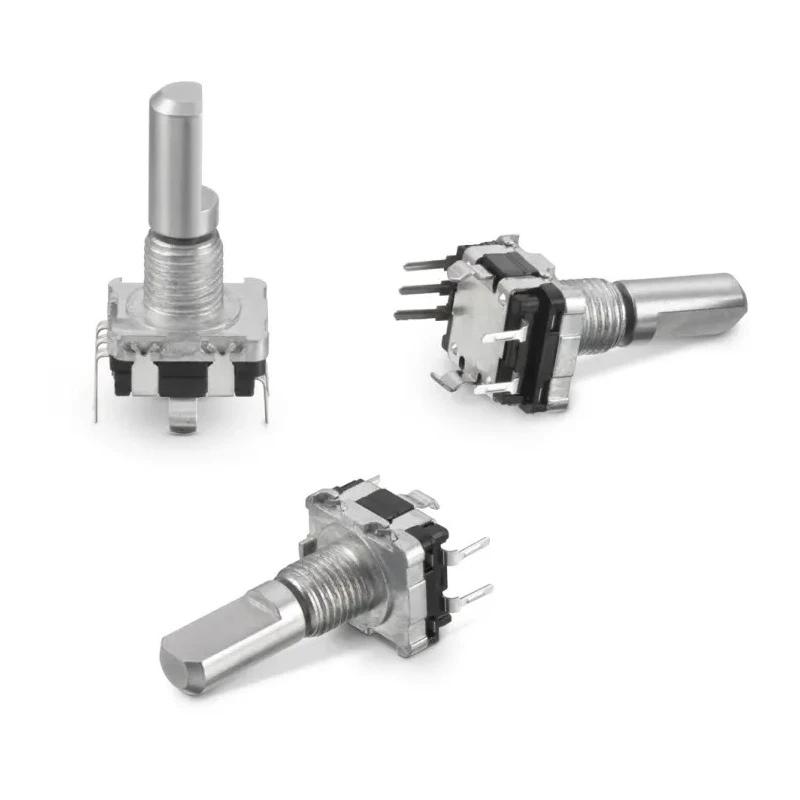

Wurth Elektronik 20 ppr Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft, Through Hole 482020514001

Wurth Elektronik 482020514001 is a Mechanical Rotary Encoder featuring 20 pulses per revolution (ppr) and a 6 mm flat shaft, designed for incremental position sensing in industrial electronics and automation systems. This encoder utilizes quadrature code signals for precise control of rotary position and speed.

The flat shaft with 6 mm diameter and 20 mm length ensures compatibility with common mechanical systems. The through-hole mounting type with a minimal 0.15 mm mounting hole diameter allows for secure and reliable installation on various equipment.

Terimination is provided via PC pins for easy PCB integration, supporting efficient assembly in electronic circuits. With a current rating of 10 mA, this encoder is suitable for low power control applications often found in industrial automation, manufacturing machinery, and robotics.

The product complies with RoHS and REACH standards, ensuring it meets environmental protection requirements and chemical safety regulations, making it ideal for eco-conscious industrial use.

Manufactured in Taiwan, Province of China, the encoder maintains high-quality production standards and reliability. This rotary encoder provides 20 pulses per revolution for accurate signal output. The flat shaft design with a 6 mm diameter ensures stable coupling to mechanical components.

Incremental encoder reading with quadrature code output enables direction and speed sensing. Mounting is through hole with a 0.15 mm mounting hole diameter to facilitate secure installation. Termination via PC pins supports easy integration on printed circuit boards.

Current rating of 10 mA suits low power industrial control applications. Complies with RoHS and REACH for environmental and safety standards. Manufactured in Taiwan, Province of China, assuring quality manufacturing standards.

This Mechanical Rotary Encoder is widely used across industrial, automation, robotics, and manufacturing sectors for precise position feedback. It is suitable for applications requiring incremental pulse signals and robust mounting options.
