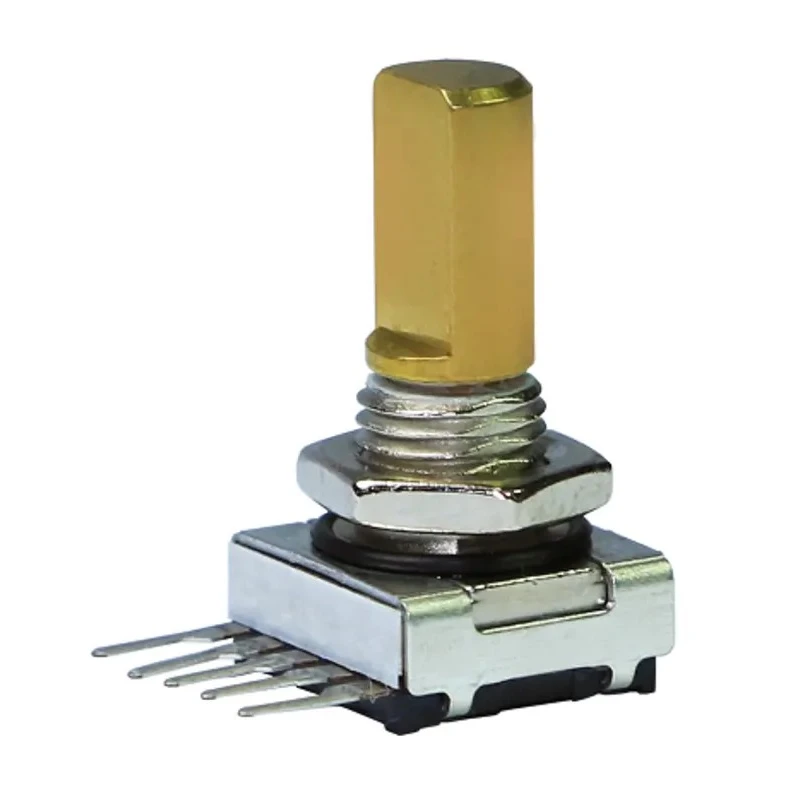

Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature Digital Square Wave, 6 mm Slotted Shaft E33-CT652-M01T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elma |
| Model | E33-CT652-M01T |
| Current Rating | 10mA |
| Series | E33 |
| Shaft Diameter | 6mm |
| Shaft Length | 16mm |
| Pulses per Revolution | 16ppr |
| Standards/Approvals | RoHS |
| Termination Style | Pin |
| Shaft Style | Slotted |
| Encoder Reading | 2 Bit Quadrature |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- The encoder provides 2 Bit Quadrature digital square wave output for accurate signal processing.
- Features a robust metal housing and 16 mm shaft length suitable for industrial applications.
- Maximum operating speed is 60 rpm ensuring reliable performance in low-speed environments.
- Includes pin termination style and is RoHS compliant for environmental safety.
- Designed with gold-plated contacts for durability and improved electrical performance.
- Equipped with a pushbutton function activating at 6N push force for added functionality.
- Environmental sealing to IP68 protects the shaft and front panel against dust and water ingress.
- Operating temperature range from -40 to +85°C supports harsh industrial conditions.
Product Description
Elma E33-CT652-M01T Mechanical Rotary Encoder features a high precision 16 pulses per revolution (ppr) resolution and 2 Bit Quadrature encoder reading output in a durable metal housing. Designed with a 6 mm diameter slotted shaft of 16 mm length, this encoder generates digital square wave signals ideal for accurate rotational position sensing.
This encoder supports a maximum operating speed of 60 rpm and is terminated via pin connection, suitable for integration into diverse electronic and industrial control systems. The pushbutton function activates with a 6N push force, enabling enhanced operational utility.
Its gold-plated contacts ensure electrical reliability, while the robust metal construction coupled with environmental sealing rated to IP68 on the shaft and front panel offers superior protection against dust and moisture ingress. The device operates efficiently within a temperature range of -40 to +85°C, making it well-suited for demanding industrial, laboratory, manufacturing, and automation applications.
The Elma E33 series is RoHS compliant, emphasizing environmental stewardship. Typical use cases include precision shaft rotation encoding in machinery monitoring, process control, robotics, and instrumentation industries.
The encoder provides 2 Bit Quadrature digital square wave output for accurate signal processing. Features a robust metal housing and 16 mm shaft length suitable for industrial applications. Maximum operating speed is 60 rpm ensuring reliable performance in low-speed environments.
Includes pin termination style and is RoHS compliant for environmental safety. Designed with gold-plated contacts for durability and improved electrical performance. Equipped with a pushbutton function activating at 6N push force for added functionality.
Environmental sealing to IP68 protects the shaft and front panel against dust and water ingress. Operating temperature range from -40 to +85°C supports harsh industrial conditions. Explore more precision sensors and Mechanical Rotary Encoders at EnvMart, your destination for advanced industrial and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Elma E33-CT652-M01T encoder features a resolution of 16 pulses per revolution (ppr).
This model provides a 2 Bit Quadrature digital square wave output for accurate signal processing.
The maximum operating speed of the encoder is 60 rpm.
The encoder has a slotted shaft with a diameter of 6 mm and a length of 16 mm.
The encoder is terminated via a pin connection style.
It has an environmental sealing rating of IP68, protecting against dust and water ingress.
The operating temperature range for the encoder is from -40 to +85°C.
The Elma E33-CT652-M01T supports a current rating of 10 mA.
This encoder is RoHS compliant, emphasizing environmental safety.
This encoder is suitable for applications in machinery monitoring, process control, robotics, and instrumentation.
The encoder is designed with gold-plated contacts, which improve electrical reliability and performance.
The pushbutton function activates with a push force of 6N.
