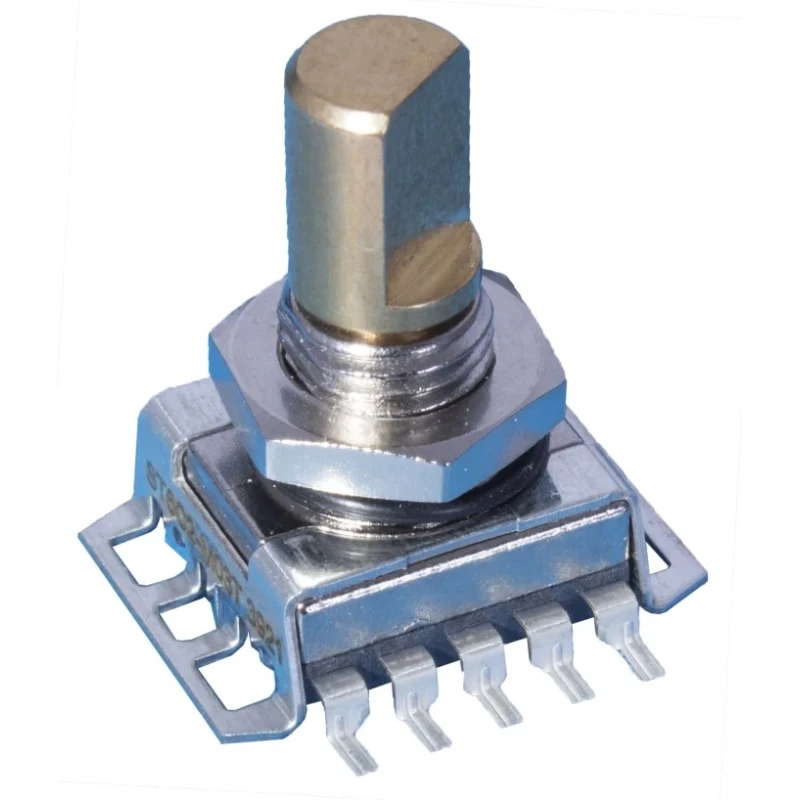

Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature with 6 mm Slotted Shaft E33-ST6C2-M01T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Elma |
| Model | E33-ST6C2-M01T |
| Current Rating | 10mA |
| Series | E33 |
| Shaft Diameter | 6mm |
| Shaft Length | 16mm |
| Pulses per Revolution | 16ppr |
| Standards/Approvals | RoHS |
| Termination Style | Pin |
| Shaft Style | Slotted |
| Encoder Reading | 2 Bit Quadrature |
| Encoder Signal | Digital Square Wave |
| Maximum Operating Speed | 60rpm |
Key Features
- Features a resolution of 16 ppr with 2 Bit Quadrature encoder reading.
- Equipped with a 6 mm diameter slotted shaft and 16 mm shaft length.
- Capable of a maximum operating speed of 60 rpm for precise control.
- Utilizes a digital square wave encoder signal with pin termination style.
- Constructed with a robust metal housing and metal shaft for durability.
- Includes gold plated contacts for enhanced electrical performance.
- Engineered for an operating temperature range from -40 to +85°C.
- Environmental sealing to IP68 ensures protection on shaft and front panel.
Product Description
Elma E33-ST6C2-M01T Mechanical Rotary Encoder offers 16 pulses per revolution and a precise 2 Bit Quadrature digital output. It features a 6 mm slotted shaft with a 16 mm length, optimized for applications requiring accurate angular position sensing.
The encoder delivers a digital square wave signal and supports a maximum operating speed of 60 revolutions per minute. Its robust metal construction includes a metal shaft and gold plated contacts, ensuring long-term durability and reliable electrical connections.
This model is horizontally mountable and environmentally sealed to IP68 standards at both the shaft and front panel, providing excellent protection in harsh industrial environments. It operates efficiently within a temperature range of -40 to +85°C, suitable for various industrial, laboratory, manufacturing, and HVAC sensor applications.
The encoder has a rotational life expectancy of up to 1,000,000 revolutions, with consistent switching torque below 4.5 Ncm, contributing to sustained precision over its lifespan. Resolution of 16 pulses per revolution with 2 Bit Quadrature encoder reading for precise shaft position feedback.
Robust metal housing with metal shaft and gold plated contacts for durability and improved electrical conductivity. Supports maximum operating speed of 60 rpm suitable for low-speed rotary applications. IP68 environmental sealing protects against dust and water ingress, ensuring reliable operation in demanding conditions.
Operating temperature range from -40 to +85°C to handle a wide range of industrial environments. Pin termination style simplifies installation and connectivity within electronic systems. Meets RoHS standards ensuring compliance with environmental regulations.
Ideal for industrial equipment, electronic components, control systems, and sensor integration.
This Elma Mechanical Rotary Encoder E33-ST6C2-M01T efficiently combines precision, durability, and environmental protection, making it a prime choice for engineers in electronics and industrial sensor applications. Explore more precision sensors and rotary encoders with Elma products on EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Elma E33-ST6C2-M01T encoder has a resolution of 16 pulses per revolution (ppr) with a 2 Bit Quadrature encoder reading.
This model supports a maximum operating speed of 60 revolutions per minute (rpm).
The encoder features a slotted shaft with a diameter of 6 mm and a length of 16 mm.
It utilizes a digital square wave signal for its output.
The operating temperature range for this encoder is from -40 to +85°C.
The encoder is environmentally sealed to IP68 standards, providing protection against dust and water ingress.
It features a pin termination style, which simplifies installation and connectivity.
This encoder is constructed with a robust metal housing and a metal shaft, along with gold plated contacts for enhanced electrical performance.
The current rating for this encoder is 10 mA.
It is suitable for various applications including industrial equipment, electronic components, control systems, and sensor integration.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
The encoder has a rotational life expectancy of up to 1,000,000 revolutions.
