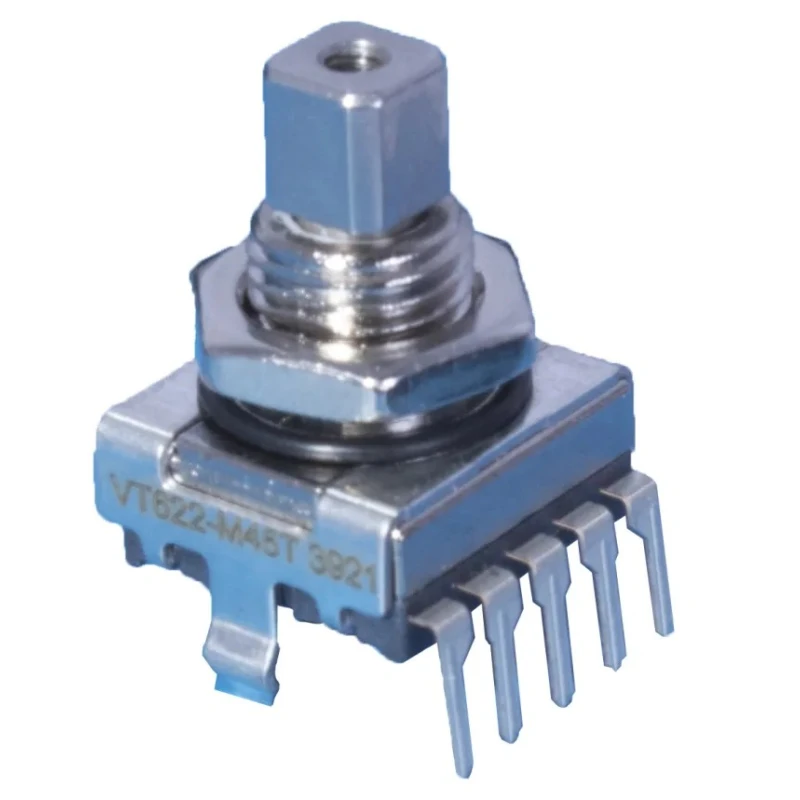

Elma Mechanical Rotary Encoder 8 ppr Pulse 2 Bit Quadrature with 6 mm Slotted Shaft E33-VT622-M45T

Elma E33-VT622-M45T is a mechanical rotary encoder designed for industrial and electronic applications requiring precise rotational measurement and control. This model features 8 pulses per revolution with a 2 Bit Quadrature digital square wave output, ideal for incremental position sensing.

It includes a 6 mm diameter slotted shaft with a length of 5 mm, constructed from robust metal materials to ensure mechanical strength and reliability. The encoder is configured for horizontal mounting and is environmentally sealed to an IP68 rating on both the shaft and front panel, providing excellent protection against dust and water ingress in harsh conditions.

The device supports a maximum operating speed of 60 rpm and utilizes pin style terminations for secure electrical interfacing. It carries a current rating of 10 mA, suitable for low current sensor systems. Gold plated contacts provide consistent signal quality and extended operational life.

This encoder also includes a pushbutton function activated by a 6N push force, with 16 detent positions available for tactile feedback or position indexing, making it versatile for various control applications in industrial machinery, laboratory instruments, and HVAC systems.

Operating temperature range from -40 to +85 degrees Celsius ensures reliability in extreme environments. The E33 series encoders from Elma are known for their robust metal housing and long rotational life of up to 1,000,000 revolutions, making them suitable for repeated, high-precision industrial use.

Offers 8 pulses per revolution for accurate positioning. Includes a 2 Bit Quadrature encoder reading with digital square wave signals. Constructed with a robust metal housing and metal shaft for durability. Features a 6 mm diameter slotted shaft with 5 mm length suitable for varied mounting configurations.

Supports a maximum operating speed of 60 rpm. Equipped with pin termination style for reliable electrical connections. Has a current rating of 10 mA suitable for low power applications. Designed for horizontal mounting and environmentally sealed to IP68 on both shaft and front panel.

Operating temperature range spans from -40 to +85°C. Gold plated contacts ensure reliable signal transmission and longevity.

This Elma mechanical rotary encoder is highly suitable for industrial machinery, electronic instrumentation, robotics, precision positioning, and any application where high reliability and accurate rotational feedback are required. Explore more Mechanical Rotary Encoders and sensors with EnvMart for your engineering and design needs.
