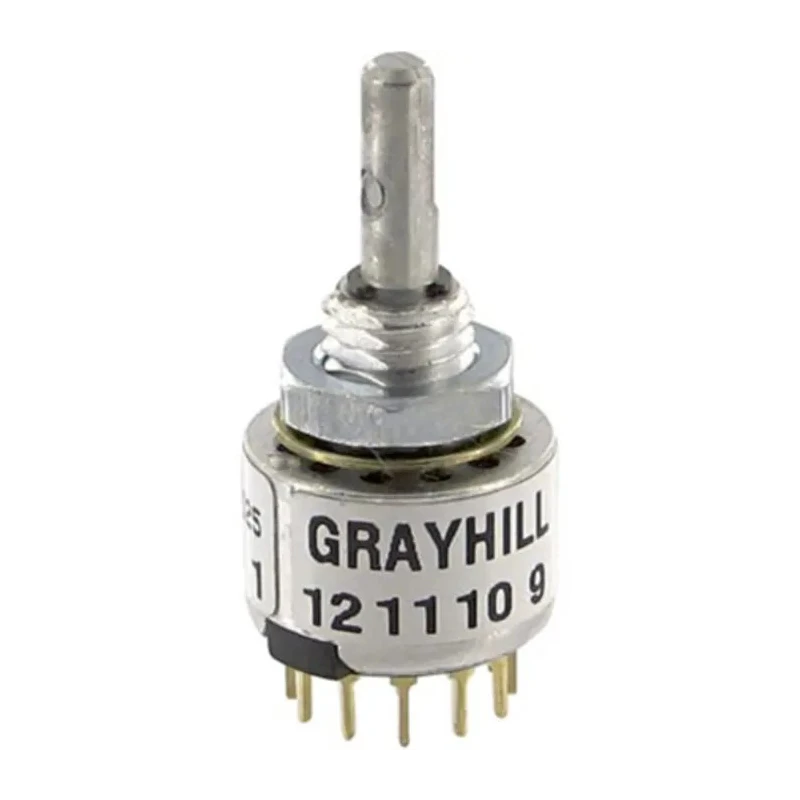

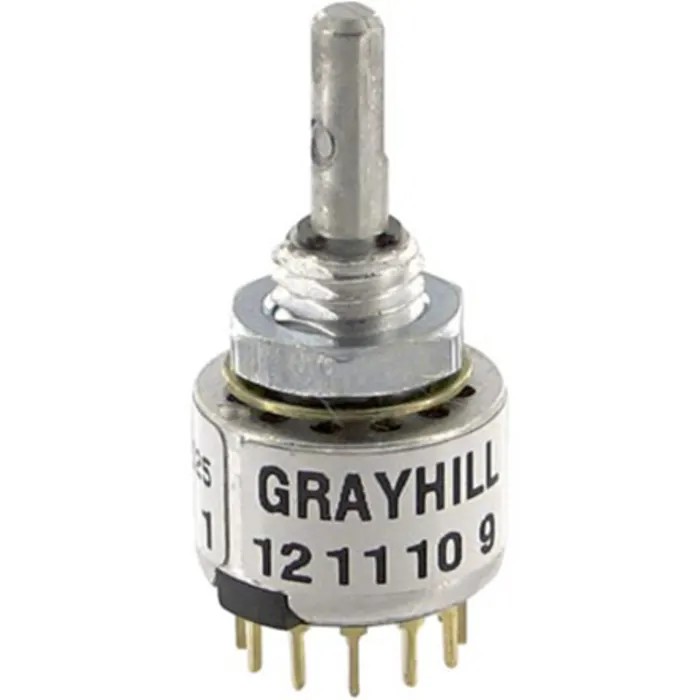

Grayhill 56 Series 12 Position DP12T Single Deck Rotary Switch 200mA PCB Terminal DP12T
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 12.7mm |
| Brand | Grayhill |
| Height | 9.58mm |
| Model | DP12T |
| Depth | 12.19mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Housing Material | Tin Zinc Plated, Die Cast Zinc |
| Series | 56 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP12T |
| Number of Positions | 12 |
| Minimum Operating Temperature | -65°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 1 |
| Standards/Approvals | RoHS |
| Switch Operation | Single Deck Rotary Switches |
| Actuator Colour | Silver |
| Switch Contact Current | 200mA |
| Mechanical Life | 50000Cycles |
| Maximum AC Voltage | 125V ac |
| Angle of Throw | 30 ° |
Key Features
- Durable construction with tin zinc plated die cast zinc housing.
- Offers 12 selectable positions for versatile applications.
- Operates with a maximum AC voltage of 125V and DC voltage of 30V.
- Mechanical life rated up to 50,000 cycles ensuring long-term reliability.
- Compact design with 12.7mm diameter and PCB terminal mount type.
- Features a silver actuator and 30° angle of throw for precise control.
- Designed for operation in temperatures ranging from -65°C to 85°C.
- RoHS compliant ensuring environmental safety and quality.
Product Description
The Grayhill 56 Series 12 Position DP12T Single Deck Rotary Switch is engineered for reliable switching in electronic and electrical applications. Supporting a contact current rating of 200mA, it is designed to switch signals efficiently with 12 discrete positions.
Constructed with a robust tin zinc plated and die cast zinc housing, the switch ensures durability and consistent mechanical performance with up to 50,000 operational cycles. It features a compact diameter of 12.7mm and a height of 9.58mm, optimized for PCB mounting through its PCB terminal type.
Operating within a temperature range of -65°C to 85°C, this switch accommodates demanding environments. It supports a maximum AC voltage of 125V and DC voltage of 30V, making it suitable for a wide range of automation, control, and signal routing applications in industrial, laboratory, and commercial electronics sectors.
The silver actuator provides a precise 30-degree angle of throw for controlled switching actions. The product complies with RoHS standards, ensuring it meets environmental safety regulations.
This rotary switch is manufactured in the United States, reflecting high quality and reliability standards. It is ideal for engineers and system designers requiring a dependable switching component in electronic circuitry.
Durable tin zinc plated die cast zinc housing supports long mechanical life. 12 selectable positions with single pole, 12-position rotary operation. Compatible with PCB mounting via PCB terminal type for easy integration.
Electrical ratings: 200mA contact current, 125V AC max, 30V DC max. Operates reliably in temperatures between -65°C and 85°C. Silver actuator with 30° angle of throw for precise switching. RoHS compliant and environmentally safe design.
Designed for industrial, laboratory, automation, and commercial electronics use.
Explore the Grayhill range for high-quality Rotary Switches in the Electronics & Electricals category on EnvMart designed for precision and durability in tough operating conditions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating of this rotary switch is 200mA.
It can handle a maximum AC voltage of 125V and a maximum DC voltage of 30V.
The mechanical life of this switch is rated for up to 50,000 cycles.
The switch has a diameter of 12.7mm, a height of 9.58mm, and a depth of 12.19mm.
It operates reliably within a temperature range of -65°C to 85°C.
This model is designed for PCB mounting using PCB terminal type connections.
This rotary switch offers 12 selectable positions.
The housing is made of tin zinc plated die cast zinc, ensuring durability.
The actuator has a 30-degree angle of throw for precise control.
Yes, this rotary switch is RoHS compliant, ensuring it meets environmental safety standards.
This model is manufactured in the United States.
It is suitable for a wide range of applications in industrial, laboratory, automation, and commercial electronics.
