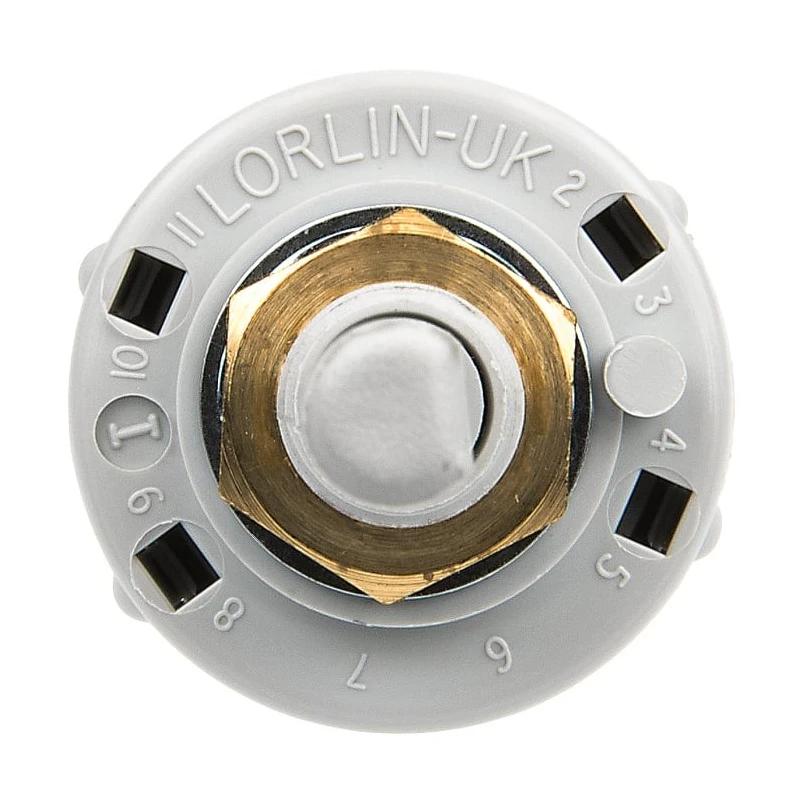

Lorlin 12 Position SPST Rotary Switch 150mA 250V AC/DC Polyamide Housing Panel Mount CK1024

The Lorlin CK1024 is a 12 Position SPST Rotary Switch designed for precise low current switching applications.

Featuring a single pole single throw (SPST) contact configuration, it carries a contact current rating of 150mA at a maximum voltage of 250VAC or 24VDC. Its 12 positions and 90° angle of throw provide reliable switching between circuits, supported by a mechanical life of 10,000 cycles, ensuring long-term dependable service.

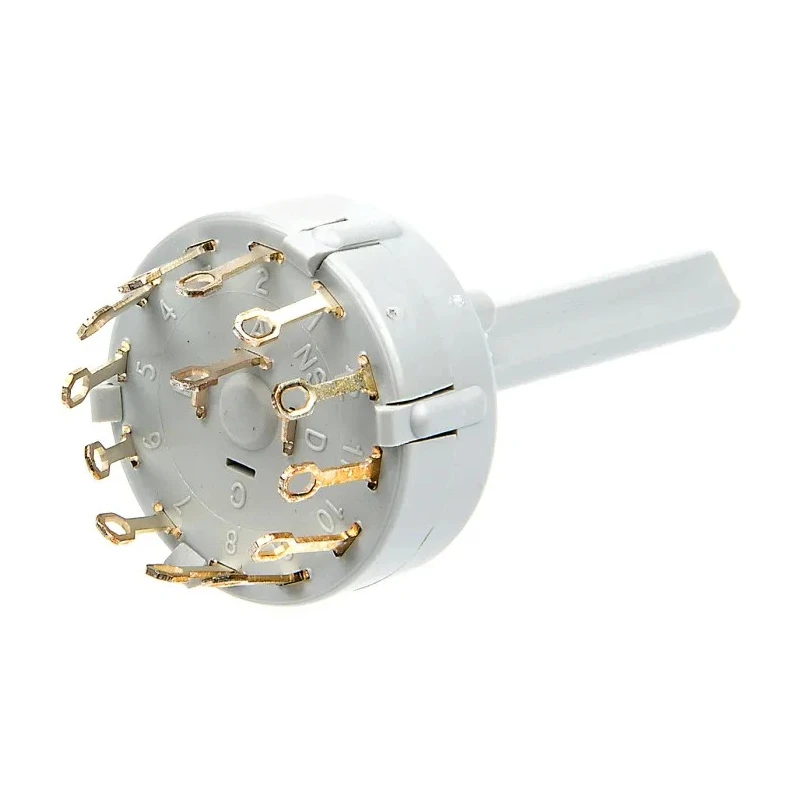

The compact rotary switch measures 27.5mm in diameter and depth, with a height of 59.1mm. It uses solder tab terminals for secure and stable electrical connections. The switch is designed to operate effectively within a temperature range of -30°C to 85°C, suitable for various industrial, commercial, and electrical applications.

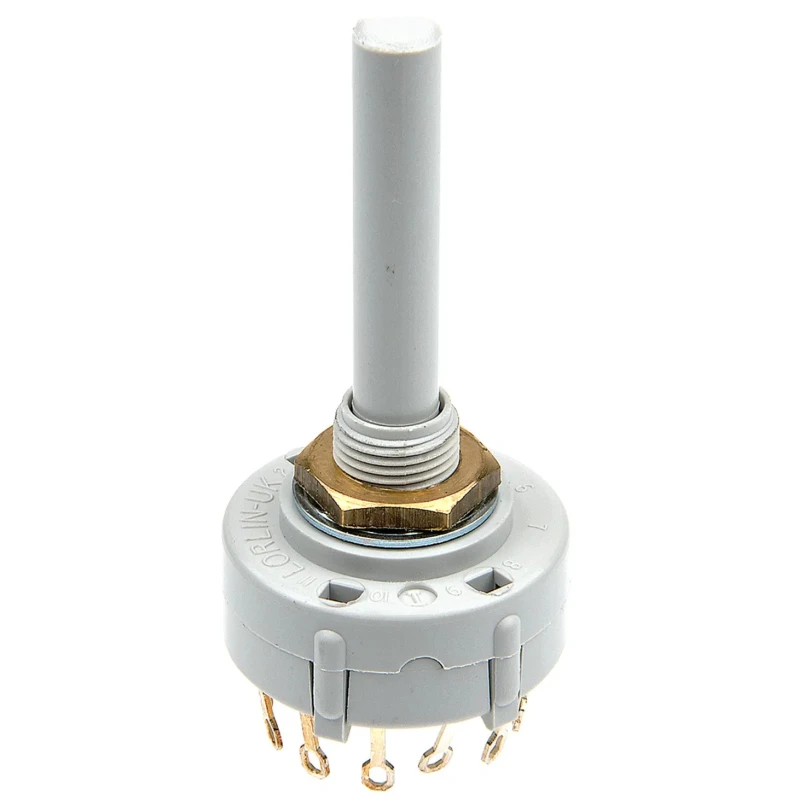

The spool shaft dimensions are 1.5 inches long and 0.25 inch in diameter with a 30mm flat, supporting compatible grub screwed knobs, while the bush is 8mm long with a 9.52x32TPI thread, enabling correct mounting and mechanical stability.

Single pole single throw (SPST) switching configuration. 150mA contact rating at 250V AC and 24V DC. Polyamide housing providing insulation and durability. Panel mount with solder tab terminals for ease of installation. Compact 27.5mm diameter and depth, height 59.1mm.

12 switching positions and 90° angle of throw for precise control. Mechanical lifespan of 10,000 operational cycles. Operating temperature range from -30°C to 85°C. RoHS compliant, supporting environmental regulatory requirements.

Manufactured in the United Kingdom to high-quality standards.

This rotary switch is suitable for use in industrial electrical equipment, automation control panels, and general electrical switch applications where low current and compact switching solutions are required. Its reliable construction and precise positioning make it valuable in laboratory instrumentation, manufacturing control systems, and HVAC components.
