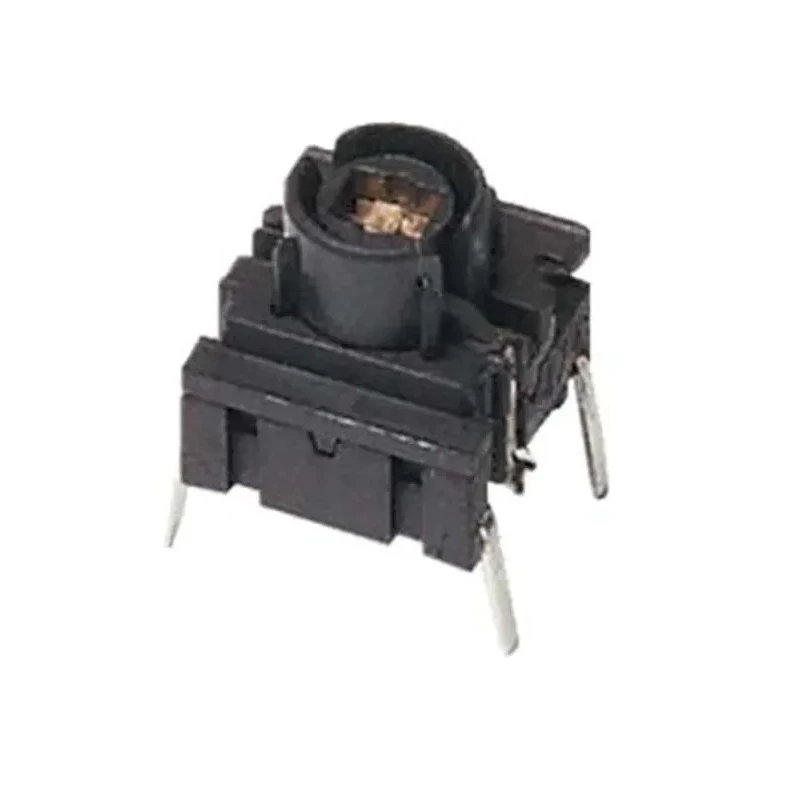

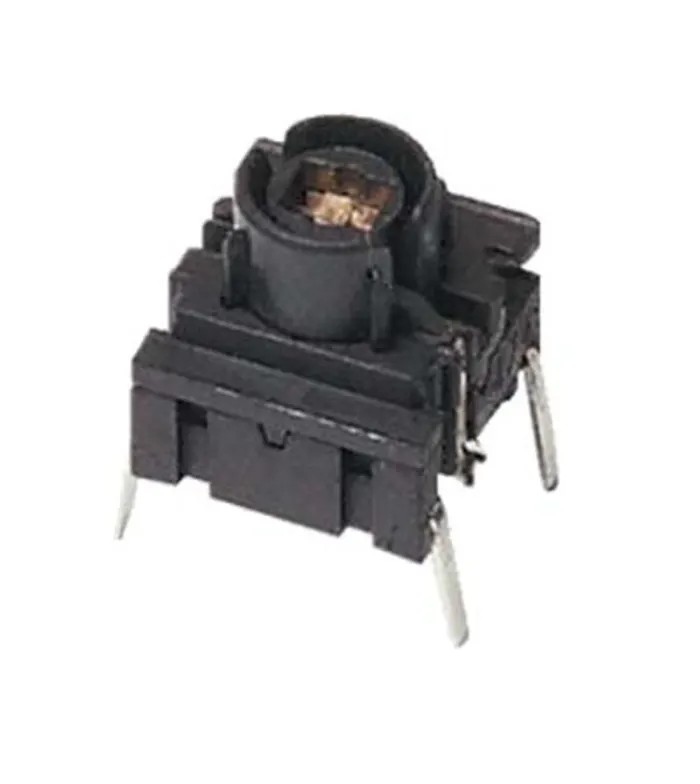

MEC IP67 Blue Tactile Switch Push Button, 10.4 mm, SPST, Surface Mount, 24 V DC, 50 mA, Illuminated



Category Push Button Switches Brand MEC Condition New

Specifications

Country of Origin	Denmark
Brand	MEC
Height	10.4mm
Length	12.5mm
Model	IP67
IP Rating	IP67
Width	10.3mm
Mount Type	Surface
Series	4F
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Blue
Actuator Length	10.4mm
Contact DC Voltage	24V dc
Actuator Style	Push Button
Actuator Orientation	Right Angle
Switch Contact Current	50mA
Operating Force	2.5N
Mechanical Life	10000000Operations

Key Features

IP67 rating seals against dust and water ingress.
Blue actuator with momentary operation ensures clear feedback.
Through-hole terminals support easy PCB and surface mounting.
Integrated LEDs provide illuminated control and status indication.
Rated for 24 V DC and 50 mA switching current.
Robust mechanical life of up to 10 million operations.
10.4 mm actuator length, right angle orientation, push button style.
Operating force of 2.5 N delivers precise tactile response.

Product Description

The MEC 4FTH901 is an industrial-grade IP67 Blue Tactile Switch Push Button featuring a 10.4 mm actuator length and SPST contact configuration, designed for surface mount installation on PCBs. Its momentary operation, coupled with through-hole terminals, provides reliability and ease of assembly in professional control panels, instrumentation, and embedded circuits.

This push button switch is equipped with integrated LED illumination, offering clear feedback and enhanced visibility during operation. The blue actuator assists in identification, making it ideal for status signaling or control functions. The right angle actuator orientation and push button style streamline ergonomics, while the robust enclosure is sealed to IP67, protecting against dust and water ingress for dependable performance in challenging environments.

With a contact rating of 24 V DC and a maximum switching current of 50 mA, the MEC 4FTH901 supports low voltage control applications in electronics, machinery interfaces, and laboratory instruments. It offers an operating force of 2.5 N for precise tactile feedback, ensuring accurate user actuation. The switch maintains a mechanical life of up to 10 million operations, reflecting its durability for frequent use in industrial automation, manufacturing, and commercial equipment.

The 10.4 mm actuator length, 12.5 mm body length, and 10.3 mm width make this component suitable for compact control boards. Minimum and maximum operating temperatures range from -40°C to 125°C, supporting applications requiring stable performance across diverse operating conditions.

Typical use cases include industrial control panels, laboratory equipment, robotic systems, HVAC controls, and commercial electronic interfaces. The device's RoHS compliance and series designation (4F) further underline its suitability for high-reliability, environmentally conscious installations.

The MEC 4FTH901 tactile switch is manufactured in Denmark, underlining its precision engineering and quality standards. Browse the full range of tactile switches and industrial controls in the 'Push Button Switches' category, and discover MEC's advanced solutions for scalable electronics and automation needs.
