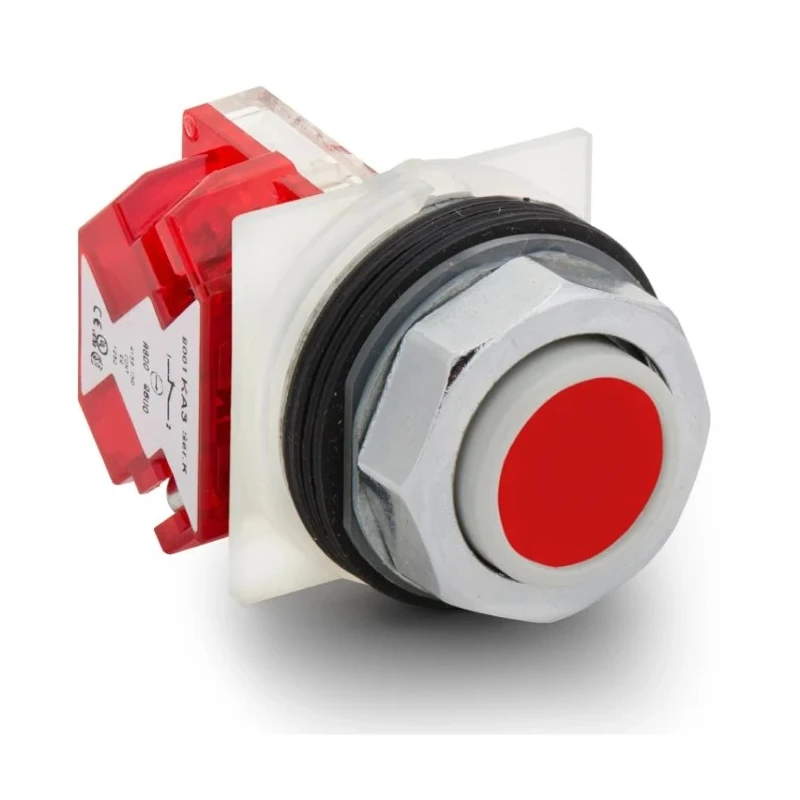

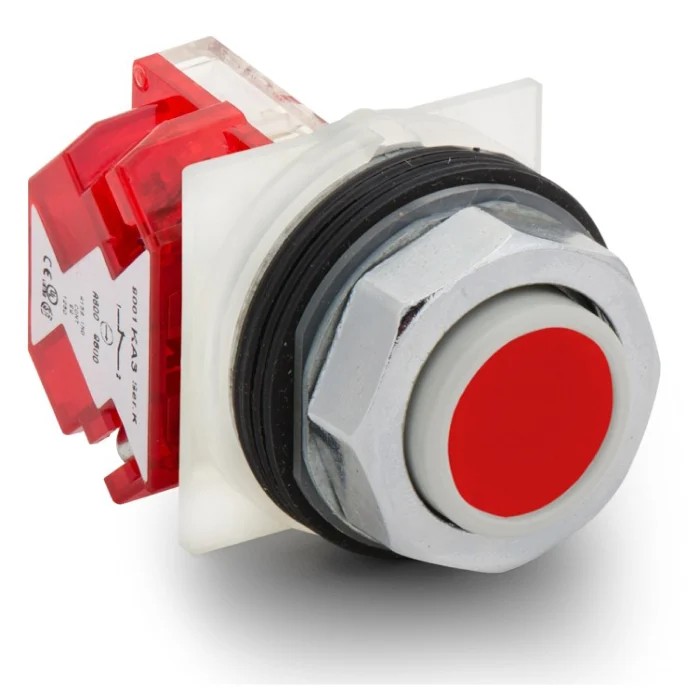

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, 30 mm Cutout, 1 NC, Red LED 9001KR3RH6
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | 9001KR3RH6 |
| IP Rating | IP66 |
| Series | Harmony 9001K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| Standards/Approvals | EU RoHS, REACH, RoHS, WEEE |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Contact DC Voltage | 125V dc |
| Actuator Style | Mushroom |
| Switch Contact Current | 3A |
| Contact AC Voltage | 240V ac |
| Legend | Blank |
Key Features
- The switch has a durable chromium plated metal finish with a mushroom actuator style.
- Equipped with a 3A switch contact current rating suitable for AC and DC voltages.
- IP66 rated for protection against dust and high-pressure water jets.
- Operates reliably in temperatures from -25°C to 70°C.
- Shock resistance of 50 gn and vibration resistance of 7 gn conforming to IEC standards.
- Suitable for use in control stations and emergency stop applications.
- Simple screw clamp terminal for secure wiring connections.
- Designed for harsh industrial environments including automotive and automation lines.
Product Description
Schneider Electric 9001KR3RH6 Illuminated Push Button Switch from the Harmony 9001K Series is a high-quality control device engineered for extreme industrial environments. The spring return mechanism operates smoothly with a 30 mm cutout size to fit most control panels. Featuring a red LED illumination and a 1 NC contact configuration, this switch ensures clear visual status and functional reliability.
The push button switch has a chromium plated metal finish providing durability and corrosion resistance, accompanied by a Zamak based fixing collar. Its mushroom-style actuator offers a flush profile with interchangeable color profiles to identify different functions.
This model supports a switch contact current of 3A and can operate on both AC and DC voltages up to 240V AC and 125V DC. The device is rated IP66 for protection against dust ingress and high-pressure water jets, facilitating usage both indoors and outdoors under harsh environmental conditions.
Certified to EU RoHS, REACH, and WEEE standards, the push button offers 5 million mechanical durability cycles ensuring long-term reliable operation. It withstands shock resistance of 50 gn and vibration resistance of 7 gn, meeting IEC 60068 standards for robustness in industrial applications.
Typical applications include control stations for emergency stop functions and automation processes in automotive factories, warehouses, and commercial units. The screw clamp terminal type enables easy and robust electrical connections suitable for intensive industrial use.
The switch features a durable chromium plated metal finish. Spring return operation with red LED illumination ensures clear feedback. IP66 protection rating suitable for harsh environments. Wide operating temperature range from -25°C to 70°C.
Complies with EU RoHS, REACH, and WEEE regulations. Suitable for emergency stop and industrial automation control panels. High mechanical life of 5 million cycles for reliability. Explore the full range of Push Button Switches at EnvMart for industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 1 NC (Normally Closed) contact configuration.
The maximum operating temperature is 70°C.
It has an IP66 rating, providing protection against dust and high-pressure water jets.
It uses a screw terminal type for secure wiring connections.
The LED color is red, providing clear visual status indication.
The minimum operating temperature is -25°C.
The switch contact current rating is 3A, suitable for both AC and DC applications.
The required panel cutout size is 30 mm.
It complies with EU RoHS, REACH, and WEEE standards.
It is suitable for control stations, emergency stop functions, and automation processes in industrial environments.
It has a shock resistance rating of 50 gn and a vibration resistance rating of 7 gn, conforming to IEC standards.
It features a mushroom-style actuator, which provides a flush profile and is designed for easy operation.
