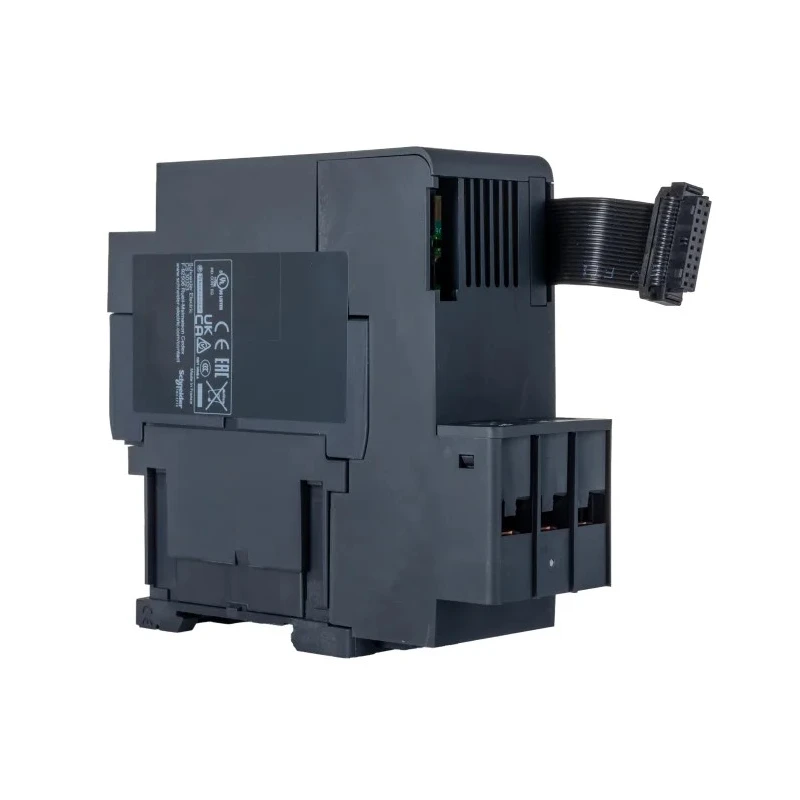

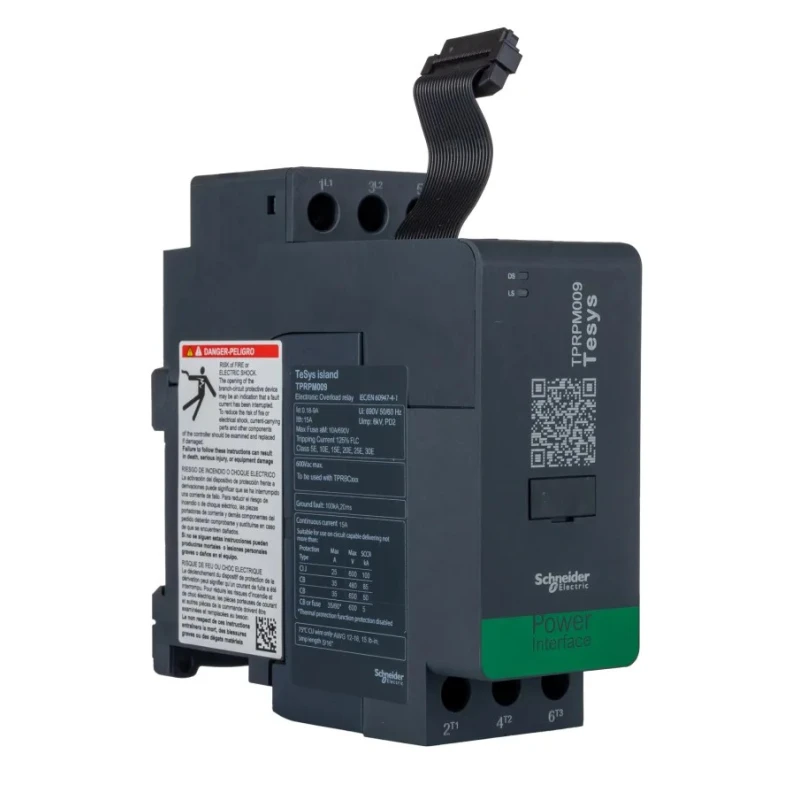

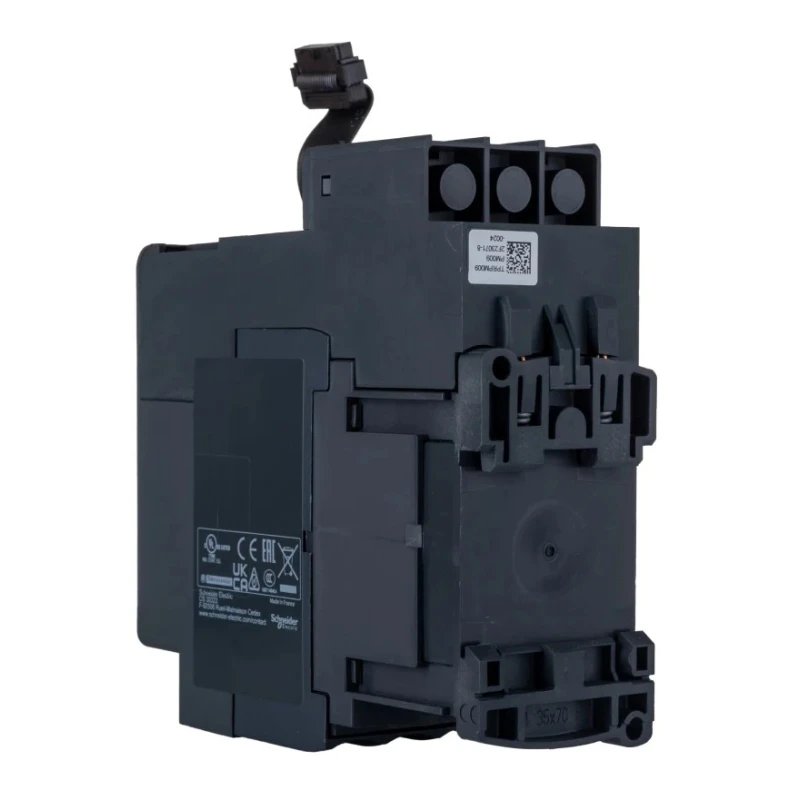

Schneider Electric 3 Phase Monitoring Relay DIN Rail Mount 690V AC 24V DC TPRPM009

Name: Schneider Electric 3 Phase Monitoring Relay DIN Rail Mount 690V AC 24V DC TPRPM009
Brand: Schneider Electric
SKU: 427760
Price: 132.71 USD
Availability: InStock



Category Monitoring Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Power Consumption	0.6W
Brand	Schneider Electric
Height	121mm
Length	115mm
Model	TPRPM009
IP Rating	IP20
Width	45mm
Mount Type	DIN Rail
Series	TeSys Island TPRPM
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Terminal type	Screw Clamp
Electrical Phase	3
Standards/Approvals	EAC, EN/IEC, UL, CSA
Contact Current	15A
Supply DC Voltage	24 V dc
Supply AC Voltage	690V ac

Key Features

Designed for three-phase electrical monitoring applications.
Compact DIN rail mount form factor for seamless integration.
Features screw clamp terminals ensuring secure electrical connections.
Operates reliably within temperature range of -10°C to +50°C.
Includes upstream voltage presence detection to prevent equipment damage.
Supports remote and automatic reset enhancing operational uptime.
Electronic thermal overload protection to prevent circuit failures.
Compliant with EAC, EN/IEC, UL, and CSA standards for industrial use.

Product Description

Schneider Electric TPRPM009 is a 3 Phase Monitoring Relay designed for electrical current and voltage supervision in industrial environments. The relay features a DIN rail mount for easy installation and provides precise monitoring with a power consumption of only 0.6W. Its robust screw clamp terminals ensure secure and reliable electrical connections.

Operating efficiently within a temperature range from -10°C to +50°C, this relay supports supply voltages of 690V AC and 24V DC. It includes advanced features such as upstream voltage presence detection to safeguard equipment, remote or automatic reset options to improve uptime, and electronic thermal overload protection to prevent operational failures.

With a compact form factor measuring 115mm in length, 45mm in width, and 121mm in height, it is suitable for DIN rail mounting both horizontally and vertically. This relay complies with international standards including EAC, EN/IEC, UL, and CSA, making it reliable for global industrial applications.

The TPRPM009 relay monitors current continuously, facilitating real-time performance insights and ensuring optimal control in complex electrical systems. It is ideal for three-phase machinery monitoring, automation controller integration, and critical power device supervision in demanding industrial settings.

Designed for three-phase electrical current and voltage monitoring. DIN rail mount design for rapid and secure installation. Screw clamp terminals for enhanced connection reliability. Wide operating temperature range from -10°C to +50°C.

Upstream voltage presence detection feature to protect equipment. Supports remote and automatic reset functionalities to minimize downtime. Electronic thermal overload protection included for circuit safety. 15A contact current rating suitable for industrial applications.

Compliance with EAC, EN/IEC, UL, and CSA standards ensures quality and safety. Compact dimensions allowing flexible mounting options.

This Monitoring Relay is essential for industrial, automation, and electrical control applications requiring accurate current supervision and system reliability. Explore more Schneider Electric products and industrial monitoring solutions on EnvMart.
