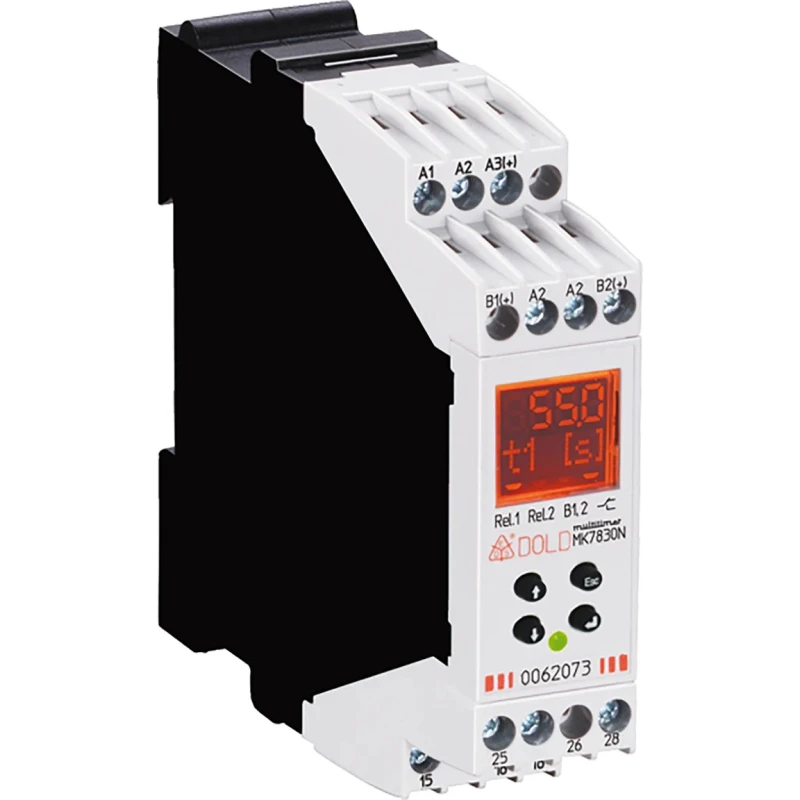

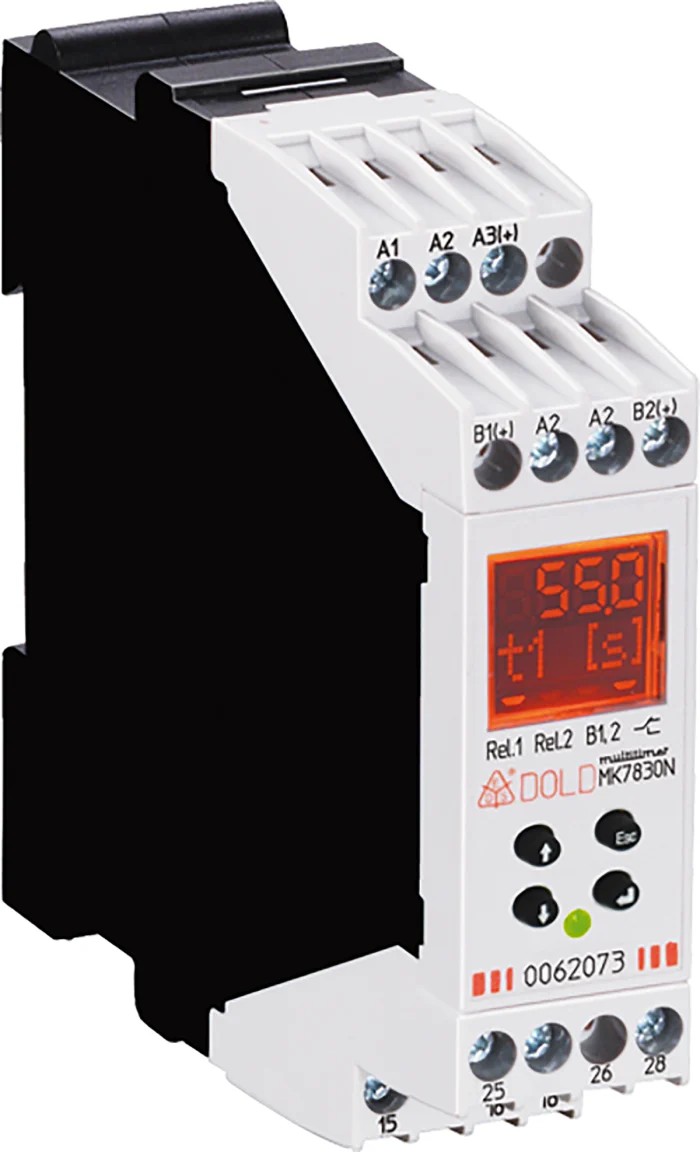

Dold Digital Adjustable Multifunction Monitoring Relay DPDT DIN Rail Mount MK7830N.82PC AC/DC24V + AC230V 0,02s-9999h

Dold MK7830N.82PC Monitoring Relay DPDT DIN Rail Mount features a digital adjustable multifunction timer designed for high precision timing applications in industrial and automation environments. The model supports a versatile voltage range with AC/DC 24V and AC 230V supply compatibility, making it suitable for diverse electrical control setups.

This relay includes two changeover (DPDT) contacts with separate adjustments for timing functions ranging from 0.02 seconds to 9999 hours, offering extensive flexibility for timing control. The built-in timer functions offer multiple programmable modes such as off delay, on delay, pulse forming, cyclic timers, fleeting contacts, and others, ideal for automation sequence controls and monitoring tasks.

Designed for DIN Rail mounting, this relay ensures compact and secure installation within electrical panels or control cabinets. Screw terminals provide reliable connection points for wiring, while optional pluggable terminal blocks allow easy device exchange without rewiring. The relay enclosure meets IP40 and IP20 ratings, protecting internal components from dust and solid particles in controlled indoor environments.

Operating effectively across a wide temperature range of -55°C to +55°C, this monitoring relay is suitable for demanding industrial, manufacturing, and automation applications requiring precise timing and contact switching. It bears CE and RoHS certifications, confirming compliance with European safety and environmental standards.

The relay supports dual voltage supply AC/DC 24V and AC 230V. It features 2 changeover (DPDT) contacts adjustable separately for each output. Time delay functions include off, instantaneous contact, on-delay, fleeting on make, delayed pulse, cyclic timer, off-delay, pulse forming, and fleeting on break.

Compact DIN Rail mount design with screw terminal connections for secure wiring. Robust construction with IP40 and IP20 protection ratings. Wide operating temperature range from -55°C to +55°C. LED indicators for easy monitoring of relay status.

Pluggable terminal blocks for quick device exchange without rewiring.

This relay is ideal for industrial automation, electrical control systems, manufacturing monitoring, and HVAC applications requiring multifunctional timing and reliable switching operation. Its digital timer versatility and rugged design make it a dependable component for industrial electrical panels.
