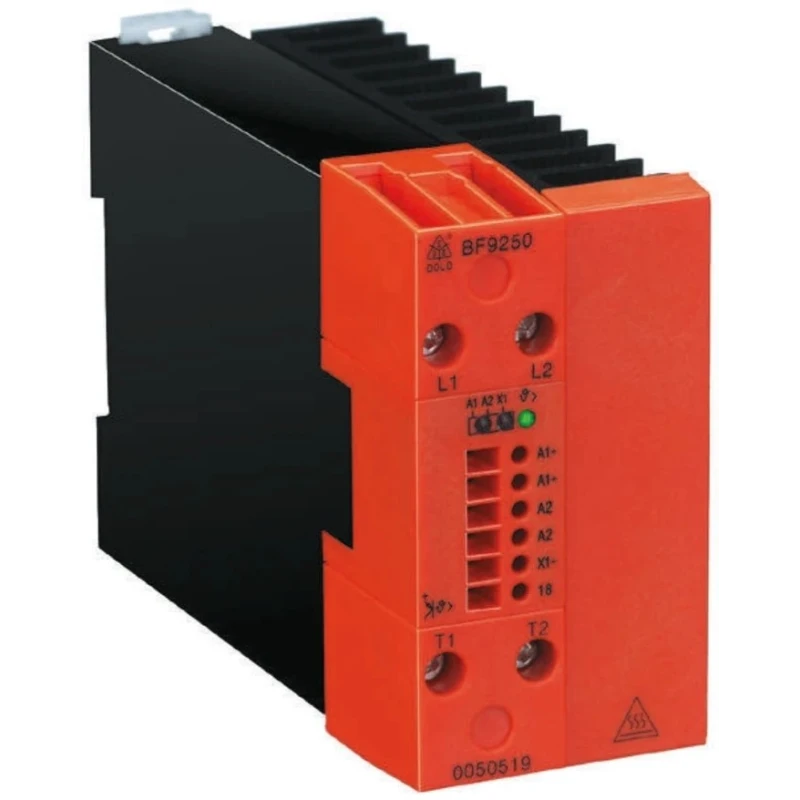

Dold Solid State Relay BF9250, 10 A Load, Top Hat Rail Mount, 280 V Load, 48 V Control BF9250

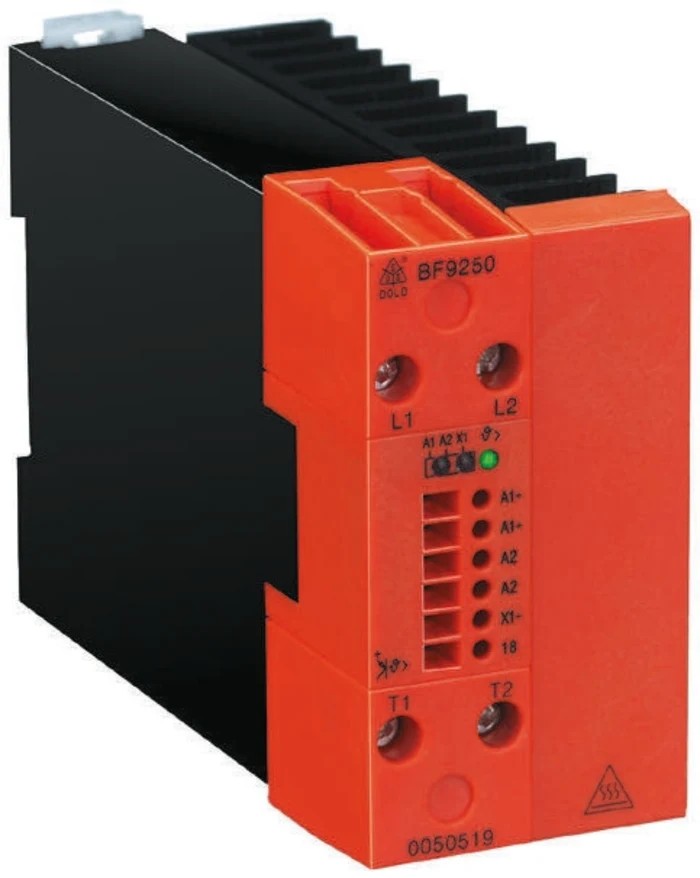

Dold BF9250 Solid State Relay BF9250 is a semiconductor contactor for wear-free, silent switching of AC loads including heating elements, motors, valves, and lighting systems. It supports a maximum load current of 10 A and a maximum load voltage of 280 V, making it suitable for precise control in industrial settings. The relay features a Top Hat Rail mounting system for convenient installation in electrical panels, with a compact design integrating a heat sink to ensure efficient thermal management.

This solid state relay includes important functional benefits such as zero-voltage switching to prevent feedback to the main power grid and integrated temperature monitoring with LED indicators that enhance operational safety and device longevity. Its cage clamp terminal type and IP40, IP20 protection class ensure robust electrical connections and reliability against dust and contact hazards.

The device operates within a temperature range of 0°C to 40°C, suitable for various industrial environments including automation, HVAC, manufacturing, and water treatment plants. It complies with relevant international standards such as EN 60 947-4-2, IEC 60 158-2, and VDE 0660 part 109, certifying its quality and safety.

Additional features include a protection circuit with varistors, control input X1 with low power consumption ideal for PLC control, and a high switching frequency combined with a long service life. The device offers single-phase or three-phase design choices, with switching capabilities up to 480 V AC load and an off-state leakage current of 1mA.

Supports 10 A maximum load current for stable AC load switching. Top Hat Rail mount type for secure, standardized installation. Maximum load voltage of 280 V with 24 V dc minimum voltage operation. Integrated temperature monitoring with LED displays for device protection.

Compliance with EN 60 947-4-2 and IEC 60 158-2 standards ensures reliability. Compact design with integrated heat sink reduces space requirements. Suitable for industrial applications including automation and HVAC. IP40 and IP20 rated for protection against solid objects and contact.

Control voltage range from 3 V minimum to 48 V maximum for flexible control. Equipped with cage clamp terminals for fast and secure wiring.

Set includes one Dold BF9250 Solid State Relay ready for immediate installation in relevant circuits. Explore more quality products in the Solid State Relay category at EnvMart for all your industrial automation needs.
