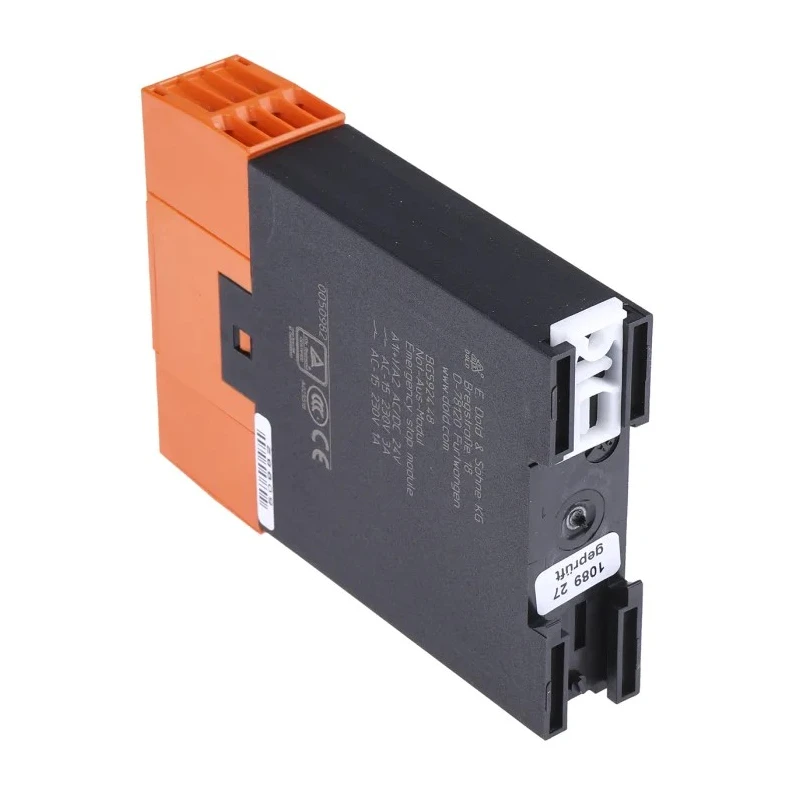

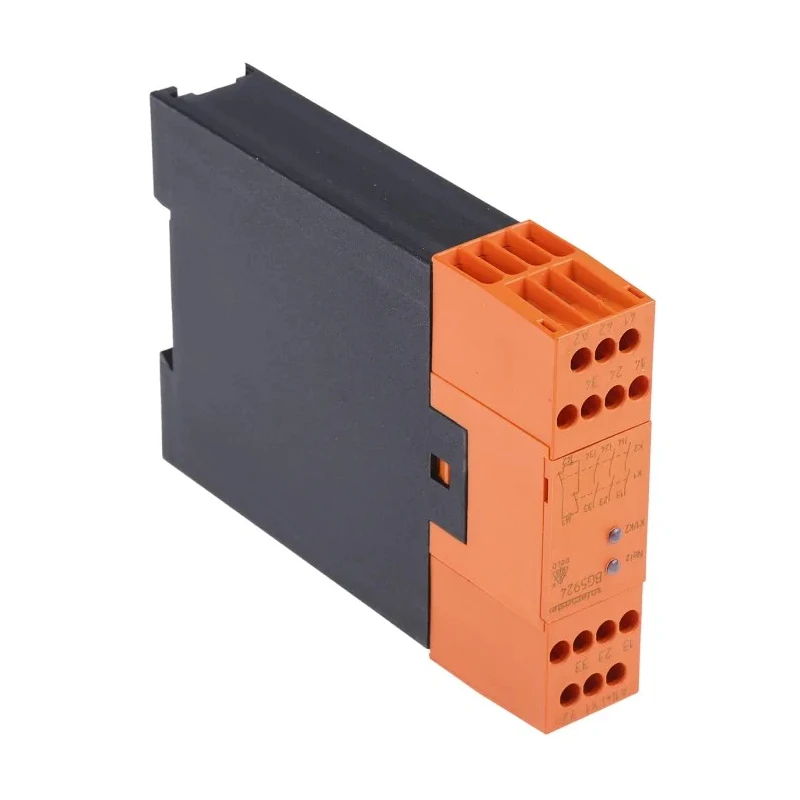

Dold Safety Relay, 4 Safety Contacts, 1 Auxiliary Contact, DIN Rail Mount, 24V DC, 5A Contact Current BG5924.48 AC/DC24V
Specifications
| Country of Origin | Germany |
|---|---|
| Output | 3 NO / 1 NC for AC 250 V |
| Brand | Dold |
| Height | 90mm |
| Length | 84mm |
| Model | BG5924.48 AC/DC24V |
| IP Rating | IP20, IP40 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | BG 5924 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Safety Category | PLe, CAT 4, SIL 3 |
| Terminal type | Screw |
| Reset Method | Automatic or Manual |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Contact Current | 5A |
| Safety Contacts | 4 |
| Number of Auxiliary Contacts | 1 |
| Pilz PNOZ X1, 24V ac/dc Safety Relay, 3 Safety Contacts, 1Brand | Pilz |
| Safety category conforms to EN 954 internal | 4 external: 2 |
Key Features
- Equipped with 4 safety contacts and 1 auxiliary contact for reliable switching.
- Supports automatic or manual reset methods for flexible operation.
- Designed for DIN Rail mounting with screw terminal type.
- Rated for 5A contact current with switching capabilities up to 250V AC and 24V DC.
- Compact dimensions of 90mm height, 22.5mm width, and 84mm length.
- Features LED indicators for channel status and short-circuit detection.
- IP20 and IP40 protection ratings suitable for industrial environments.
- Conforms to Safety Category PLe, CAT 4, SIL 3 for high safety compliance.
Product Description

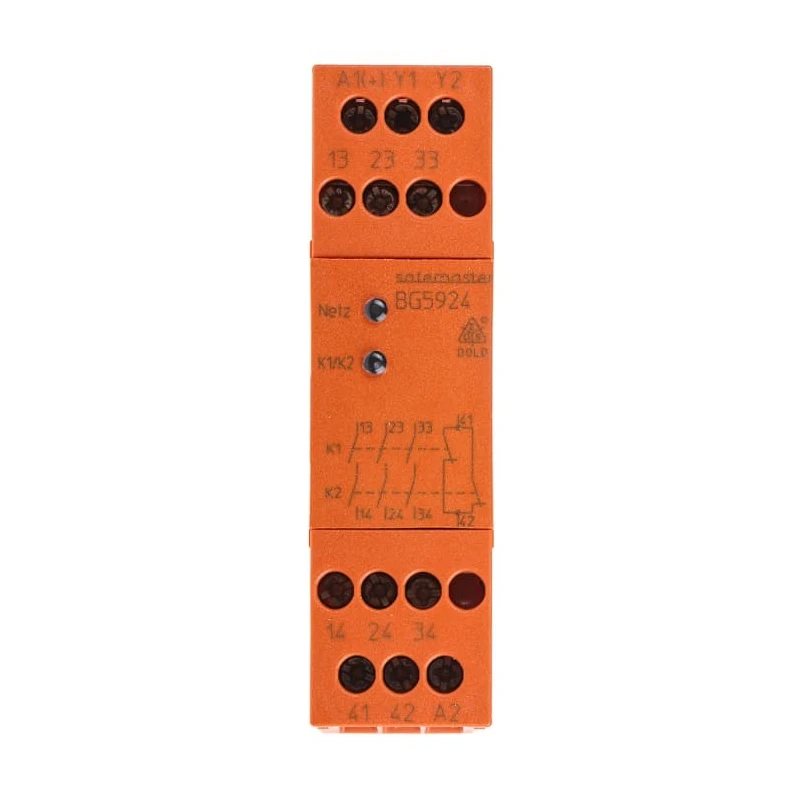

Dold BG5924.48 AC/DC24V Safety Relay is a compact, single-channel emergency stop module with 4 safety contacts and 1 auxiliary contact designed for use in industrial automation and control systems. It is DIN Rail mountable and features screw terminals for secure connections. Operating at 24V DC voltage with a contact current rating of 5A, it delivers reliable switching performance for AC voltages up to 250V. This relay is equipped with LED displays for operating status on channels 1 and 2 and includes short-circuit detection on channel Y1 for enhanced safety.
Designed to meet stringent safety standards including IEC/EN 61508, EN ISO 13849-1, EN 50156-1, UL508, IEC/EN 60947-5-1, CSA, and IEC/EN 62061, the BG5924 relay provides Safety Category PLe, CAT 4, SIL 3 compliance, making it suitable for critical safety applications in manufacturing, industrial automation, and machinery protection. With operational temperature range from -25°C to 55°C, it ensures durability across various industrial environments.
The device's compact dimensions (90mm height, 22.5mm width, and 84mm length) and IP20/IP40 ratings allow for flexible installation in control cabinets. The BG5924 Safety Relay supports both automatic and manual reset methods, providing versatility depending on system needs.
This relay conforms to relevant safety standards including EN 60204-1 for stop functions, EN 418, prEN574, and prEN 954-1, ensuring it meets essential directives for machine safety and personnel protection.
4 safety contacts and 1 auxiliary contact designed for emergency stop applications. Automatic or manual reset options to suit various control scenarios. Robust DIN Rail mounting with screw terminals for reliable installation.
Wide operating temperature range from -25°C to 55°C for harsh industrial use. LED indicators for real-time channel status monitoring. Short-circuit detection enhances operational safety. Compliance with multiple international safety standards ensures dependable performance.
Manufactured in Germany to the highest quality standards.
This Dold safety relay is an essential component in ensuring operator and machine safety in industrial and manufacturing environments. Browse the full range of Safety Relays and industrial automation components on EnvMart for comprehensive safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The safety relay has a contact current rating of 5A.
It can switch AC voltages up to 250V and DC voltages of 24V.
The relay has dimensions of 90mm in height, 22.5mm in width, and 84mm in length.
This model is designed for DIN Rail mounting with screw terminal connections.
It conforms to Safety Category PLe, CAT 4, and SIL 3 standards.
The operational temperature range is from -25°C to 55°C.
It is equipped with 4 safety contacts and 1 auxiliary contact.
Yes, it supports both automatic and manual reset methods for flexible operation.
It has IP20 and IP40 protection ratings suitable for industrial environments.
Key features include LED indicators for channel status, short-circuit detection, and robust DIN Rail mounting.
It is manufactured in Germany.
It complies with multiple standards including IEC/EN 61508, EN ISO 13849-1, and UL508.
