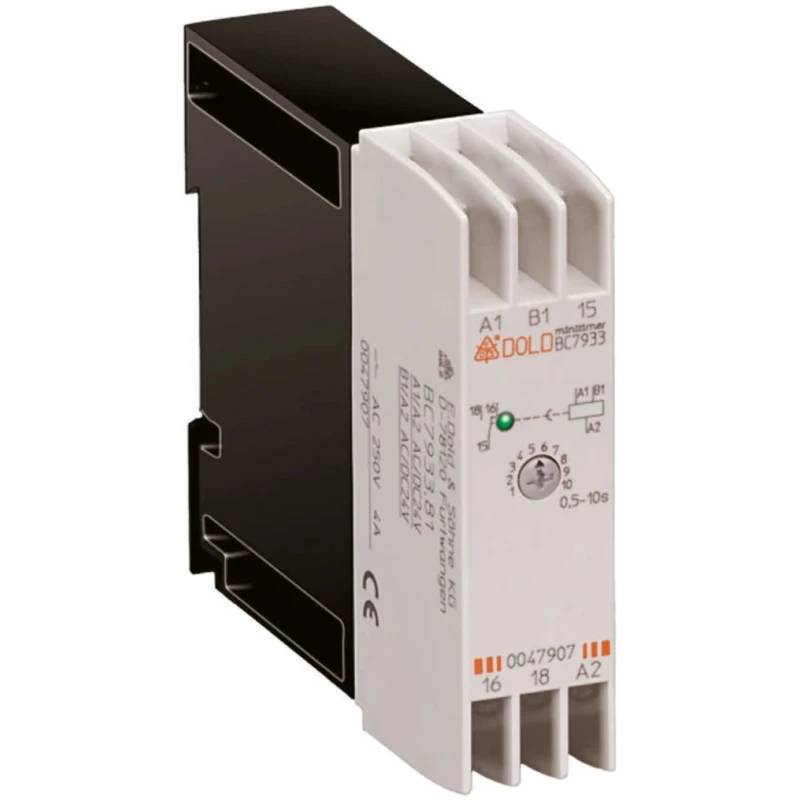

Dold BC7933N Series DIN Rail Timer Relay 1-Contact 24V AC 5 to 100 s SPDT Switch Configuration BC7933N.81 AC/DC24V 5-100S
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 84mm |
| Function | Offset Double Ring End |
| Length | 84mm |
| Model | BC7933N.81 AC/DC24V 5-100S |
| IP Rating | IP40 |
| Mode | Continuous Operation |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | BC7933N |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 5 to 100 s |
| Terminal type | Screw |
| Standards/Approvals | CE |
| Number of Contacts | 1 |
| Switching Voltage | 230V |
| Contact Current | 3A |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 24V ac |
Key Features
- DIN rail mount for easy installation and integration into control panels.
- Time range adjustable from 5 to 100 seconds for versatile timing applications.
- Single changeover (SPDT) contact rated at 3A current capacity.
- Compact size with dimensions 84mm height, 84mm length, and 22.5mm width.
- Equipped with screw terminal type for secure wiring connections.
- IP40 rated enclosure protects internal components from solid objects.
- Operating temperature range from -20°C to 60°C suitable for various industrial environments.
- Off-delay timer relay with continuous operation mode and offset double ring end function.
Product Description
Dold BC7933N.81 AC/DC24V 5-100S timer relay is a high-precision off-delay relay designed for industrial and automation applications requiring accurate timing control with a 24V AC power supply. This relay features a single changeover (SPDT) contact configuration capable of switching 230V loads up to 3A.
The timer relay mounts conveniently on DIN rails, allowing quick and secure installation in control cabinets and automation systems. Its timing range from 5 to 100 seconds can be adjusted easily via a screwdriver slot, providing flexibility for a variety of timing tasks.
Constructed with screw terminals and an IP40 rated enclosure, it ensures reliable electrical connections and protection from dust and solid objects. The relay operates in a continuous mode with an offset double ring end function, ideal for applications such as industrial process controls, HVAC systems, manufacturing automation, and electrical signal conditioning.
The device includes an LED indicator to clearly show the contact position status. It operates effectively within a temperature range of -20°C to +60°C, complies with CE certification, and conforms to DIN EN 61 812-1 standards, highlighting its safety and quality benchmarks. The compact form factor measures 84mm by 84mm by 22.5mm, optimizing space in electrical panels.
Manufactured in Germany, this Dold timer relay represents robust engineering and reliable performance for industrial, laboratory, and commercial use. DIN rail mount for efficient control panel integration. Adjustable timing from 5 to 100 seconds for various applications.
Single SPDT contact rated at 3A for switching. Compact dimensions of 84mm x 84mm x 22.5mm. Screw type terminals providing secure wiring. IP40 rated for protection against solid intrusions. Operational temperature range suitable for diverse environments.
Continuous operation with offset double ring end function. CE certified and complies with DIN EN 61 812-1 standard. LED indicator for clear contact status indication. Made in Germany ensuring quality and durability. Explore the range of Dold Timer Relays on EnvMart for reliable automation and control solutions in electronics and electrical industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this timer relay is adjustable from 5 to 100 seconds, allowing for versatile timing applications.
It features a single changeover (SPDT) contact configuration, which is capable of switching loads up to 230V and 3A.
The maximum operating temperature for this timer relay is 60°C, making it suitable for various industrial environments.
Timing adjustment is made easy via a screwdriver slot, allowing for precise control of the timing settings.
It has an IP40 rated enclosure, which protects the internal components from solid objects and dust.
The dimensions of this model are 84mm in height, 84mm in length, and 22.5mm in width.
It is equipped with screw terminals, providing secure wiring connections for installation.
The minimum operating temperature for this timer relay is -20°C, suitable for a range of environments.
This model operates in continuous mode and features an offset double ring end function.
It complies with CE certification and conforms to DIN EN 61 812-1 standards, highlighting its safety and quality benchmarks.
This timer relay is manufactured in Germany, ensuring quality and reliability in its engineering.
It is suitable for applications such as industrial process controls, HVAC systems, manufacturing automation, and electrical signal conditioning.
