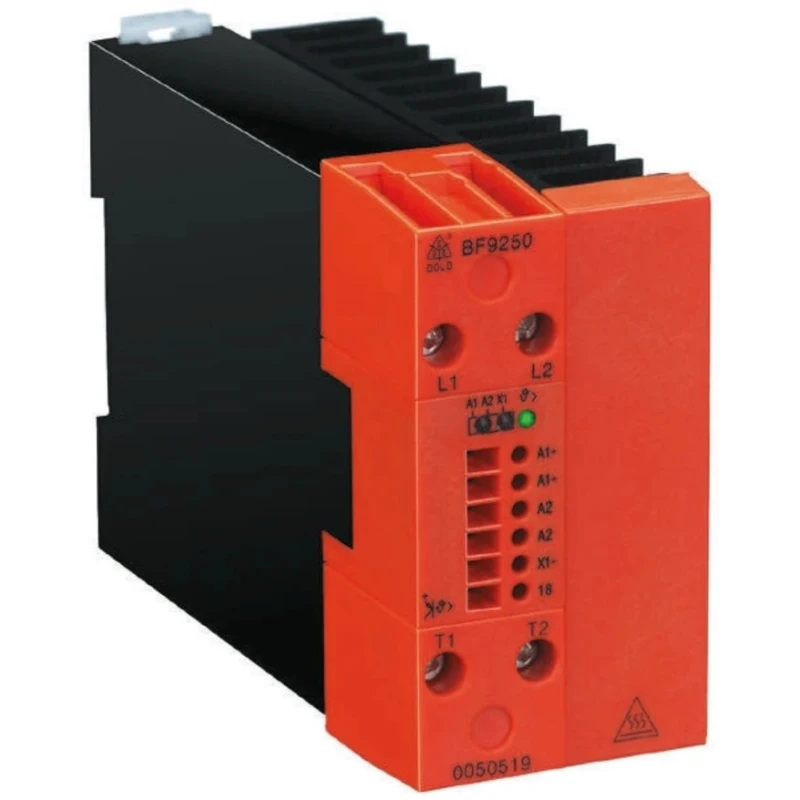

Dold BF9250 Series Solid State Relay, 15 A Load, Top Hat Rail Mount, 280 V Load, 48 V Control BF9250
Specifications
| Country of Origin | Malta |
|---|---|
| Brand | Dold |
| Height | 90mm |
| Length | 85mm |
| Model | BF9250 |
| IP Rating | IP40, IP20 |
| Width | 120mm |
| Mount Type | Top Hat Rail |
| Series | BF9250 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Terminal type | Cage Clamp |
| Maximum Load Current | 15A |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 24V dc |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 48V |
| Off State Leakage Current | 1mA |
Key Features
- Supports maximum load voltage of 280 V for AC loads.
- Equipped with cage clamp terminal type for secure connections.
- Features low off-state leakage current of 1 mA enhancing energy efficiency.
- Integrated temperature monitoring protects against excess current damage.
- Zero-voltage switching prevents feedback to main power grid for safe operation.
- Three LED displays provide clear device status indication.
- Suitable for wear-free and silent switching of motors, heating, valves, and lighting.
- IP40 and IP20 rated for robust protection in industrial environments.
Product Description
Dold BF9250 Series Solid State Relay BF9250 is designed for industrial and automation applications requiring silent, wear-free switching of AC loads up to 15 A and 280 V. This top hat rail mountable relay offers exceptional control with a 48 V control voltage and cage clamp terminals ensuring secure and reliable connections.
The relay features zero-voltage switching technology to prevent feedback currents into main power grids, enhancing system stability. Integrated temperature monitoring via LED indicators provides protection against excessive current, preserving device longevity and safety.
Compactly built with dimensions 85 mm (length) x 90 mm (height) x 120 mm (width), it is IP40 and IP20 rated to withstand industrial installation conditions. The off state leakage current of just 1 mA ensures minimal energy loss during operation.
Typical industrial use includes control of heating elements, motors, valves, lighting, and other AC loads where frequent switching and high reliability are vital. The three LED status displays provide clear visual feedback on the device condition.
This device complies with EN 60 947-4-2, IEC 60 158-2, and VDE 0660 part 109 standards, making it suitable for automation, manufacturing, HVAC systems, and electrical installations.
Supports 15 A maximum load current. Top hat rail mounting for easy DIN rail installation. Temperature monitoring with LEDs for protection. Wear-free silent switching suitable for frequent operation. Fits industrial applications including HVAC, lighting, and motor control.
Low off-state leakage current reduces power waste. Compliance with relevant European electrical standards. IP40 and IP20 protection levels ensure durability. Explore more Solid State Relays and industrial automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 15 A.
It supports a maximum load voltage of 280 V for AC loads.
This relay is equipped with cage clamp terminals for secure connections.
The control voltage range for the BF9250 is from 3 V to 48 V.
The dimensions are 85 mm in length, 90 mm in height, and 120 mm in width.
The off-state leakage current is 1 mA, which enhances energy efficiency.
The relay has an IP40 and IP20 rating, providing robust protection in industrial environments.
The minimum operating temperature is 0°C, and the maximum operating temperature is 40°C.
This model is suitable for controlling heating elements, motors, valves, lighting, and other AC loads.
Yes, it includes integrated temperature monitoring with LED indicators for protection against excessive current.
It complies with EN 60 947-4-2, IEC 60 158-2, and VDE 0660 part 109 standards.
This solid state relay is designed for top hat rail mounting, facilitating easy installation on DIN rails.
