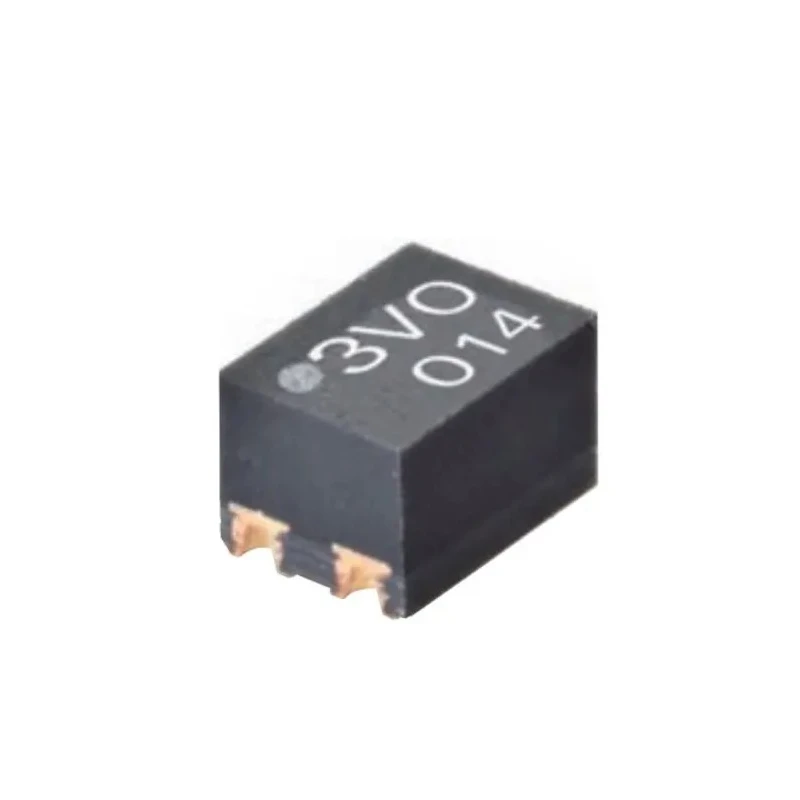

Omron G3VM Series Solid State Relay 1 A Load 60 V Surface Mount MOSFET G3VM

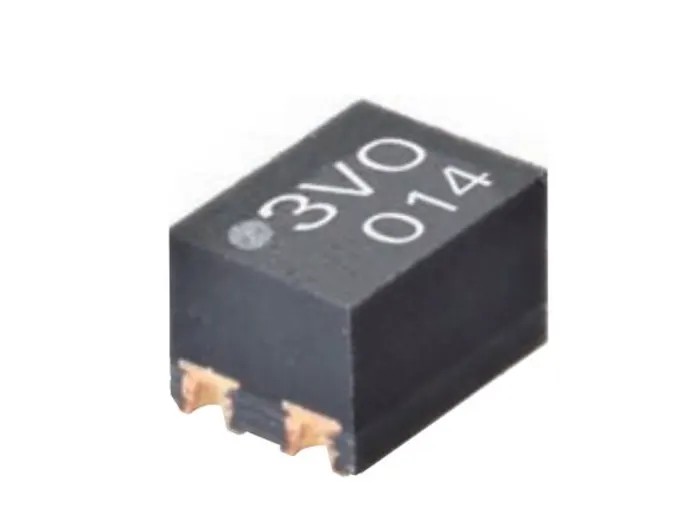

Omron G3VM series solid state relay model G3VM-61QV2H(TR05) features a compact S-VSON(L) MOSFET relay with surface mount PCB terminals, capable of handling a maximum load current of 1 amp and maximum load voltage of 60 volts. This relay employs a photonic transfer principle translating voltage into light signals, providing excellent I/O isolation rated at 2,500 Vrms and outstanding isolation performance, making it ideal for precise signal switching in industrial and automation systems.

This Solid State Relay supports both AC and DC switching functions with SPST contact configuration. Its MOSFET output structure eliminates mechanical contacts, significantly reducing switching noise compared to electromechanical relays. The relay is designed for reliable operation under harsh conditions, withstanding temperatures from -40°C up to 125°C, ensuring durable performance in industrial, manufacturing, laboratory, and automation environments.

The device’s ultra-small footprint suits high-density PCB layouts, optimizing space while offering high-speed switching and low driving current requirements. The technology offers longer operational life than mechanical relays and excellent shock resistance, making it suitable for environments demanding high reliability and minimal maintenance.

Ultra-small S-VSON(L) package fits compact electronic designs. 2,500 Vrms input-to-output isolation ensures signal integrity. Suitable for AC/DC switching applications with SPST contacts. Operating temperature range from -40°C to 125°C for wide environmental tolerance.

MOSFET output type reduces switching noise significantly. Off state leakage current as low as 1 μA prevents unwanted current flow. Low input drive current enhances power efficiency in control circuits. 80 pF capacitance minimizes signal interference.

The Omron G3VM relay series is well-suited for applications in industrial automation, electronic instrumentation, HVAC control systems, and other commercial or laboratory equipment requiring noise-free, durable, and efficient switching solutions. Its performance characteristics make it an excellent choice for signal conditioning, embedded system electronics, and control interfaces.
