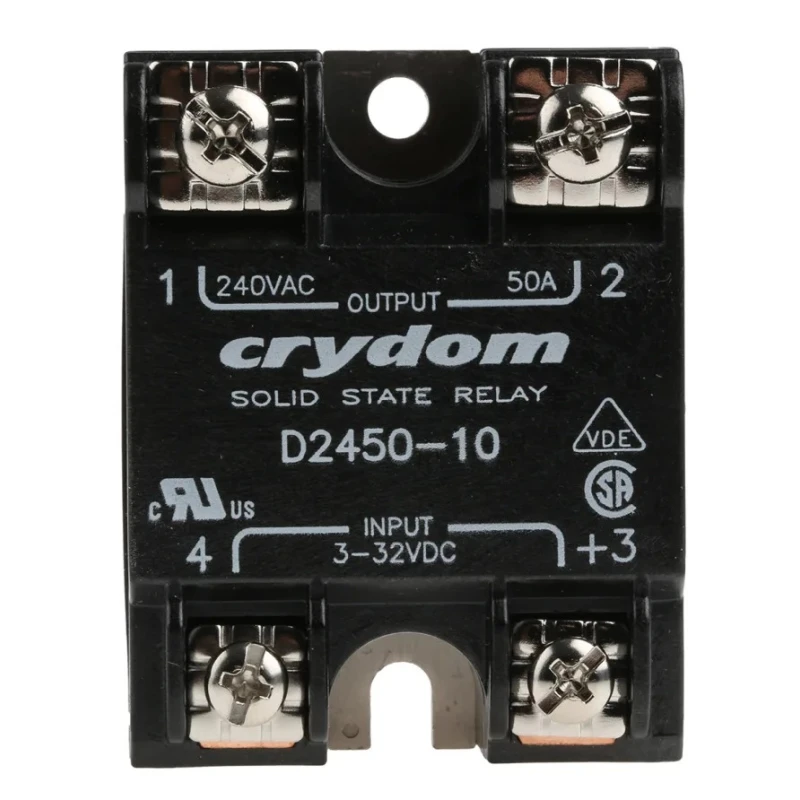

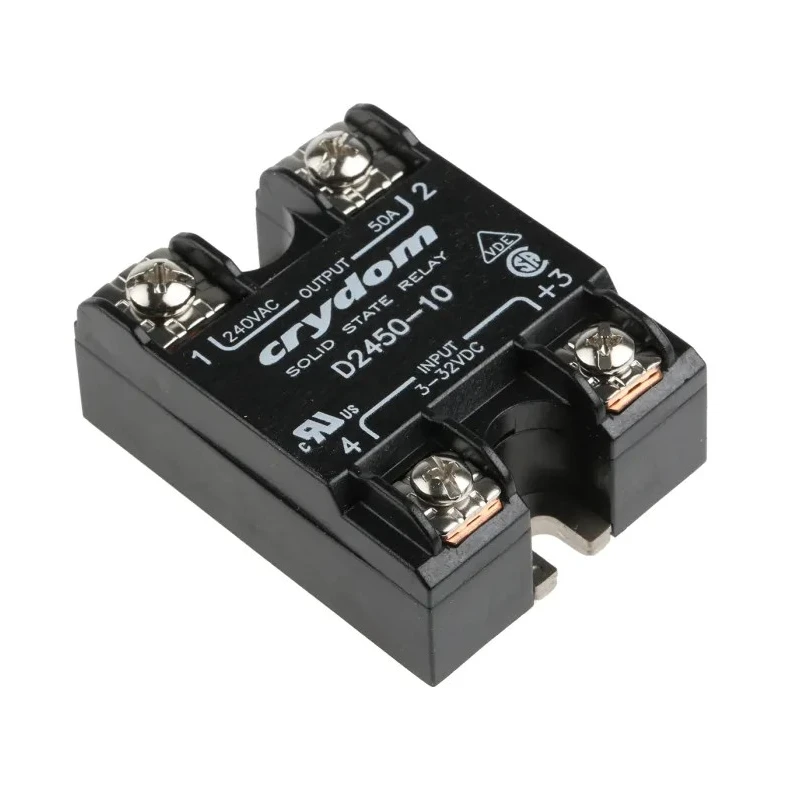

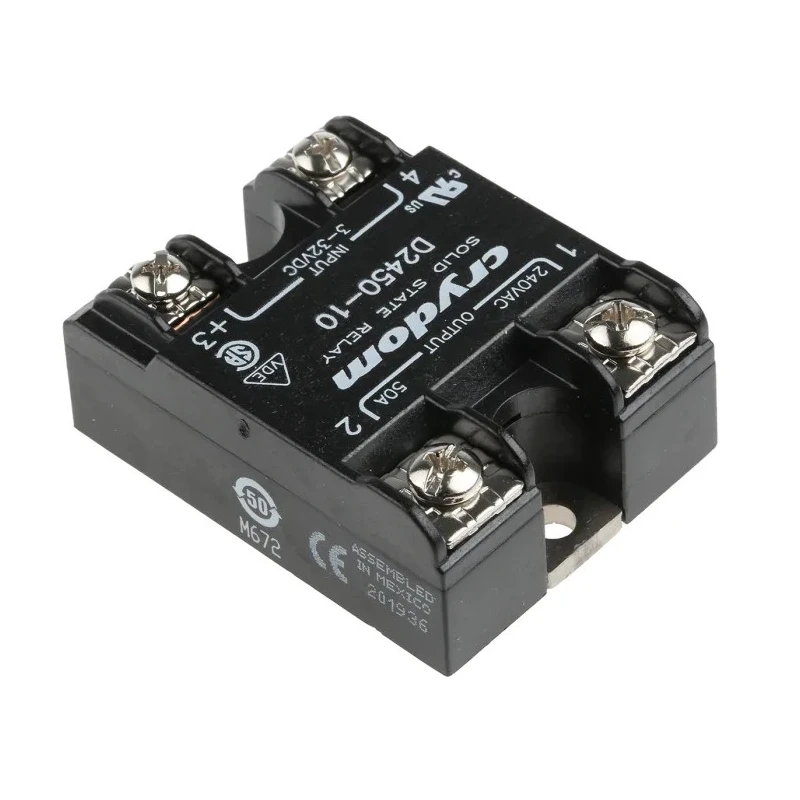

Crydom 1 Series Solid State Relay Panel Mount 50A Load 280 Vrms Load 32V Control D2450-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 58.4mm |
| Model | D2450-10 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, UR, CSA |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Supports zero cross switching for efficient load control.
- Operates within a control voltage range of 3V to 32V.
- Equipped with screw terminal types for secure connectivity.
- Wide operating temperature range from -40°C to 80°C for harsh environments.

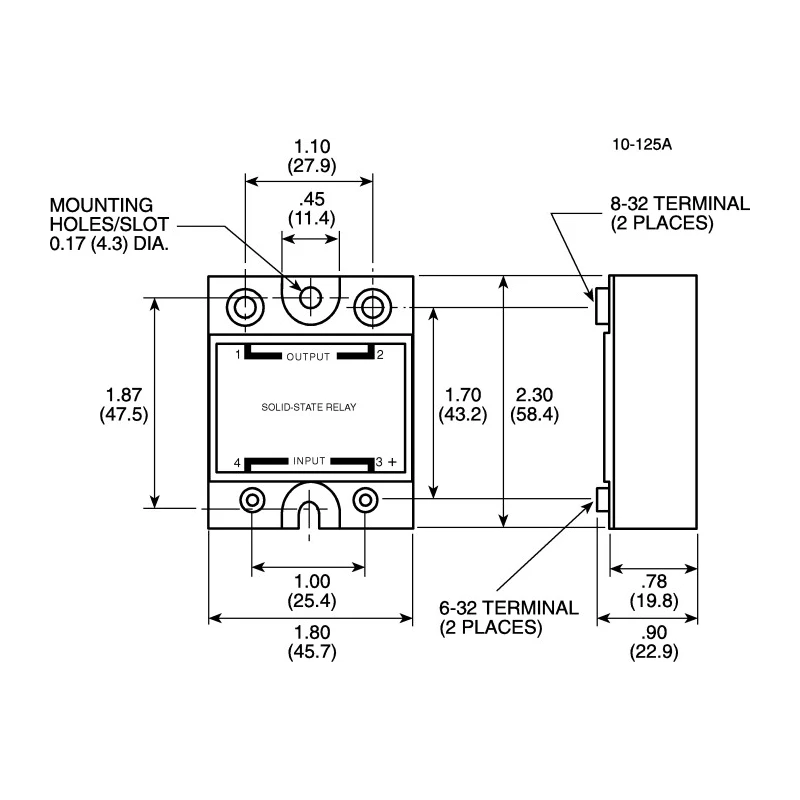

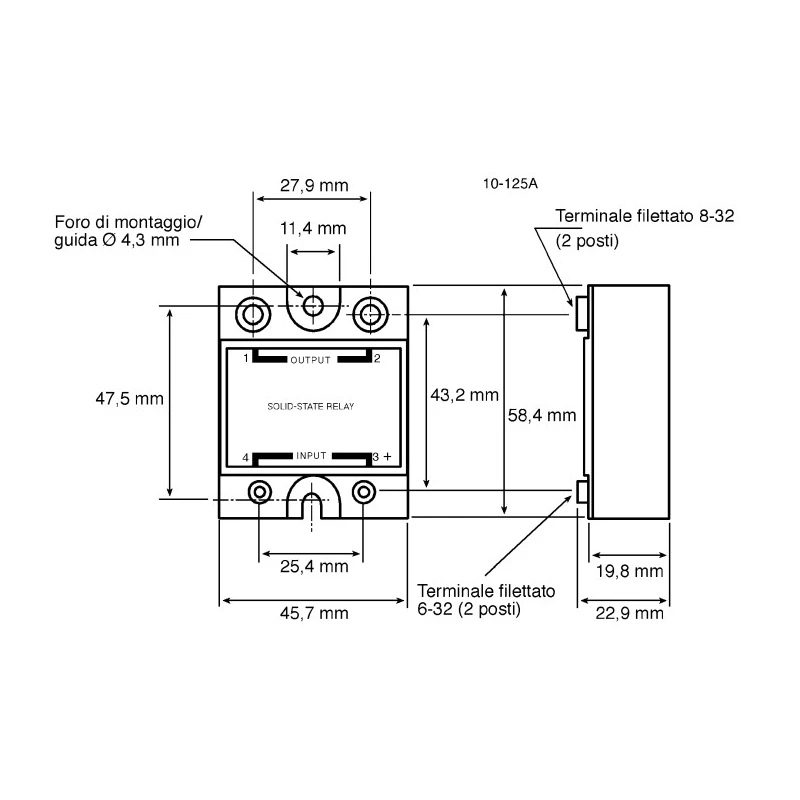

- Compact dimensions with length of 58.4mm, width 22.6mm, and height 23mm.
- Output type is SCR enabling variable power control.
- Anti-rotation barriers prevent screw loosening during installation.
- Low off-state leakage current of 1mA ensures energy efficiency.
Product Description
Crydom D2450-10 Solid State Relay is tailored for industrial and commercial panel mount use, supporting a robust load current rating of 50A and maximum load voltage of 280 Vrms. Its versatile operation includes control voltages from 3V to 32V, making it suitable for diverse control systems.
The device features zero cross switching, delivering reduced electrical noise and enhanced efficiency in switching applications. Equipped with secure screw terminals and anti-rotation barriers, it ensures safe and reliable installation in panel assemblies.
Its compact form factor (58.4mm length, 22.6mm width, 23mm height) allows flexible mounting in constrained spaces. Operating over a broad temperature range from -40°C to 80°C, it withstands harsh industrial environments.
The SCR output facilitates precise control of electric power, ideal for applications in heating, lighting, and motion control. Low off-state leakage current of 1mA contributes to energy conservation during inactive periods.
Crydom D2450-10 Solid State Relay complies with RoHS, UR, and CSA standards, guaranteeing safety and regulatory conformance. Its high reliability is underscored by a long mean time between failures (MTBF), making it a preferred choice for demanding automation systems.
Supports zero cross switching for efficient load control. Operates with 3V to 32V control voltage. Screw terminal type enables secure wiring. Wide temperature range from -40°C to 80°C. Compact size: 58.4mm (L) x 22.6mm (W) x 23mm (H).
SCR output suitable for variable power control. Anti-rotation barriers prevent screw loosening. Low off-state leakage current of 1mA for energy saving. Meets RoHS, UR, and CSA approvals.
This solid state relay is widely used in industrial automation, HVAC systems, manufacturing control panels, and electrical distribution setups. It offers superior durability and performance where fast switching and long service life are critical. For more options and related products, explore the Solid State Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 50A.
This model operates within a control voltage range of 3V to 32V.
The dimensions of this solid state relay are 58.4mm in length, 22.6mm in width, and 23mm in height.
It features an SCR output, which enables variable power control.
The operating temperature range for this relay is from -40°C to 80°C.
This model is equipped with screw terminal types for secure connectivity.
Yes, it supports zero cross switching for efficient load control.
The off-state leakage current is 1mA, contributing to energy efficiency.
It complies with RoHS, UR, and CSA standards, ensuring safety and regulatory conformance.
This solid state relay is widely used in industrial automation, HVAC systems, and manufacturing control panels.
It includes anti-rotation barriers that prevent screw loosening during installation.
The IP rating for this model is IP20.
