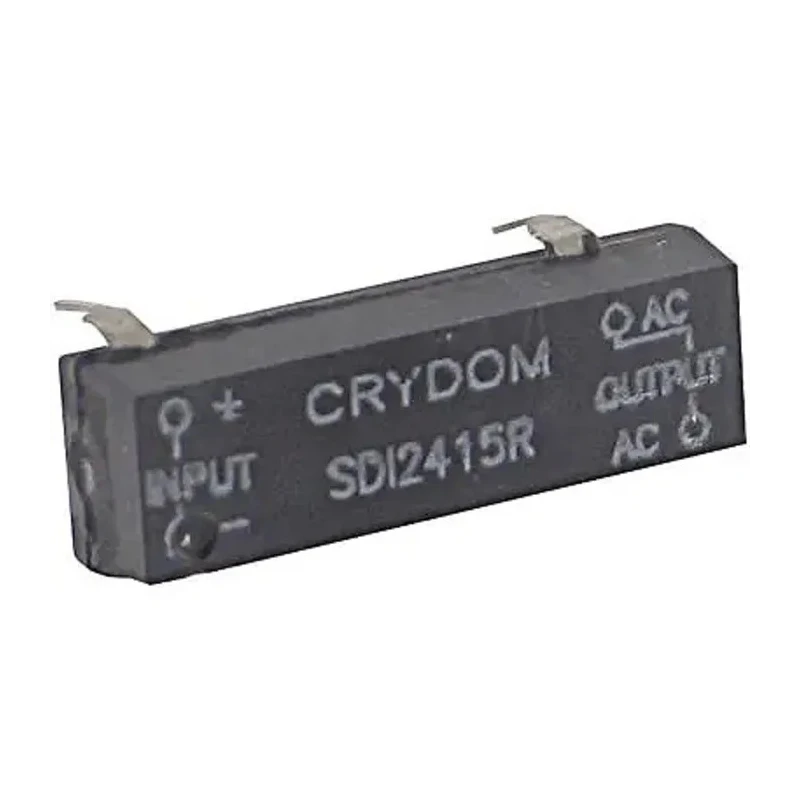

Crydom SDV Series Solid State Relay 1.5A Load PCB Mount 280Vrms Load 10V dc Control SDV2415R
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 4.8mm |
| Length | 21.6mm |
| Model | SDV2415R |
| Width | 6.7mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | SDV |
| Maximum Operating Temperature | +80°C |
| Contact Configuration | SPST |
| Package Type | DIP-16 |
| Capacitance | 2pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 1.5A |
| Standards/Approvals | UL, RoHS |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 10V dc |
| Off State Leakage Current | 0.01mArms |
Key Features
- Single pole single throw (SPST) contact configuration for precise switching.
- Supports load voltages from 12Vrms minimum to 280Vrms maximum.
- Control voltage range from 3.5V dc minimum to 10V dc maximum.
- DIP-16 package type compatible with through-hole PCB mounting.
- Operating temperature range from -30°C to +80°C for reliable industrial use.
- Low off-state leakage current of 0.01mArms ensuring energy efficiency.
- Output type is SCR with instantaneous switching function.
- Complies with UL and RoHS standards ensuring safety and environmental compliance.
Product Description
The Crydom SDV2415R Solid State Relay from the SDV Series is designed for high-density PCB mounting with a DIP-16 package suitable for through-hole technology. This solid state relay is rated for a maximum load current of 1.5A and can handle load voltages up to 280Vrms, supporting a wide range of industrial and automation applications.
The relay provides reliable and instantaneous switching with a single pole single throw (SPST) contact configuration. Its low off-state leakage current of 0.01mArms helps reduce power loss during operation, while the low input-output capacitance of 2pF minimizes noise and cross-talk on sensitive circuits.
This model operates with a control voltage range between 3.5V dc and 10V dc, making it compatible with common control logic circuits. It features through-hole terminal type for stable PCB mounting and ensures consistent performance within an operating temperature range from -30°C to +80°C.

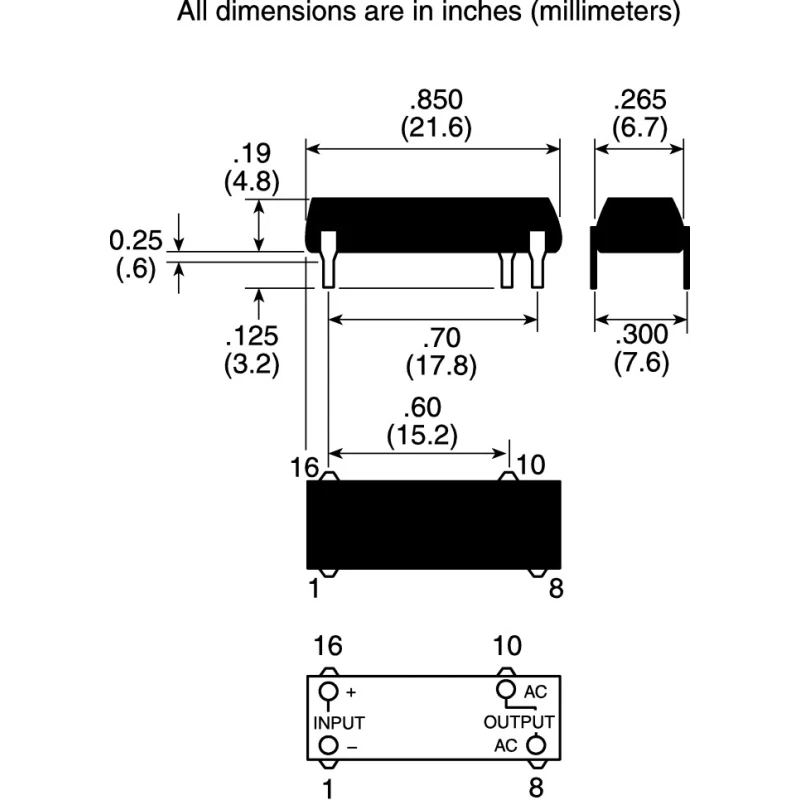

Compliant with UL and RoHS standards, the SDV2415R offers safe and environmentally friendly operation. Its compact dimensions of 6.7 mm width, 4.8 mm height, and 21.6 mm length allow integration into space-constrained electronic assemblies.
Manufactured in Mexico, this solid state relay is ideal for use in industrial automation, control systems, and signal conditioning applications where reliable switching without mechanical wear is essential.
Single pole single throw (SPST) contact configuration for precise switching. Supports load voltages from 12Vrms minimum to 280Vrms maximum. Control voltage range from 3.5V dc minimum to 10V dc maximum. DIP-16 package type compatible with through-hole PCB mounting.
Operating temperature range from -30°C to +80°C for reliable industrial use. Low off-state leakage current of 0.01mArms ensuring energy efficiency. Output type is SCR with instantaneous switching function. Complies with UL and RoHS standards ensuring safety and environmental compliance.
Browse more Solid State Relays and other electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 1.5A.
This solid state relay operates with a control voltage range from 3.5V dc to 10V dc.
It supports load voltages from a minimum of 12Vrms to a maximum of 280Vrms.
The operating temperature range for this relay is from -30°C to +80°C.
It features a single pole single throw (SPST) contact configuration.
The package type is DIP-16, which is suitable for through-hole PCB mounting.
The off-state leakage current is 0.01mArms, which helps in reducing power loss during operation.
The output type is SCR, which provides instantaneous switching functionality.
The dimensions are 6.7 mm in width, 4.8 mm in height, and 21.6 mm in length.
It complies with UL and RoHS standards, ensuring safety and environmental compliance.
The low input-output capacitance is 2pF, which minimizes noise and cross-talk.
This solid state relay is manufactured in Mexico.
