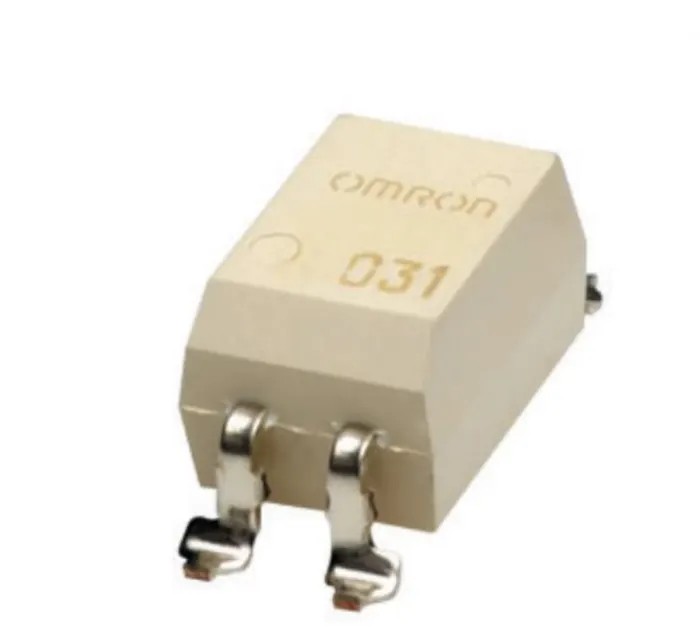

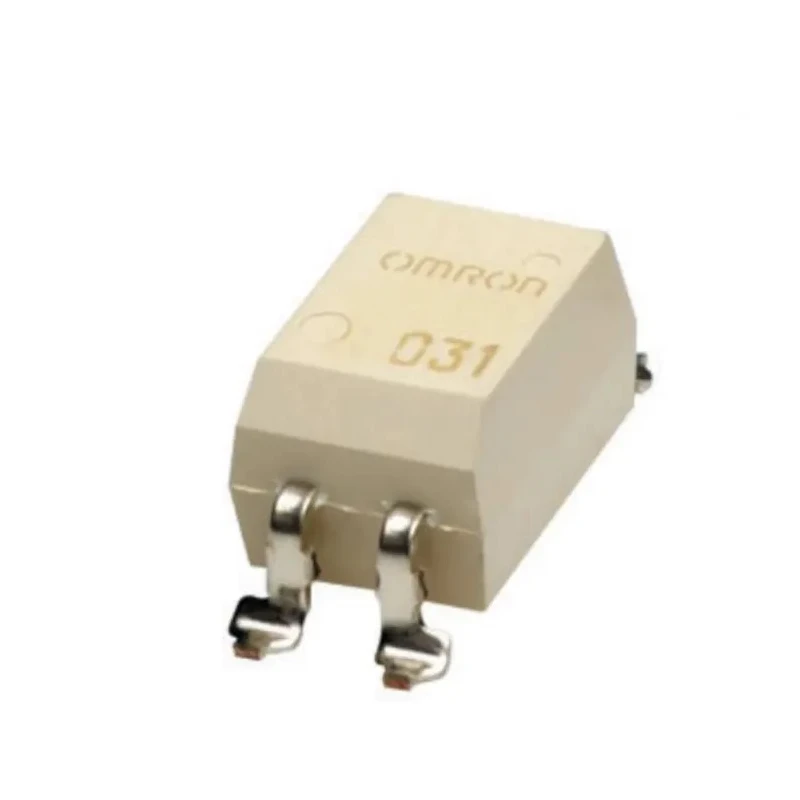

Omron G3VM Series Solid State Relay 4 A Load Surface Mount 30 V Load G3VM

Free Delivery in India | Lowest Global Shipping Charges

Omron G3VM Series Solid State Relay 4 A Load Surface Mount 30 V Load G3VM

Name: Omron G3VM Series Solid State Relay 4 A Load Surface Mount 30 V Load G3VM
Brand: Omron
SKU: 423793
Price: 11.2 USD
Availability: InStock



Category Solid State Relay Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Model	G3VM
Mount Type	Surface
Output type	MOSFET
Series	G3VM
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Capacitance	450pF
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Switching Function	AC/DC Switching
Maximum Load Current	4A
Standards/Approvals	RoHS
Maximum Load Voltage	30V
Minimum Load Voltage	0.01V
Off State Leakage Current	1μA

Key Features

Utilizes MOSFET output for low switching noise and high-speed switching.
Supports maximum load current of 4 A and maximum load voltage of 30 V.
Features surface mount type with PCB terminal for easy integration.
Operates efficiently within a temperature range of -40°C to 85°C.
Provides excellent I/O isolation with a dielectric strength of 2,500 Vrms between input and output.
Complies with RoHS standards ensuring environmentally friendly manufacturing.
Extremely low off-state leakage current of 1 µA, supporting energy-saving applications.
Compact DIP 4-pin package reducing weight and space in designs.

Product Description

Omron G3VM Series Solid State Relay Model G3VM is a 4 A load MOSFET relay designed for surface mount applications operating at a maximum load voltage of 30 V. It offers ultra small size and weight with low driving current and long operating life, making it ideal for industrial automation, electrical circuits, and signal conditioning tasks.

This MOSFET relay exhibits outstanding performance with low ON resistance and high switching capacity, effectively eliminating switching noise common in mechanical relays. The input and output are optically isolated, providing strong I/O isolation typically rated at 2,500 Vrms, ensuring system robustness and reliability.

The relay supports both AC and DC switching functions with a single-pole single-throw (SPST) contact configuration. The device operates safely in a wide temperature range from -40°C to 85°C, making it suitable for various environmental conditions.

Notably, the relay features an off-state leakage current as low as 1 μA and a capacitance of 450 pF, ensuring minimal signal disturbance. Its PCB terminal mount facilitates easy assembly on printed circuit boards, optimizing manufacturing efficiency.

Compliant with RoHS directives, this solid state relay meets environmental safety standards. Manufactured in Japan, it is engineered to industrial quality standards for durability and optimal performance.

Utilizes MOSFET output for noise-free, high-speed switching. Supports a maximum load current of 4 A and voltage of 30 V. Surface mount base with PCB terminal for seamless circuit integration. Wide operating temperature range improves versatility.

Enhanced optical I/O isolation at 2,500 Vrms ensures safety. Low off-state leakage current reduces energy consumption. Compact design suitable for space-constrained applications. RoHS compliant for environmentally responsible use.

Manufactured in Japan with high-quality standards.

This Solid State Relay is widely used in industrial automation, manufacturing equipment, HVAC systems, electrical control panels, and signal conditioning modules where noise reduction, fast switching, and reliable isolation are critical. For more products in this category, explore the Electronics & Electricals section at EnvMart.
