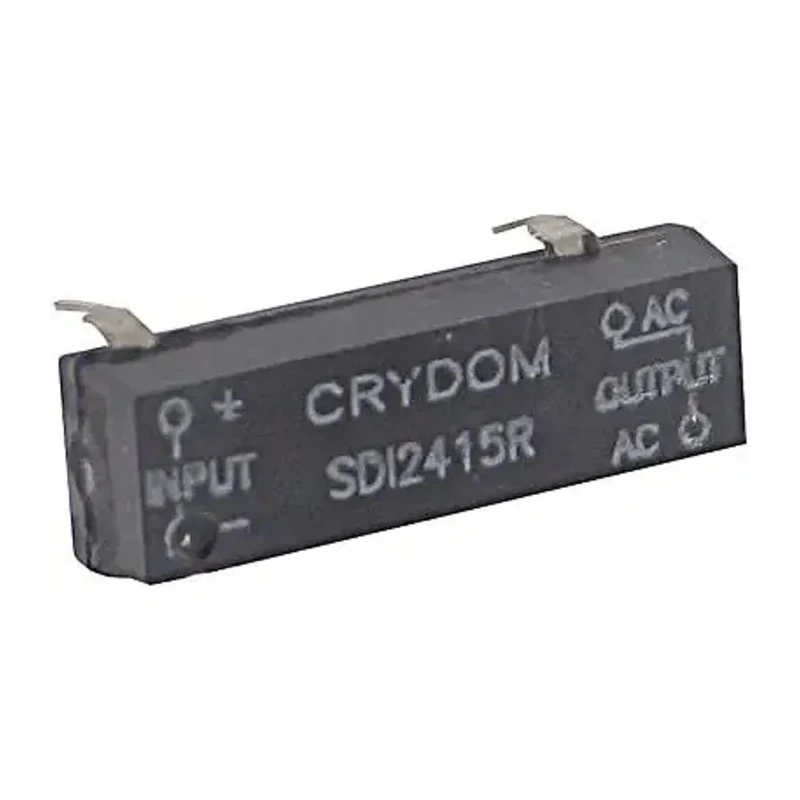

Crydom SPF Series Solid State Relay 1.5A Load PCB Mount 280Vrms Load SDI2415R

Crydom SDI2415R SPF Series Solid State Relay is designed for automation and electrical applications requiring reliable solid state switching with a maximum load current of 1.5 Amperes and a load voltage capability of up to 280 Vrms. It mounts onto PCBs using its DIP-16 package, facilitating easy integration into electronic and industrial control circuits.

This relay features an SCR output type offering instantaneous switching functionality with very low off-state leakage current of only 0.01 mArms, providing efficient electrical isolation and stable operation in demanding environments. Its through-hole terminal type and SPST contact configuration simplify connection and use in various relay applications.

Its operating temperature range spans from -30°C to +80°C, making it suitable for rigorous industrial, manufacturing, HVAC, and automation system environments where temperature variability is expected. The relay has minimal input-output capacitance of 2 pF ensuring signal integrity and low noise operation.

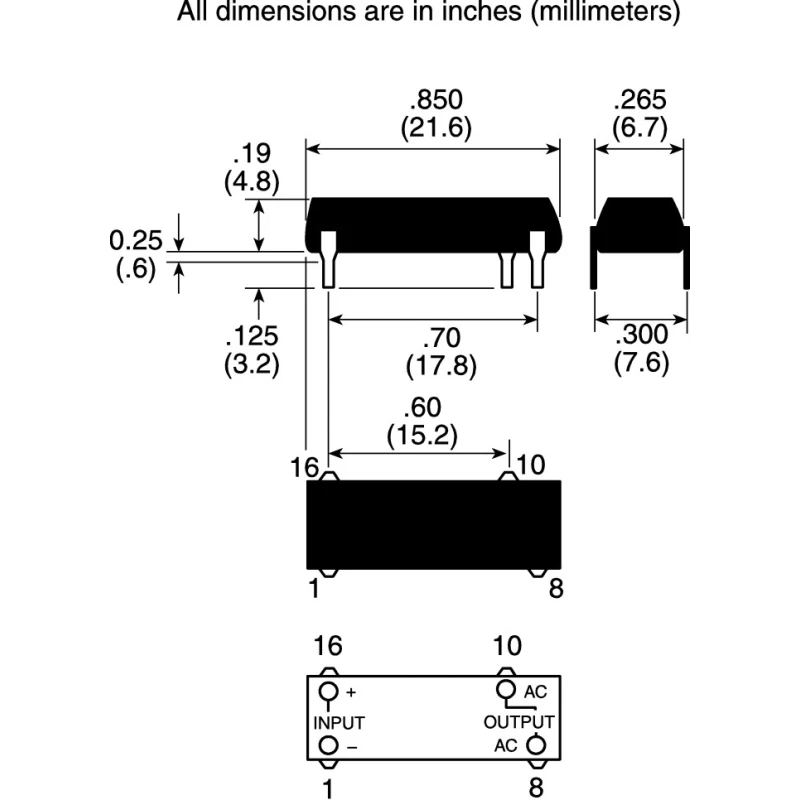

The Crydom SPF Series relay complies with industry standards including UL certification and RoHS environmental requirements, affirming its quality and regulatory adherence. With compact dimensions (21.6 mm length, 6.7 mm width, 4.8 mm height), it is ideal for densely packed printed circuit boards and efficient space utilization.

This solid state relay is manufactured in Mexico and designed to optimize machinery efficiency, reduce downtime, and provide reliable switching in commercial and industrial automation systems.

The relay uses SCR output for reliable switching performance. Constructed in a DIP-16 package optimized for high density PCB mounting. Operating temperature range is wide, from -30°C to 80°C, suitable for industrial environments.

It provides instantaneous switching with low off-state leakage current of 0.01 mArms. Built with through-hole terminal type and SPST contact configuration for simplified integration. The relay offers low input-output capacitance of 2pF max ensuring minimal signal interference.

Rated for maximum load voltage of 280 Vrms and minimum of 12 Vrms, enabling versatile control applications. Certified with UL safety approvals and RoHS compliant for environmental standards. Dimensions measure 21.6 mm length, 6.7 mm width, and 4.8 mm height for compact installation.
