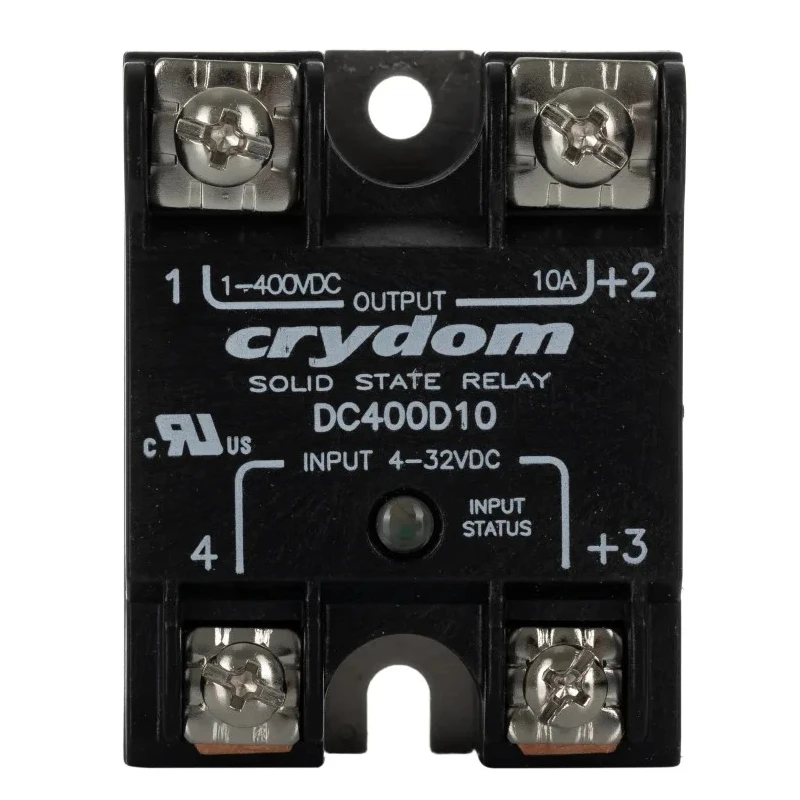

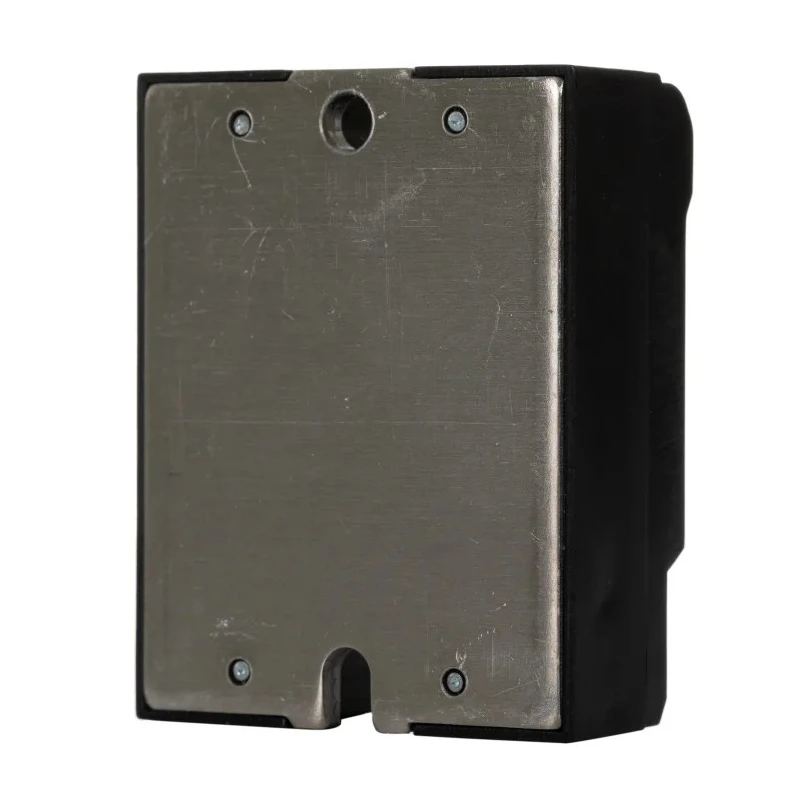

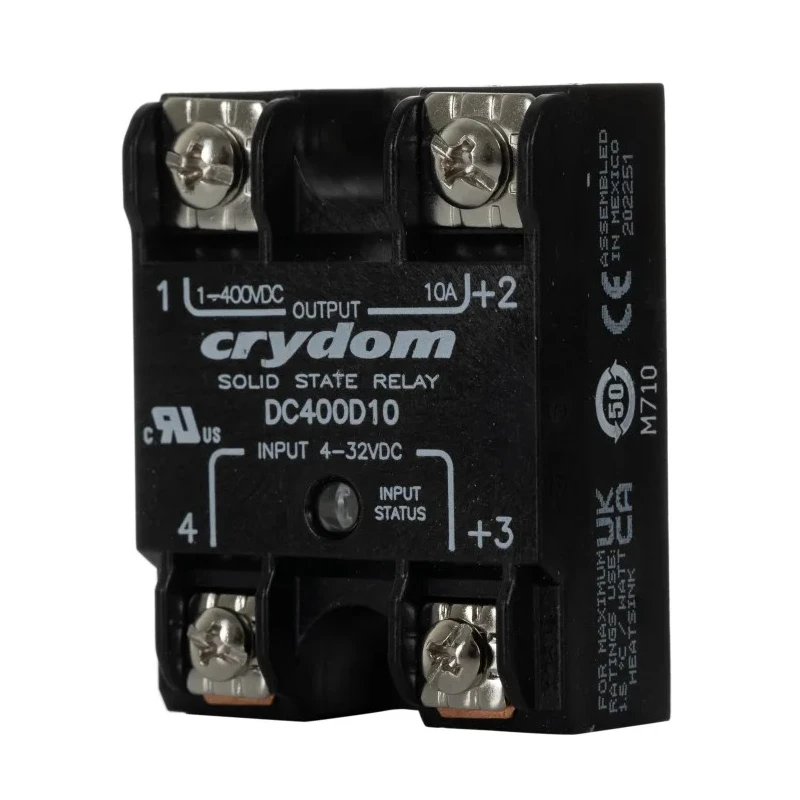

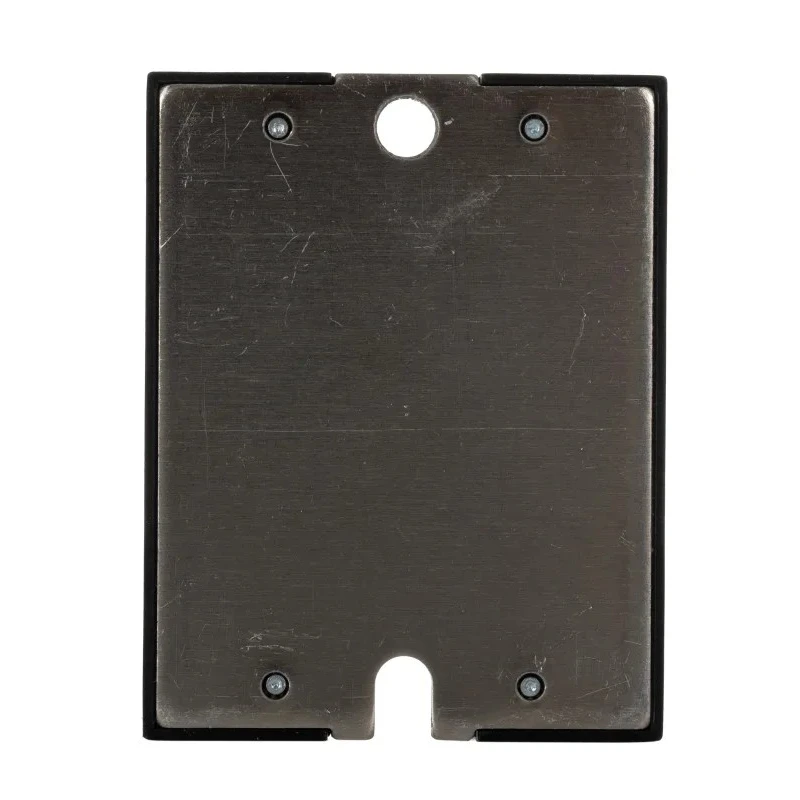

Crydom DC Series Solid State Relay 10 A Load Panel Mount 300 V dc Load 32V dc Control DC400D10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 26.8mm |
| Length | 57.3mm |
| Model | DC400D10 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | DC |
| Maximum Operating Temperature | 100°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | CE, RoHS, UL |
| Maximum Load Voltage | 300V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.4mA |
| On State Resistance | 15Ω |
Key Features
- Supports a maximum load current of 10 amperes for reliable circuit switching.
- Panel mount installation with screw terminals simplifies wiring and mounting.
- Operates within a wide temperature range from -40°C to 100°C for harsh environments.
- Features instantaneous switching for rapid response in control circuits.
- Compact dimensions measuring 57.3 mm length, 22.6 mm width, and 26.8 mm height to save panel space.
- Utilizes a MOSFET output type with low on-state resistance of 15 ohms ensuring efficient conduction.
- Complies with CE, RoHS and UL standards for safety and quality assurance.
- IP20 rated for protection against solid foreign objects while ensuring ventilation.
Product Description
Crydom DC400D10 DC Series Solid State Relay offers a robust solution for controlling DC loads up to 10 amperes with a maximum load voltage of 300 V dc. It is designed for panel mount applications featuring screw terminals that provide secure and easy installation.
This relay performs instantaneous switching with a fast turn-on time of 0.075 ms, making it suitable for time-sensitive industrial automation, lighting, and heating control applications. Its thermally conductive epoxy coating ensures efficient heat dissipation, maintaining performance in demanding environments with temperatures ranging from -40°C to 100°C.
Compact in size, the relay measures 57.3 mm in length, 22.6 mm in width, and 26.8 mm in height, optimizing space on control panels. The MOSFET output type with an on-state resistance of 15 ohms delivers reliable and energy-efficient operation. An off-state leakage current of only 0.4 mA minimizes energy consumption when the relay is off.
The DC400D10 relay meets international safety and quality standards including CE, RoHS, and UL certifications. Its IP20 rating protects against solid particles while allowing adequate ventilation.
This solid state relay is ideal for industrial, manufacturing, HVAC, commercial, and automation systems requiring precise and durable DC load switching. Supports maximum 10 A load current with 300 V dc rating. Panel mount type with screw terminal connection for easy installation.
Wide operating temperature range from -40°C to 100°C enhances reliability. Instantaneous switching function for fast response times. Compact dimensions conserve panel space in installations. MOSFET output with low on-state resistance ensures efficient switching.
Certified CE, RoHS, UL compliant for safety and quality assurance. IP20 rated to protect internal components from solid objects. Minimal off-state leakage current of 0.4 mA reduces power loss. Explore more Solid State Relays and electrical components in the Relays & Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current supported by this relay is 10 amperes.
It can handle a maximum load voltage of 300 V dc.
This model utilizes a MOSFET output type.
The relay features instantaneous switching, with a fast turn-on time of 0.075 ms.
The relay measures 57.3 mm in length, 22.6 mm in width, and 26.8 mm in height.
It operates within a temperature range from -40°C to 100°C.
This relay features screw terminal connections for easy installation.
The off-state leakage current is only 0.4 mA, which minimizes energy consumption when off.
It complies with CE, RoHS, and UL standards for safety and quality assurance.
The on-state resistance is 15 ohms, ensuring efficient conduction.
This solid state relay is suitable for industrial automation, lighting, and heating control applications.
The relay has an IP20 rating, protecting against solid foreign objects while allowing ventilation.
